Liquid Chromatograph, HPLC-3100

  1. Detector: Diode Array Detector, UV-VIS Detector
  2. Pump flow range: 0.001~10.000 ml/min
  3. Inject volume range: 0~100 µL
  4. Oven temp. range: Ambient + 5 ℃~85℃

Share the product

Description

 3100 HPLC System

3100 HPLC System is the higher and more reliable quality product with samples analysis.

System Configuration

  • Isocraticsystem
  • High-pressure binary gradientsystem
  • Quaternary low-pressure gradientsystem
  • ELITE-AAK/AAPamino acid analyical  system

Characteristics

1.Classic short stroke, serial, and multi-stage flow correction ensuring pump performance.

2.Concave surface holographic grating and intelligent power supply for deuterium lamp steadily improving detector functioning.

3.Self-developed  PID control measure bringing true t he accuracy of column oven temperature to 0.1℃.

4.The brand-new HPLC-3100SL auto -sampler capable of greatly improving instrument automaticity  and matching with a variety of HPLC systems.

5.Application of optoelectronic isolation and EMI protection ensuring stable communication.

6.All round upgraded Chromsoft workstation that is operator-friendly and promotes customer experience.

Specifications

Isocratic Systems Configurations



Item Description Quantity
1 HPLC-3100FP  High Pressure Constant Flow Pump 1 ea
2 HPLC-3100DT  UV/VIS Detector 1 ea
3 HPLC-3100SL Auto-Samper (alternative) 1 ea
4 HPLC-3100DAD  Diode Array Detector(DAD)(alternative) 1 ea
5 HPLC-7725SI Sample Injector 1 ea
6 HPLC-3100CO Column Oven (alternative) 1 ea
7 BEH HPLC Column 1 ea
8 HPLC-5100 WS Workstation 1 set
9 HPLC-M3100  System Manager 1 ea



Binary High Pressure Gradient Systems Configurations



Item Description Quantity
1 HPLC-3100FP High Pressure Constant Flow Pump 2 ea
2 HPLC-3100DT  UV/VIS Detector 1 ea
3 HPLC-3100SL  Auto-Samper (alternative) 1 ea
4 HPLC-3100DAD

Diode Array Detector(DAD)(alternative)

1 ea
5 HPLC-7725SI Sample Injector 1 ea
6 HPLC-15GM Gradient Mixer 1 ea
7 HPLC-3100CO Column Oven (alternative) 1 ea
8 BEH HPLC Column 1 ea
9 HPLC-5100 WS Workstation 1 set
10 HPLC-M3100  System Manager 1 ea



Quaternary Low Pressure Gradient Systems Configurations



Item Description Quantity
1 HPLC-P3100  Quaternary Low Pressure Constant Flow Pump 1 ea
2 HPLC-3100DT UV/VIS Detector 1 ea
3 HPLC-3100SL Auto-Samper (alternative) 1 ea
4 HPLC-3100DAD

Diode Array Detector(DAD)(alternative)

1 ea
5 HPLC-7725SISample Injector 1 ea
6 LU3100 Quaternary Low Pressure Unit 1 ea
7 HPLC-3100CO Column Oven (alternative) 1 ea
8 BEH HPLC Column 1 ea
9 HPLC-5100 WS Workstation 1 set
10 HPLC-M3100  System Manager (include Quaternary Degasser) 1 ea

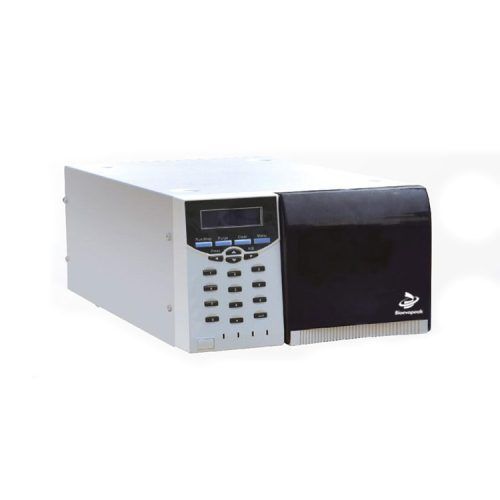

HPLC-3100FP High Pressure Constant Flow Pump

HPLC-3100FP  high-pressure constant flow pump is based on years of experience in the research and production as a high performance pump for HPLC system.



Flow Range 0.001~10.000 ml/min(step 0.001 ml/min)
Accuracy ≤ ±0.2%
Precision ≤0.06% RSD
Pressure Range 0-45 MPa
Power AC 220 V±10%, 50 Hz/80 W
Dimensions/Weight 420×300×175 mm (Length × Width × Height)/12 kg



HPLC-3100SL Auto-Samper (alternative)

The HPLC-3100SL auto-sampler is driven by high-precision stepper motor, which makes it easy and reliable. It can realize unattended automatic analysis, which can reduce the error and improve the efficiency.

HPLC-3100SL is can also be used with other instruments through independent software.



Inject volume range 0~100 µL
Number of vials 120
Precision <0.3% RSD(Full – loop)

<0.5% RSD(partial loop-fill)

<1.0% RSD(µL-pick-up)

Power AC220 V±10%, 50Hz/30 W
Dimensions/Weight 540×400×300 mm (Length × Width × Height) /23 kg



HPLC-3100COcolumn oven

HPLC-3100CO column oven is based on the research and production of ZW1201/230II column oven. It is a high performance column oven for HPLC system.

It can be used alone as a temperature control tool.



Temperature range Ambient + 5 ℃~85 ℃
Accuracy ±0.3 ℃
Precision ≤0.1 ℃
Power AC220 V±10%,50 Hz/130 W
Dimensions /Weight 420×300×120 mm (Length × Width × Height)/7 kg

HPLC-3100DT  UV/VIS Detector

HPLC-3100DT  UV-Vis detector is a single light source detector of deuterium lamp, mainly used in UV region. UV3100 series detector has four work modes: single wavelength, double wavelength, wavelength-time program and spectrum scanning.

UV3100 single wavelength detector

UV3110 double wavelength detector



Detector HPLC-3100DT  UV/VIS Detector



Wavelength Range 190nm-700nm
Precision ≤0.1nm
Accuracy ≤±1.0nm
Optical Bandwidth 8nm
Rise Time 0.0-4.9s
Linear ≥2.0AU(5%)
Noise ≤±0.5×10-5AU

≤±0.5×10-5AU(Dual Wavelength)

Drift ≤1×10-4AU/h
Minimum Detectable Concentration 4.0×10-9g/ml

(Naphthalene in methanol solution)

Scanning spectrogram



Yes
Time-wavelength program



Yes





HPLC-3100DAD Diode Array Detector

HPLC-3100DAD diode-array detector has advanced optical system differing from single wavelength UV-Vis detector. Light from lamp is focused first, and then passes through the cell. After part absorption, the light passes through a narrow slit to the grating, where it is diffracted into full wave band spectrum. At the photodiode array, measurement of the light occurs. The detector provides chromatograms at any wavelength, as well as spectra at any time. In this way, users obtain 3D spectrum.



Linear ≥2.0 AU
Wavelength Range 190~800 nm
Noise ≤±1.0×10-5 AU
Drift ≤2.0×10-4 AU/h
Power AC220 V±10%, 50 Hz/180 W
Dimensions/Weight 500×300×175 mm (Length × Width × Height) /18 kg
