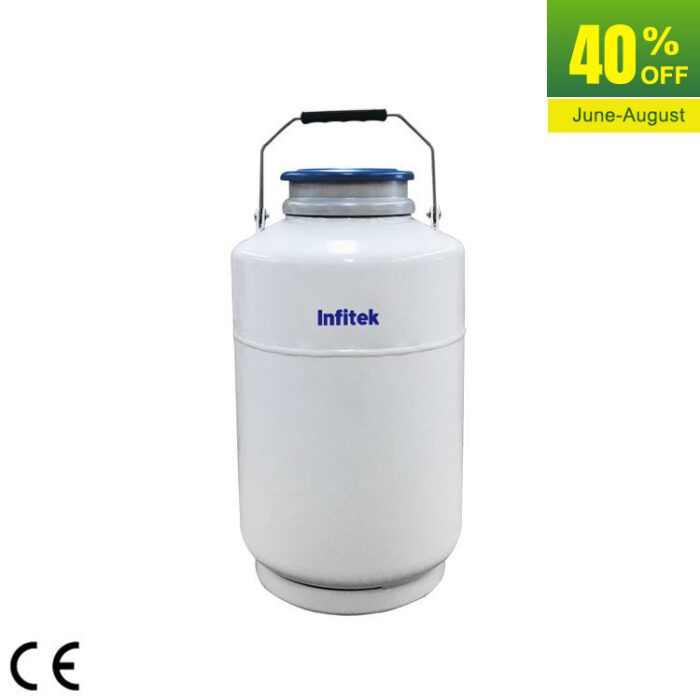

Laboratory Liquid Nitrogen Tank, LNC-L Series

  • LN2 Capacity:  10L-175L
  • Neck Opening:  125mm / 127mm / 216mm
  • Square pail storage
  • Designed for long-term storage

Share the product

Description

DESCRIPTION

DESCRIPTION

Product Overview

Laboratory series combines the advantages of low liquid nitrogen consumption and medium storage capacity. It has the advantages of light weight, less space occupation and high efficiency storage of large sample freezing. It can meet the different needs of laboratory professionals. All models include freeze shelves and PC freeze boxes to ensure easy storage of samples.

Product Features

  1. Durable aluminum structure;
  2. Matching freezing shelves and freezing boxes:
  3. Large capacity and low liquid nitrogen consumption;
  4. Optional safety lock cover structure to prevent othersfrom unlocking without authorization:
  5. Optional liquid level monitoring system;
  6. Optional transport vehicle;

Easy to Find Your Sample

  1. Designed for Jong-term storage, it is easy to take and place samples;
  2. The marked freezing shelves and freezing boxes are convenient for quickly andeffectively finding the required samples;
  3. It can be equipped with liquid level monitor to monitor the liquid level height in realtime and send out low level sound and light alarm.
LNC-L-Series-Liquid-Nitrogen-Tank Optional safety lock cover structure
LNC-L-Series-Liquid-Nitrogen-Tank (2) Durable aluminum structure

SPECIFICATIONS

SPECIFICATIONS

LN2 Capacity: 10-50 Liters

Model LNC-L10-125 LNC-L30-125 LNC-L35-125 LNC-L47-127 LNC-L50-125
Performance
LN2 Capacity (L) 10 30 35 47 50
Weight Empty (kg) 6.3 13 14.5 18.2 17.3
Weight Full (kg) 15.1 38.9 43.2 60.9 62.4
Neck Opening (mm) 125 125 125 127 125
Outer Diameter (mm) 300 462 462 508 462
Overall Height (mm) 625 725 765 740 830
Static Evaporation Rate (L/day) 0.42 0.35 0.36 0.36 0.45
Static Holding Time (day) 24 90 97 130 110
Maximum Storage Capacity
Racks 2mL Freezing Tube Number of Racks (ea) 1 6 6 6(round) 6
Rack Dimension (mm) 82×84 82×84 82×84 105×100 82×84
Vial Boxes Dimension (mm) 76×76 76×76 76×76 98 76×76
Boxes per Rack (ea) 4 4 5 5 6
1.2; 1.8&2ml Vials (Internally Threaded) 100 600 750 1100 900
Racks 5mL Freezing Tube Number of Racks (ea)
Rack Dimension (mm)
Vial Boxes Dimension (mm)
Boxes per Rack (ea)
1.2; 1.8&2ml Vials (Internally Threaded)
Optional Accessories
Lockable Lid Optional Optional Optional Optional Optional
PU Bag(Protective jacket) Optional Optional Optional Optional Optional
Smart Cap Optional Optional Optional Optional Optional
Roller Base Optional Optional Optional Optional

LN2 Capacity: 65-175 Liters

Model LNC-L65-216 LNC-L95-216 LNC-L115-216 LNC-L145-216 LNC-L175-216
Performance
LN2 Capacity (L) 65 95 115 145 175
Weight Empty (kg) 40 43 47 52 57
Weight Full (kg) 107 120 140 170 198.5
Neck Opening (mm) 216 216 216 216 216
Outer Diameter (mm) 681 681 681 681 681
Overall Height (mm) 735 800 870 970 1085
Static Evaporation Rate (L/day) 0.78 0.94 0.94 0.94 0.95
Static Holding Time (day) 83 101 122 154 184
Maximum Storage Capacity
Racks 2mL Freezing Tube Number of Racks (ea) 6 6 6 6 6
Rack Dimension (mm) 142×144 142×144 142×144 142×144 142×144
Vial Boxes Dimension (mm) 134×134 134×134 134×134 134×134 134×134
Boxes per Rack (ea) 4 5 6 8 10
1.2; 1.8&2ml Vials (Internally Threaded) 2400 3000 3600 4800 6000
Racks 5mL Freezing Tube Number of Racks (ea) 6 6 6 6 6
Rack Dimension (mm) 142×144 142×144 142×144 142×144 142×144
Vial Boxes Dimension (mm) 134×134 134×134 134×134 134×134 134×134
Boxes per Rack (ea) 2 2 3 4 5
1.2; 1.8&2ml Vials (Internally Threaded) 972 972 1458 1944 2430
Optional Accessories
Lockable Lid Optional Optional Optional Optional Optional
PU Bag(Protective jacket)
Smart Cap Optional Optional Optional Optional Optional
Roller Base Optional Optional Optional Optional Optional

ACCESSORIES

ACCESSORIES

Liquid-Nitrogen-Tank-ACCESSORIES

PACKING

PACKING

Liquid-Nitrogen-Tank-PACKAGE-2
