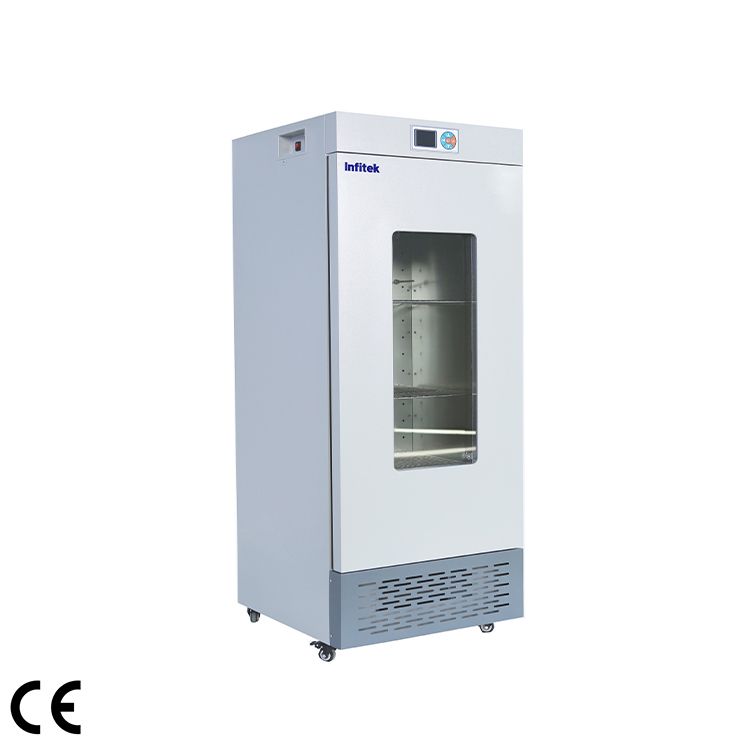

Mould Incubator, ICB-MZ Series

  1. Capacity: 150L, 250L, 350L, 450L
  2. Temperature range: 4~60 ℃
  3. Optional φ25, 50, 80, 100
  4. Safety device: Leakage protector/Over-temperature alarm
  5. The top of incubator is equipped with an LED light and a UV disinfection lamp

Share the product

Category:

Description

It is widely used in mold screening, microbial tissue cell culture, fungal spore culture, food and drug, preservation experiments, seed germination and other test needs.

Features

Energy-saving

  • The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
  • Automatically adjust the control parameters according to the ambient temperature and load to achieve the good heating method and reduce energy consumption.

Intelligent control

  • High definition LCD display, real-time display of parameters, self-locking function of screen, simple and convenient operation.
  • Menu-type operation interface, simple and convenient operation, can quickly set temperature and time parameters.
  • Running function: fixed value running, timing running; The screen will display “END” with a beeping reminder after the running time is completed.

Internal circulation system

  • Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
  • The circulation system adopts the back suction and the bottom vertical air supply mode.
  • The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.

Dedicated sheet metal processing

  • The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
  • The inner chamberis made of high-quality brushed stainless steel, with strong corrosion resistance.

Humanized design

  • Built in observation window to make the objects in the chamber clear at a glance.
  • The anti-scalding design of the door handle makes it easy to open and close the door.

Safety

  • Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
  • With over temperature control of visible & audible alarm
  • Self-diagnosis function: display fault information, which is convenient for judging the fault point..

Optional

  • Independent temperature limiting controller
  • Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)

2. Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)

Specifications

Model ICB-M150Z ICB-M250Z ICB-M350Z ICB-M450Z
Capacity(L) 150 250 350 450
Circulation Forced air convection
Dimension

(W*D*H)

Internal (mm) 505*380*800 550*450*1050 550*550*1150 700*550*1200
External (mm) 630*600*1450 680*660*1710 680*770*1870 830*750*1860
Temperature Range (℃) 4~60
Fluctuation (℃) ±0.5
Resolution (℃) 0.1
Uniformity (℃) ±1
Sensor PT100
Controller PID
Display LCD
Timer(min) 1-9999
Material Internal  Stainless steel
External  Electro-galvanized steel with antimicrobial powder coating
Shelves 3 4
Test Hole (mm) Optional φ25,50,80,100
Safety Device Leakage protector/Over- temperature alarm
Electricity Voltage/Frequency

(V/Hz)

220/50
Consumption (W) 900 1000 1100 1600
N.W./G.W. (kg) 120 140 170 200
Shipping Dimension (W*D*H) (mm) 730*730*1640 800*760*1930 870*750*1930 900*1150*2080
Optional 1.Independent temperature limiting controller

2.Intelligent LCD procedure temperature controller(Optional USB,RS485/232 and printer)
