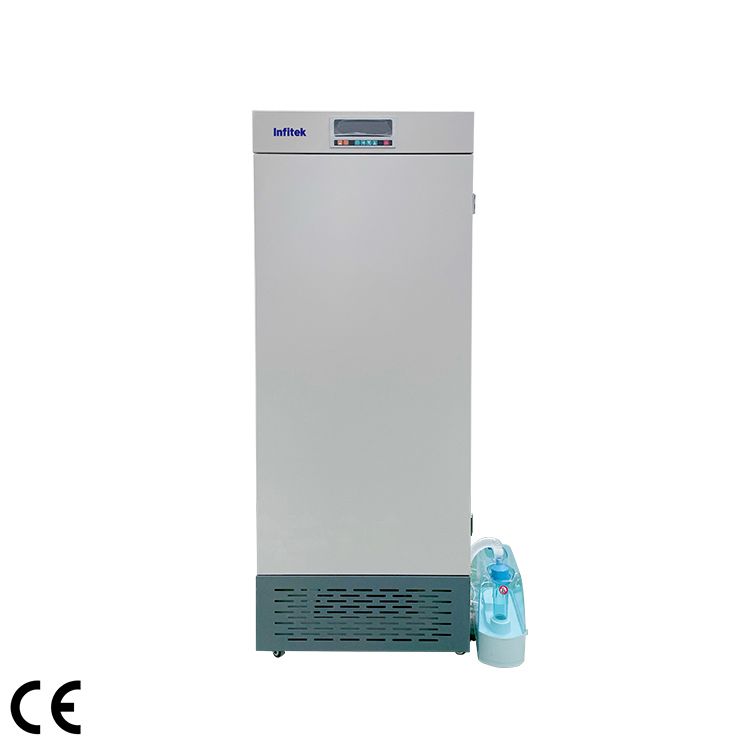

Climate Chamber, ICB-CC250H/CC350H

  1. Capacity: 250L, 350L
  2. Humidity & Illumination & Temp control
  3. Temperature range: With lighting: 10~60℃; Without lighting: 4~60℃
  4. Test hole: Optional φ25, 50, 80mm
  5. Safety device: Leakage protector / Over- temp. alarm

Share the product



It is widely used in microbial tissue and cell culture, seed germination, seedling raising test, plant cultivation, insect and small animal feeding, etc. Different environmental and climatic conditions can be accurately simulated.

Energy saving
Imported compressor, safe and reliable.
Defrosting function: three-stage electric heating defrosting program control.
Adopts energy-saving LED cold light source;The light intensity is adjustable in six levels to meet plants with different light needs.
Intelligent control of humidification method instrument.

Intelligent control
Large high efinition LCD display,with intelligent microcomputer control, parameter real-time display.
The intelligent temperature control system can continuously control temperature, light level and running time.

Internal circulation system
Back suction and bottom forced convection system.
Adopts high-quality fan and large impeller fan, the machine has higher ventilation efficiency and better temperature uniformity.
The shelf is laser hollowed out with round holes for better ventilation and better temperature uniformity.

Dedicated sheet metal processing
The shelf can be disassembled and can be freely adjusted up and down, with a minimum spacing of 30mm.
The inner chamber is made of high-quality brushed stainless steel, with strong corrosion resistance.

Humanized design
Built-in observation window to make the objects in the chamber clear at a glance.
Equipped with leakage protection device to ensure the safety of operators and other equipment in the laboratory.
Digital independent temperature limiter control sound and light alarm system.
Self-diagnosis function: display fault information, which is convenient for judging the fault point.

Test hole, internal socket, Digital independent temperature limiter
、Programmable temperature controller (Optional USB,RS485/232 and built-in printer)、Spare shelf


Model ICB-CC250H ICB-CC350H
Capacity(L) 250 350
Circulation Mode Forced  convection
Dimension(W*D*H) Internal (mm) 560*420*1050 560*530*1200
External (mm) 660*660*1700 670*730*1880
Temperature Range (℃) With lighting:10~50 ; Without lighting:4~50
Fluctuation (℃) ±1
Resolution (℃) 0.1
Uniformity (℃) ±1 ±2
Sensor PT100
Humidity Range 50~90%RH
Stability ±5 ~ ±7 %
Method Internal
Sensor High precision anti-condensation
Illumination(Lx) 0~12000 0~15000
Illumination Control 6-level relative illuminance control
Controller PID
Display Large high efinition LCD
Timer 1~9999min (Optional 30*segments*100cycles)
Material Internal  Stainless steel
External Cold rolled steel electrostatic spraying exterior
Shelves 3
Test Hole (Optional)  Φ 25,50,80,100mm
Internal Socket Optional
Refrigerant R134a (CFC free)
Defrosting Mode Automatic
Safety Device Visible& Audible over temperaure, over humidity, water shortage  alarm ;leakage protector
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 1500 2150
N.W./G.W. (kg) 120 / 128 155 / 260
Package Dimension(W*D*H) (mm) 810*770*1900 900*940*2080
Optional Test hole, internal socket, Digital independent temperature limiter
、Programable temperature controller (Optional USB,RS485/232 and  built-in printer)、Spare shelf
