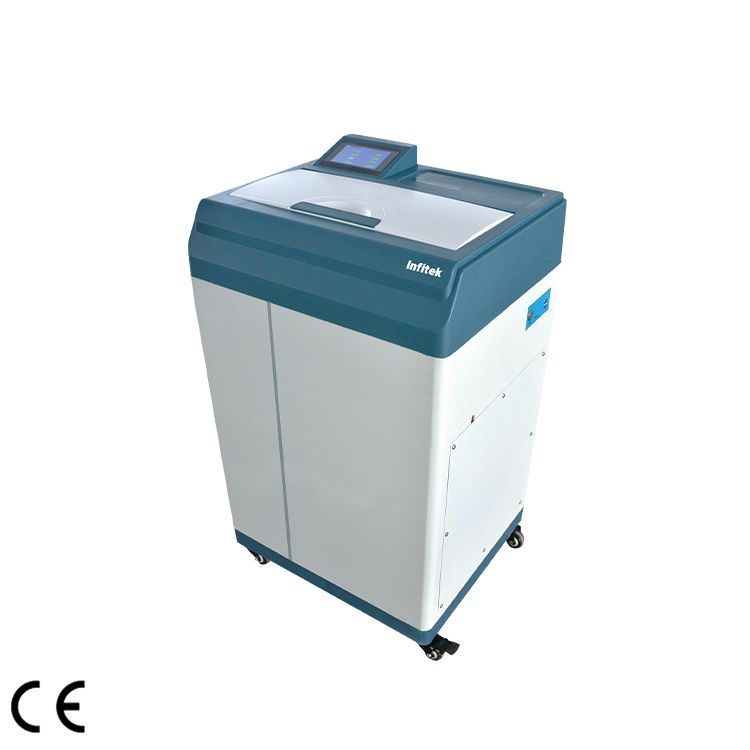

Plasma Thawers, PTM-1DY (Dry type)

Complete recording of information and traceability of quality control data

• Complete documentation of information and traceability of quality control data
• Real time recording of water temperature and slurry temperature and automatic storage, exporting data through USB interface for quality monitoring.
• Equipped with a traceability system, it can record the temperature data of the box in real time, set the hospital name and operator number, and accurately save the operation records.
• Add password lock screen protection to the screen operation interface: supports password verification unlocking, unauthorized personnel cannot enter the parameter settings and operation interface, full traceability of operation permissions, strengthens equipment operation security and management standardization.
• Real time display of temperature/time dynamic change curves, with over temperature power-off and low water level protection functions. It has upper and lower limit alarm function and can set upper and lower limit alarm parameters.
• Simulating thawing temperature changes: By analyzing the data of simulated thawing temperature changes, the time of each thawing stage can be calibrated to achieve the goal of managing the quality of the melted plasma.
• Supports six custom thawing modes, and customers can independently set the thawing method according to their needs. To adapt to the thawing and thawing of frozen plasma, platelets, and blood products of different volumes.

A well-established and rigorous temperature control system

• Adopting IPS high-definition touch display system, the circuit control is more precise, intuitive, and reliable; From heating to precise control of the pipeline system, the temperature is always controlled within the safe thawing range.

Efficient, safe, and reliable heating system

• Adopting PTC heating system, the heating speed is fast and stable, and it takes 10-12 minutes to heat from room temperature to 37 ℃.
• Adopting a water electricity separation design, the heating device is completely isolated from water to avoid equipment failure and personnel injury caused by electric leakage.

Fully automatic water management and ease of operation

• Equipped with automatic water intake and drainage functions, the studio does not require a floor drain; After thawing, the blood bag is automatically controlled to dry, simplifying the operation.
• Support one click automatic cleaning. After cleaning is completed, the program will automatically heat up and enter standby mode, without the need for personnel to be on duty.

Freely adjustable thawing dividers

• The thawing compartment for placing plasma can be freely adjusted according to the size of the plasma bag, greatly facilitating clinical use.
• Detachable water tank, convenient for regular deep cleaning and disinfection of the equipment box, avoiding bacterial growth and protecting the safety of slurry melting.

Timed on/off function for user convenience

Specification
