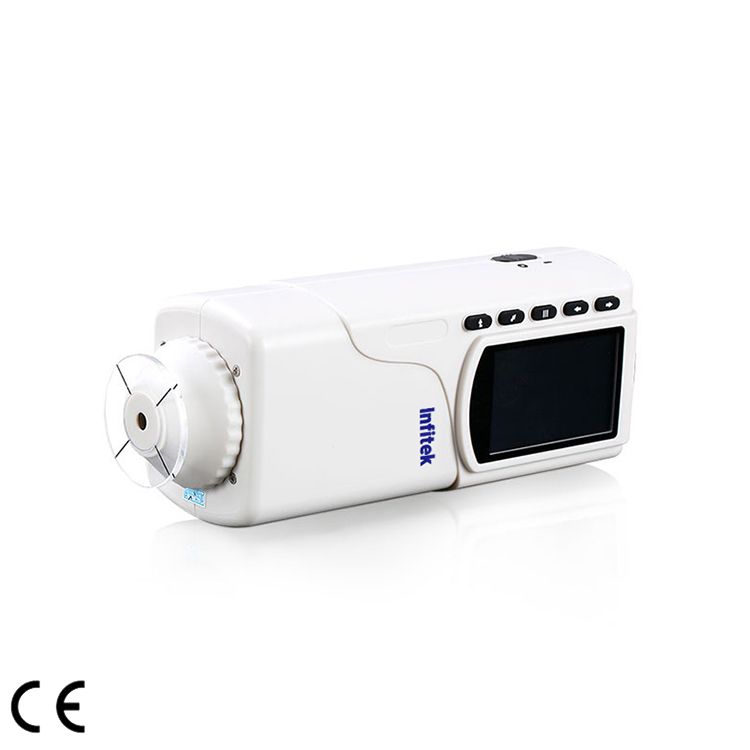

Portable Colorimeter, Precision and Cheaper, SP-CLR110

  1. Fruits, fabrics, paper, plastic parts, construction materials
  2. Measuring Aperture: Φ4mm
  3. Detector: Silicon photoelectric diode
  4. Locating: Illuminating Locating/ Cross Locating
  5. Light Source Device: LED blue light excitation

Share the product

Description

Colorimeter

1. Built-in white plate parameters. No need to calibrate each time which realizes rapid measurement.

2. Double Locating: Illuminating locating and precise cross locating.

3. Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.

4. New Integrating Sphere Optical Path Design: Eliminating the stray light of the main optical path and auxiliary optical path. Possessing the highest measurement stability and   precision.

5.  4mm Measuring Aperture.

6. Equipped with the rechargeable high-capacity Li-ion battery. No need to purchase a battery repeatedly.

7. Configures CQCS3 software. Connects PC computer to realize more functions.

8. Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.

9. Hand-head structure: small and convenient; makes the measurement easier.

10. Exquisite appearance: adopts traditional and fashionable aesthetic designs.

11. Spending huge sums on high-end mold. Product consistency approaches 100%.

12. High-cost performance: large output, good quality, cheap products.

Specifications

Model SP-CLR110
Illuminating/Viewing Geometry 8/d
Measuring Aperture Φ4mm
Detector Silicon photoelectric diode
Locating Illuminating Locating/Cross Locating
Measurement End Face Large stable end-face and small concave-convex end-face
Color Space CIEL*a*b*C*h* CIEL*a*b*

CIEXYZ

Color Difference Formula △E*ab △L*a*b* △E*C*h*
Light Source D65
Light Source Device LED blue light excitation
Errors Between Each Equipment ≤0.80ΔE*ab
Storage 100pcs standards 20000pcs samples
Repeatability Standard deviation within ΔE*ab 0.08

Average of 30 measurements of standard white plate

Language English/Chinese
Weight 450g
Dimension 205×67×80 mm
Power source Rechargeable lithium-ion battery 3.7V@3200mAh
Lamp Life 5 years, more than 1.6 million measurements
Charging Time 8 hours–100% electricity
PC Software CQCS3 Software
Printer (optional) Miniature thermal printer
