- Food, medicine, textile, non-woven fabrics, denim, dyeing and printing, color steel plate, paper, plastic, chemical, coating, ink, building material industries, etc.
- Light and cross dual positioning function
- Measuring caliber: Φ4mm
- Measurement time: 1.5 seconds

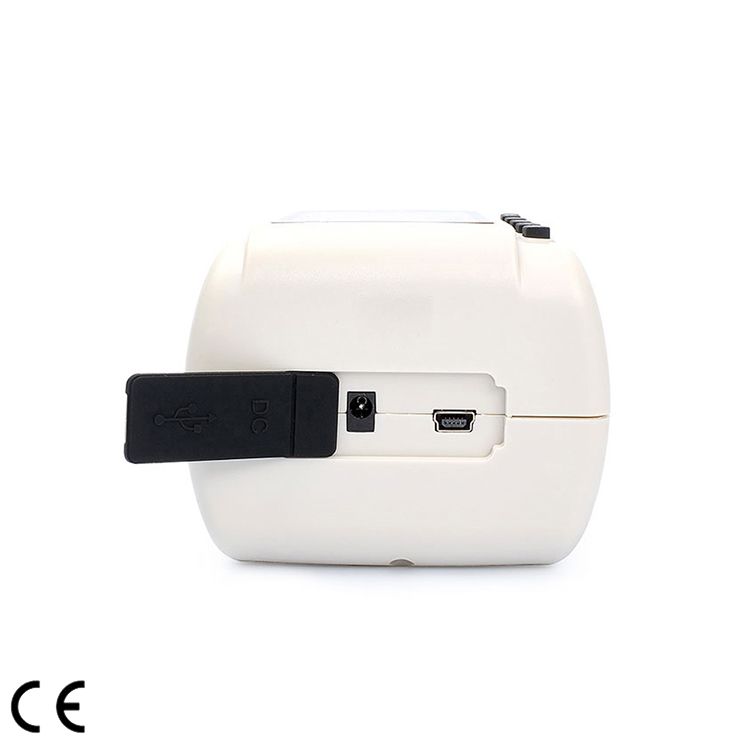

Portable Photoelectric Colorimeter, SP-CLR10QC
Description
Colorimeter
1. High performance, but low price;
2. Higher short-term repeatability accuracy: OE≤0.03;
3. Light and cross dual positioning function;
4. Equipped with rechargeable lithium-ion battery, it has no need to repeatedly purchase batteries;
5. Φ4mm measuring caliber, portable structure, suitable for more measuring occasions;
6. White mainstream shape, color box fast packaging, convenient transportation;
7. Built-in whiteboard parameters, no need for black and whiteboard correction.
8. No need to connect the computer, and it can be used immediately after starting up, making the measurement simpler!
SP-CLR10QC economical practical color difference instrument humanized interface design allows you to easily learn to operate the light and cross dual positioning work
| Model | SP-CLR10QC | |
| Size | 205 x67x80mm | |
| Weight | approx. 400g (battery included) | |
| Standards compliant | CIE No.15, GB/T 3978 | |
| Battery | Rechargeable lithium ion battery 3.7V@3200 mAh | |
| Inductor | silicon photodiode | |
| Lighting source | life span of 5 years is more than 1.6 million measurements | |
| Measuring caliber | Φ4mm | |
| Display screen | TFT true color 2.8in @(16 | |
| Color space | CIE lab | |
| Interface | USB power supply only | |
| Observer Angle | CIE 10° standard observer | |
| Storage data | 100 standard samples, 10000 samples | |
| Operating temperature range | 0-40*C(32-104 “F) | |
| Display | chromaticity value, chromaticity value/graph, pass/fail results, color bias | |
| Storage Temperature Range | -20~50°C(-4~122 F) | |
| Measurement time | 1.5 seconds | |
| PC software | no software | |
| Repeatability | OE* AB0.03 (average of 30 times) | |
| Standard accessories | power adapter, manual, wristband, 4 platform measuring caliber | |
| Difference between stations | AE* AB0.4 (average value of BCRA series 12 color plates) | |
| Optional accessories | micro printer, powder test box | |
| Category | Title | File type/size | Download |
| Brochure | Brochure-Colorimeter | PDF(666 KB) | download |
