- Plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic
- Measuring aperture: Φ8mmflat aperture; Φ4mmtip aperture
- Measuring Time: 0.4s
- Errors between each instrument: within Delta E*ab 0.2

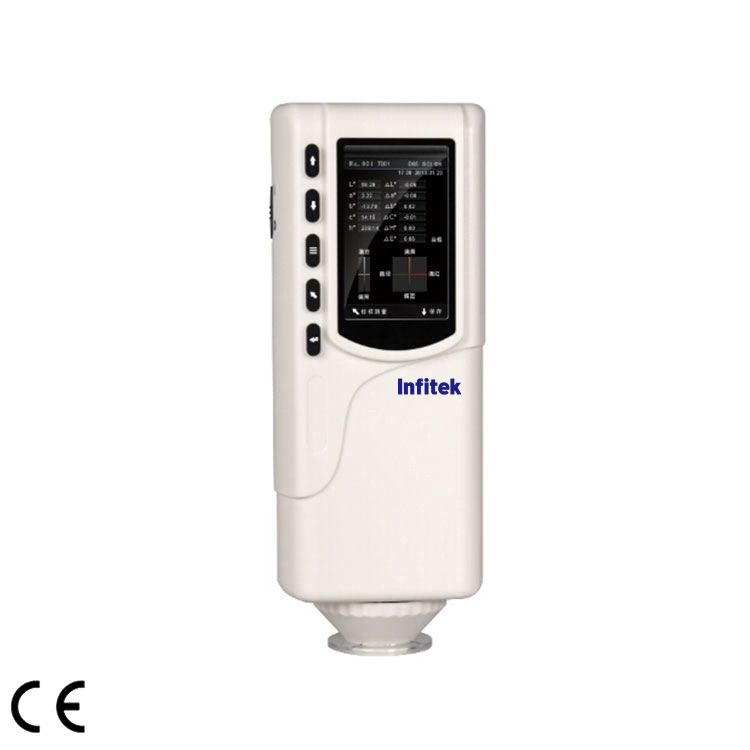

Portable Spectrocolorimeter, SP-CLR60CP
Description
Colorimeter
1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, and extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, ensuring more stable measurement;
8. Measurement data can pass national metrology authentication.
Application Industry
SP-CLR60CP spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic, industries, scientific research institutes, schools and laboratories. It can precisely measure kinds of color indexes in various color spaces and easy to use with powerful functions. The instrument is equipped with high-end color management software which can be connected to PC to achieve more extension functions.
Specifications
| Model | SP-CLR60CP |
| Illuminating/Viewing Geometry | 8°/ d |
| Light Source | LED Light |
| Sensor | silicon photodiode array |
| Measuring aperture | Φ8mmflat aperture; Φ4mmtip aperture |
| Color Space | CE LAB，XYZ，LCh，CIE RGB，CIE LUV |
| Color Difference Formula | ΔE* ab, ΔE( h) , ΔE* uv,ΔE* 94, ΔE*cmc ( 2: 1) , ΔE*cmc ( 1: 1) , ΔE* 00 |
| Other Chromaticity Data | WI ( E313，CI E, AATCC，Hunt er )，YI ( D1925，313)，Color Fastness, Staining Fastness, J PC79，BFD( 1. 5:1)，FMCI I |
| Observer | CI E 10° |
| Illuminant | D65，A，C，D50，F2，F6，F7，F8，F10，F11，F12 |
| Display Data | Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, |
| Measuring Time | 0.4s |
| Repeatability | ΔE* ab 0. 03 (Average of 30 measurements of the standard white plate within 5s) |
| Errors between each instrument | within Delta E*ab 0.2 |
| Dimension | 205*67*80mm |
| Packaging Size | 370*170*320mm |
| Net/ Gross Weight | 1.5/ 2.5kg |
| Battery | rechargeable lithium-ion battery 3. 7V @ 3200mAh |
| Lamp Life | 5 years, more than 1.6 million measurements |
| Screen | TFT 2.8 inch（16: 9） |
| Interface | USB/ RS- 232 |
| Storage | 100 Standards, 20000 Samples |
| Operating Temperature | 0~40℃（32~104°F） |
| Storage temperature | -20~50℃（-4~122°F） |
| PC software | CQCS3 software |
| Optional accessory | miniature thermal printer, powder test box |
