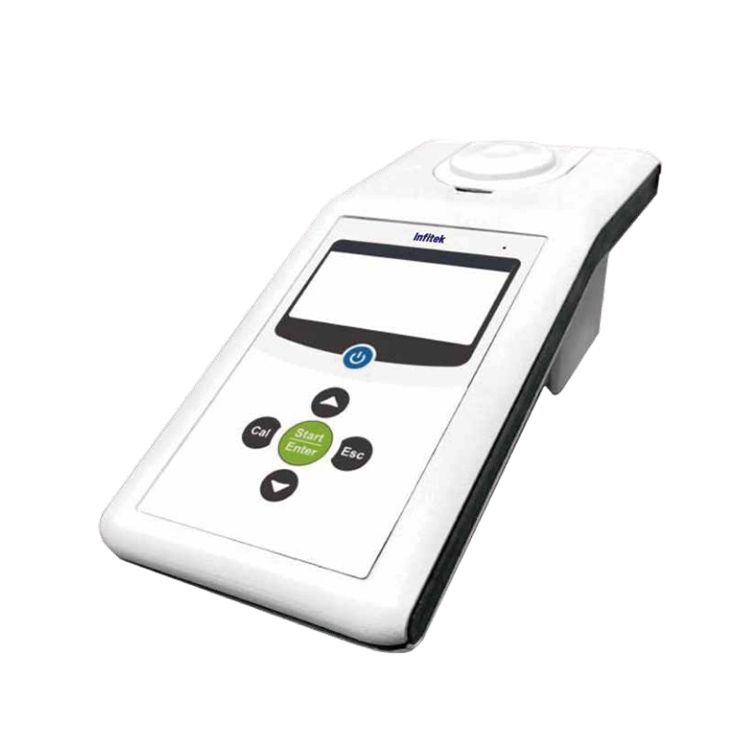

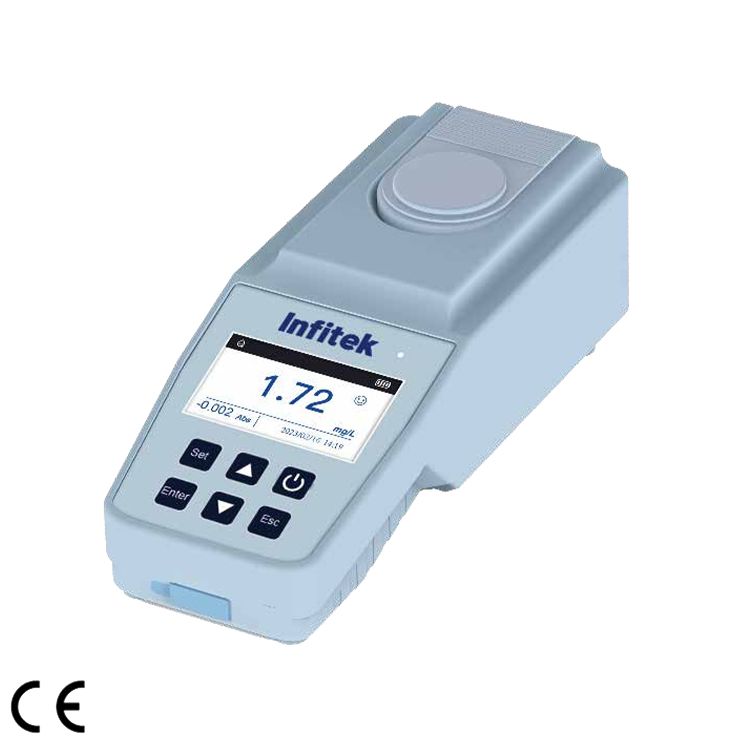

Portable Residual Chlorine / Total Chlorine Meter, RCTC-Y1030
Description
- Adopts a 4.3-inch color LCD screen with an intuitive GUI graphic navigation and a thin-film keypad panel design. The keys are thin, soft, and have good protective properties, capable of withstanding over 1 million presses. The keys are abundant, intuitive, simple to understand, and
- guide users to operate easily.
- The instrument is small and lightweight, can be held with one hand, and the concentration can be read directly without conversion, and the measurement results are more accurate.
- Equipped with large-capacity storage, capable of storing more than 5,000 experimental data records, allowing users to freely view them to view freely.
- Unique high-precision filter system makes the instrument more stable and measurement accuracy higher.
- Built-in large-capacity lithium battery with a perfect charging system, the battery life can reach up to 10 hours.
- Uses a cold light source with narrow-band interference technology, with a light source lifespan of up to 100,000 hours.
- Equipped with the new T5L ultra-small chip, the instrument is more sensitive and has a larger memory capacity of up to 500M.
- The instrument supports 9-point calibration curves. Users can create their own curves based on measurement needs, meeting the requirements of different customers.
- Paired with Lab-yy pre-made reagents, eliminating the step of reagent preparation, saving customers’ operation time, reducing the technical requirements of customer experiments, and greatly improving work efficiency.
Host Parameters
| Product Model | RCTC-Y1030 |
| Test items | Residual chlorine/Total chlorine |
| Indication Error | ≤8% |
| Repeatability | ≤±3% |
| Optical Stability | ≤0.001A/10min |
| Light Source Lifespan | 100,000 hours |
| Measurement Time | 5 minutes |
| Self-built Curve | Supported |
| Data Storage | Can store more than 5,000 records |
| Colorimetric Method | Colorimetric tube |
| Display Screen | 4.3-inch color LCD screen |
| Instrument Weight | 1 kg |
| Ambient Temperature | 5~40℃ |
| Ambient Humidity | Relative humidity ≤85% (non-condensing) |
| Rated Voltage | DC-5V |
| Rated Power | 10W |
Measurement Item Table
| Measurement Item | Measurement Range | Measurement Method |
| Residual Chlorine | 0.01-1.5mg/L | DPD Spectrophotometry |
| Total Chlorine | 0.01-3mg/L |
