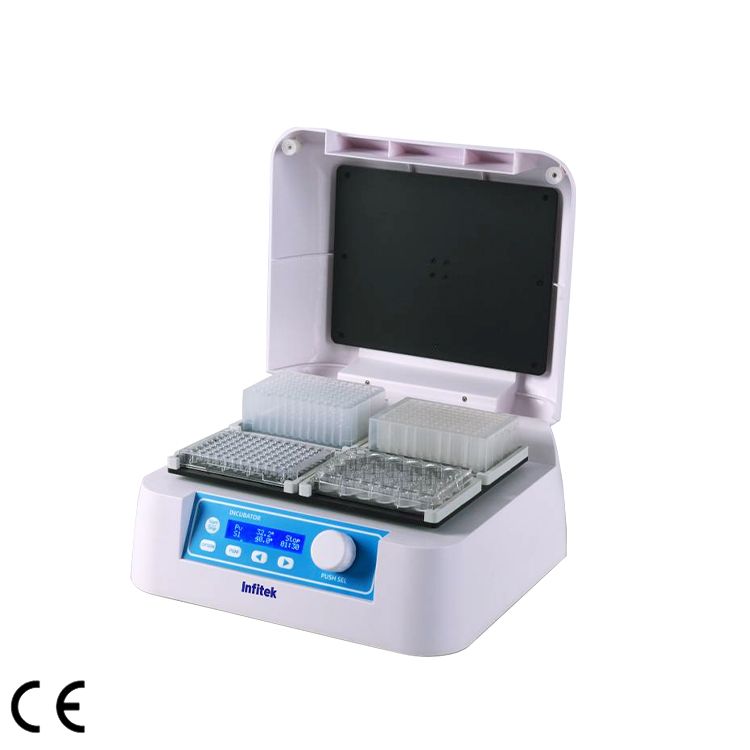

Microplate Incubator, DBI-PR80-4

  1. Automatic preheating function.
  2. Automatic power recovery function.
  3. Temperature calibration function.

Share the product

Description

DESCRIPTION

DESCRIPTION

Description:
DBI-PR80-4 thermo shaker for microplates is a multipurpose thermostatic shaker controlled by brushless DC motor and PID intelligent temperature control technology. which PID fuzzy control technology can accurate to ensure that the temperature control precision and automatically adjust the heating rate, reduce waiting time. DBI-PR80-4 combines constant temperature and oscillation perfectly together, greatly shorten the experimental operation time, which is the ideal automation tool for samples hatching, catalytic reaction process of preserving, blending, save and etc.

Features:
1.Easy to set up and use, all information real-time display and showing setup operation, convenient to observe equipment running status.
2.Support standard microplates and deep well plates.
3.Brushless DC motor, low noise, small interference, free maintenance.
4.Automatic preheating function.
5.Automatic power recovery function.
6.Temperature calibration function.
7.Built-in software and hardware over temperature protection device, will use more reliable.

SPECIFICATIONS

SPECIFICATIONS

Model DBI-PR80-4
Temp. display range 0℃~80℃
Temp. control range RT+5℃~80℃
Time range 1min ~ 99h59min/∞
Temp. accuracy ≤±0.5℃
Display accuracy 0.1℃
Temp. uniformity ≤±0.5℃
Speed range 200~1350rpm
Orbit 3mm
Heating time ≤10min(from 25℃ to 80℃)
Auto preheating Yes
Auto resume to run Yes
Capacity 4 Microplates or Deepwell plates
Power consumption 300W
Electricity 220V or 110V AC /50-60HZ
Fuse 250V 3A  Ф5×20
External dimension(mm)(W*D*H) 320x340x200
Net weight 9.5kg

Accessories & Package

Accessories & Package

accessories-package(1
