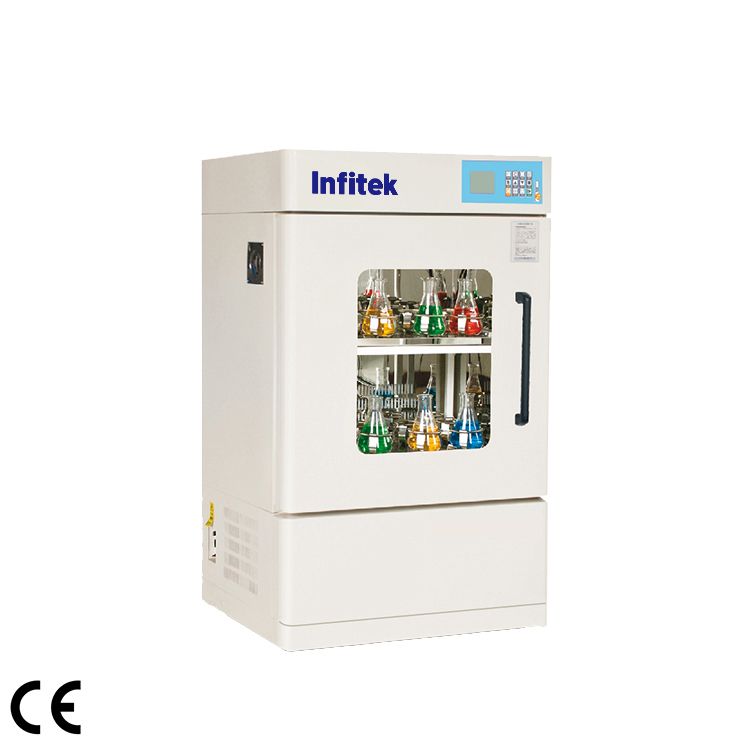

Shaking incubator, ICB-S1102C, ICB-S2102C, ICB-S1102CD, ICB-S2102CD

  1. Capacity:175L/218L
  2. Convolution shaking
  3. Multidimensional drive
  4. P.I.D microprocessor chip control
  5. LCD display

Share the product

Category:

Description

Applications

The oscillator (commonly known as a shaker) is one of the main equipment for microbial culture. Select special motor, temperature control, speed measurement main components are imported, widely used in biology, medicine, pharmaceutical food, environmental protection and agricultural scientific research.

Features

Intelligent control

  • Large high efinition LCD display,with intelligent PID control, parameter real-time display.
  • Automatic locking and alarm for speed deviation, and alarm for temperature deviation.
  • Reservation timingswitch function.
  • Three operation modes: forward rotation, reverse rotation, forward and reverse alternately.
  • It has a multi-stage speed, temperature, and time control system, which allows a variety of different speed, temperature, and time experiment modes to be set once.

Internal circulation system

  • Silent fan design, forcedair convection and unique air duct design ensure good temperature uniformity.
  • High efficiency and energy saving compressor, stable temperature control and low power consumption.

Dedicated sheet metal processing

  • WithABS cabinet, mirror stainless steel lining and chamber components, inclined humanized control panel.

Humanized design

  • Environmentally friendly refrigerant, CFC free.
  • The unique multi-dimensional drive system makes the machine run smoothly, stably, durable and reliable.
  • Built-in observation window to make the objects in the chamber clear at a glance.
  • The anti-scalding design of the door handle makes it easy to open and close the door.

Safety

  • With over temperature control of visible& audible alarm system.
  • The unique dynamic balance design ensures smooth operation, starts at ultra-low speed, and automatically locks when the speed is out of control.
  • Fault self-diagnosis function,auto-stop operation when door is opened and safety alarm.

Optional:

Fixture、7 inches touch screen (USB data storage)、UV sterilization device、Illumination

Model ICB-S1102C ICB-S2102C ICB-S1102CD ICB-S2102CD
Control mode P.I.D microprocessor chip
Convection mode Forced convection
Shake mode Convolution
Display LCD display
Drive mode Multidimensional drive
System of USB data download and analysis Yes
Control system Multiple programmable mode(Temp.,speed,time)
Cyclotron frequency range(rpm/min) 0;20-350(To do static culture)
Cyclotron frequency sensitivity(rpm) ±1
Orbit diameter(mm) Φ26
Max. capacity 100ml×60

or 250ml×38

or 500ml×22

or 1000ml×16

100ml×68

or 250ml×50

or 500ml×32

or 1000ml×18

Standard capacity 250ml×24 250ml×48
Size of platform(mm) 500×360 485×485
Timing range(h) 0-9999h/min(Any time,continuous duty)
Temperature range(℃) Ambient+5°C~65°C(No refrigeration) 4°C~65°C

(Refrigeration)

Ambient+5°C~65°C(No refrigeration) 4°C~65°C

(Refrigeration)

Temperature regulate sensitivity(℃) ±0.1
Temperature uniformity(℃) ±0.5(37℃)
Temperature fluctuation(℃) ≤0.1(37℃)
Number of platform Two
Outside dimension(W*D*H)(mm) 700×580×1280 700×710×1320
Capacity(L) 175 218
Power(W) 600 850 600 850
Electricity AC220±10% ,50Hz
Net weight(kg) 160 180 180 200
Gross weight(kg) 210 220 230 240
Other functions Ultra-low speed start, Adjustable start speed,over-speed auto-prtection,Watch dog timer,Parameters Storage,Encryption parameters,Electricity incoming recovery,Refrigeration unit overload protection,Sound and light alarm when upper and lower over-temperature,Automatically stop when opening the door (optional),Function of lighting and UV disinfection
