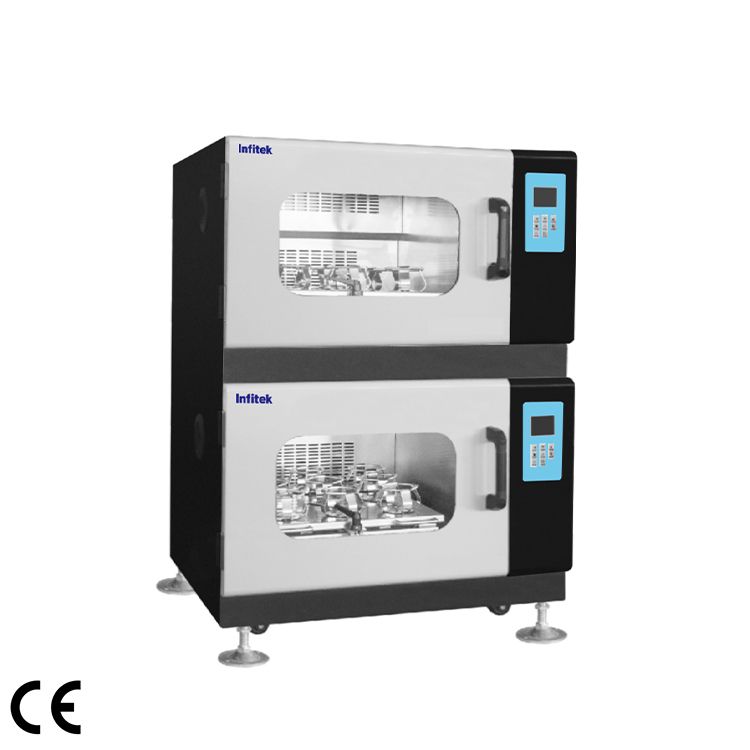

The large capacity stacked thermostatic oscillator is a combination of one, two or three layers, which occupies a small area and provides users with a large space for use. Each layer can be controlled independently, and each layer can be operated simultaneously at different temperature and rotation speed or any layer can be operated according to needs.
1. Pull out rail platform. It can easily pull the platform out to load or unload fixtures and then push it back and lock, which is fast and convenient to operation.
2. Three stackable layers structure. Each layer can be independently controlled. Temperature, speed and time can be set alone. Users can run any layer according to need.
3. Note: stackable incubator shaker would be optional high temperature incubator shaker (temperature up to 80 ℃); Humidifying incubator shaker.
4. High pressure water rinses the bottom of the chamber and platform. Simple cleaning, fast and efficient.
5. Advanced USB data automatic record, download and processing system. It has large storage, and automatic recording & saving in the full test processing. The data could be directly downloaded by USB or automatically downloaded by wireless.
6. Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
7. High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.
8. Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
9. Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
10. Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
11. Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.
12. High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
13. High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,
14. Unique drive system. It makes the machine running smoothly, stably, durably and reliably.
15. Open door protection. When the door opens, the machine stops running to protect the safety of the operator.
16. LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.
17. Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.
18. Function of encrypted and locked operating parameters. It can avoid human errors.
19. Continuously running or timing. Shakers can display the set time and time remaining
20. Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
21. Clock and date can be displayed (touch screen only).
