- Capacity：580L
- Convolution /Reciprocate shaking
- Multidimensional /Track drive
- P.I.D microprocessor chip control
- LCD display

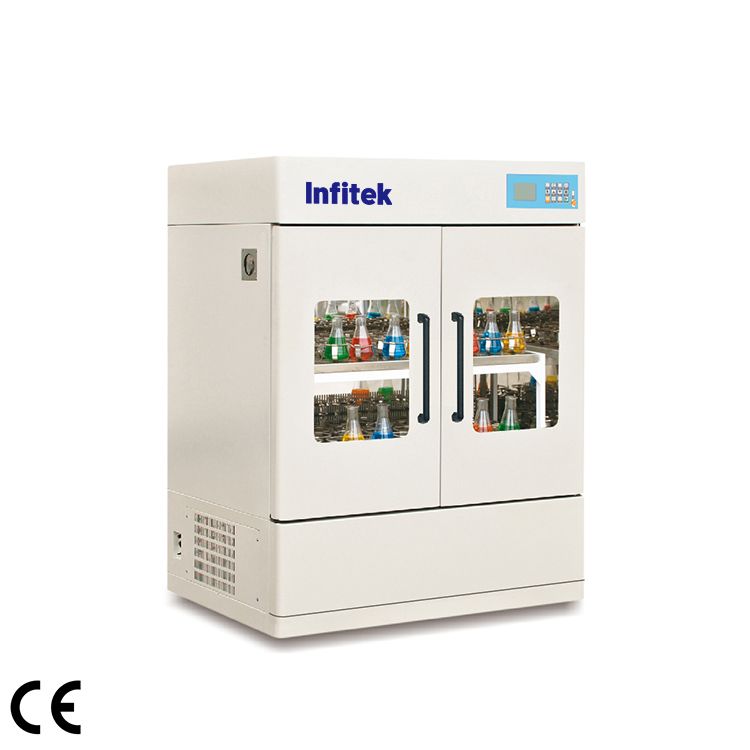

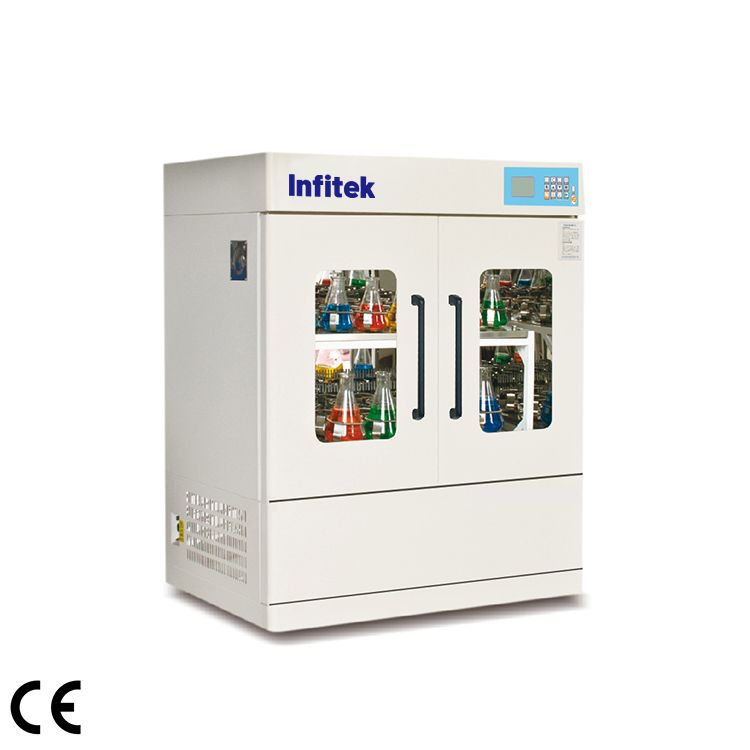

Shaking incubator, Vertical type, ICB-S1112B, ICB-S2112B, ICB-SL1112F, ICB-SL2112F
Description
Vertical Constant Temperature Shaking incubator has a USB data storage system. Multi-stage speed, temperature, time control system. It has ultra-low speed running function and unique dynamic balance design to ensure smooth running.
Features
1. Advanced USB data automatic record, download and processing system. It has large storage, and automatic recording & saving in the full test processing. The data could be directly downloaded by USB or automatically downloaded by wireless.
2. Automatic analyzing, listing table, charting and printing on downloaded dates. It can trace back to the whole process of experiment in order to optimize the reaction conditions and choose the test method to confirm the experiment process.
3. High quality servo motor. Speed control accurately, noiseless, durable and high efficiency.
4. Multi-steps rotate speed, temperature and time control systems. Different rotational speed, temperature and time can be set at one time; operation model can be automatically converted during operation.
5. Slow accelerate and decelerate design. Slowly start and stop, prevent bacteria or cells to shear force is too large and damage.
6. Advantaged air duct design. Air duct design contributes to high-precision temperature uniformity.
7. Automatic defrosting function. It makes shakers operating stably in low temperature for a long time.
8. High-precision speed control. PID feedback control, the motor speed is stable and accurate, the accuracy of ± 1RPM
9. High-precision temperature control. PID feedback control, the measurement accuracy of 0.1 °C. Audible and visual alarm, when the measured temperature deviation from the set value ≥ ± 3 °C,
10. Unique drive system. It makes the machine running smoothly, stably, durably and reliably.
11. LCD display with bright illumination. Running parameters and statues are clearly displayed on the LCD screen for easy visualization and programming.
12. Memorized and protected operating parameters. Unexpected power outage, the original set-up process can be automatically resumed.
13. Function of encrypted and locked operating parameters. It can avoid human errors.
14. Continuously running or timing. Shakers can display the set time and time remaining
15. Unique slow-start design. Preventing the shake-flask liquid splashing caused by a sudden start, effectively guaranteeing the accuracy of quantitative experiments
16. Clock and date can be displayed (touch screen only).
Specifications
| Model | ICB-S1112B | ICB-S2112B | ICB-SL1112F | ICB-SL2112F | |||
| Control mode | P.I.D microprocessor chip | ||||||
| Convection mode | Forced convection | ||||||
| Shake mode | Convolution | Reciprocate | |||||
| Display | LCD display | ||||||
| Drive mode | Multidimensional drive | Track drive | |||||
| System of USB data download and analysis | Yes | ||||||
| Control system | Multiple programmable mode(Temp.,speed,time) | ||||||
| Cyclotron frequency range(rpm/min) | 0；20-280(To do static culture) | 0；20-260(To do static culture)
|
|||||
| Cyclotron frequency sensitivity(rpm) | ±1 | ||||||
| Orbit diameter(mm) | Φ26 | 0-50 | |||||
| Max. capacity | 100ml×140 250ml×90 or500ml×72 or 1000ml×42 | ||||||
| Standard Capacity | 250ml×45 500ml×36 | ||||||
| Size of platform(mm) | 950×550 | ||||||
| Timing range(h) | 0-9999h/min(Any time,continuous duty) | ||||||
| Temperature range(℃） | Ambient +5°C~65°C（No refrigeration） | 4°C~65°C（Refrigeration） | Ambient +5°C~65°C（No refrigeration） | 4°C~65°C（Refrigeration） | |||
| Temperature regulate sensitivity(℃） | ±0.1 | ||||||
| Temperature uniformity(℃) | ±0.5（37℃） | ||||||
| Temperature fluctuation(℃) | ≤0.1（37℃） | ||||||
| Number of platform | Two | ||||||
| Outside dimension（W*D*H)（mm） | 1200×800×1630 | ||||||
| Capacity（L) | 580 | ||||||
| Power（W) | 1100 | 1400 | 1100 | 1400 | |||
| Electricity | AC220±10% , 50Hz | ||||||
| Net weight(kg) | 500 | 520 | 500 | 520 | |||
| Gross weight(kg) | 580 | 600 | 580 | 600 | |||
| Other functions | Ultra-low speed start, Adjustable start speed，Overspeed auto-prtection，Watch dog timer，Parameters Storage，Encryption parameters，Electricity incoming recovery，Refrigeration unit overload protection，Sound and light alarm when upper and lower overtemperature，Automatically stop when opening the door (optional)，Function of lighting and UV disinfection | ||||||
