- Ice making capacity(kg/24h):20, 30
- Condensing mode: Air cooling
- Water of influent: Automatic water tap
- 304 stainless steel

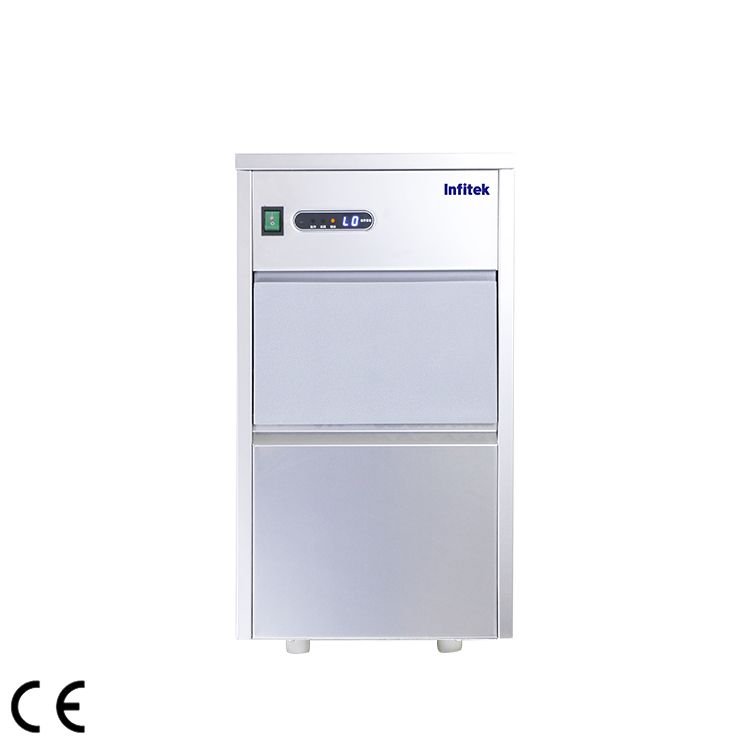

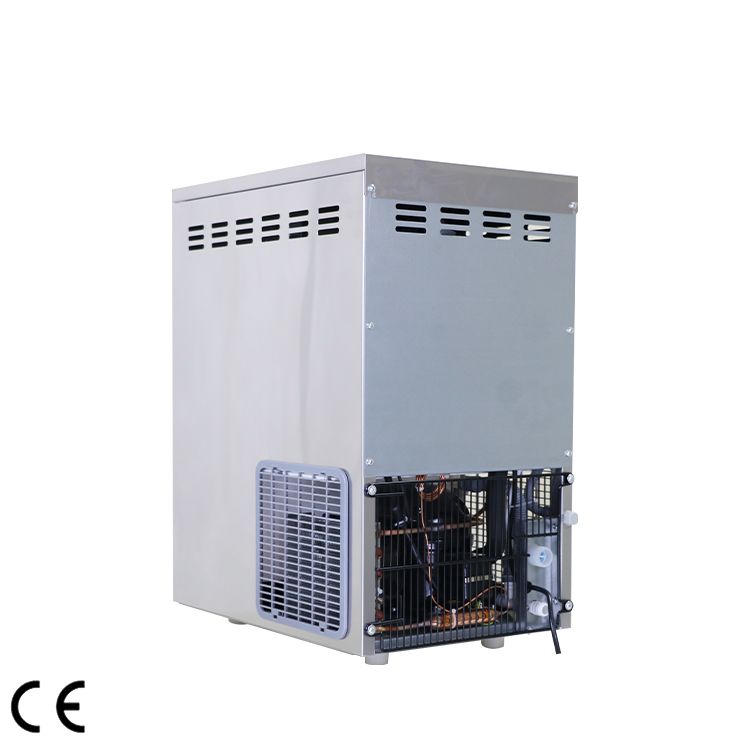

Automatic Snowflake Ice Maker, IM-FK20, IM-FK30
Description
Application
Schools, hospitals, research institutes, enterprises and other types of bio-chemical laboratories, etc.
Feature
- High grade stainless steel is used which are anti-corrosive and durable. The compact structure is simple and space-saving.
- The cabinet are filled with fluoride-free foam thermal cover featuringgood insulation effect. The inner liner is food grade plastic. They are both energy-saving and environment-friendly.
- Major parts and components have passed relevant safety certifications. The product has stable quality and long service life.
- The ice-making process is fully computer controlled, using imported computer chips to make control reliable and operation easily.
- The advanced technologies and imported accessories makes noise low, operation smooth and reliable.The ventilation holes and fans are deployed to ensure that motor of reducer can work reliably with high ambient temperature.
- The patented technology of line of chip ice-making chamber separated from the evaporator which provides the high cooling efficiency and large ice-making capacity.
- The screw extrusion hob-style ice-making type makes a compact structure,and automatic separation of ice from water. The optimal design of skate blade makes the shape of ice small and practical.
- The unique float-type water tank water inflow system ensures that there is no residual water.Ice clearance process not needed and no water wasted, saving water and energy.
- Fully automatic running with ice full display, water shortage display, in operation display and malfunction warning display, etc. for shutdown protection. They will stop automatically in case of ice full or water shortage and start automatically when ice is not full or water supply is resumed.
- Flake ice cools more quickly than other ice forms,which can infiltrate into narrow space,featuring fast cooling speed, good ice bathing effect.
- Long-term performance tests and safety electrical tests will be performed before delivery, ensuring excellent performance of the product.
Specifications
Model | IM-FK20 | IM-FK30 |
Ice Making Capacity(kg/24h) | 20 | 30 |
Ice Storage(kg) | 10 | 10 |
Ice Type | Irregular fine-grained | |
Cooling Mode | Forced-Air Cooling | |
Refrigerant | R290(CFC Free) | |
Electricity | AC110 / 220V±10%, 50 / 60Hz | |
Consumption (W) | 280 | 300 |
Instrument Dimension | 330*480*605 | 330*480*605 |
(W*D*H) (mm) | ||
Package Dimension (W*D*H)(mm) | 640*490*770 | 640*490*770 |
G.W.(kg) | 42 |
Note: The daily production capacity of Ice Maker is the experimental result when the room temperature is 15°C and the water temperature is 5°C. Since the Ice Maker is greatly affected by the environment, the above production capacity is for reference only.
