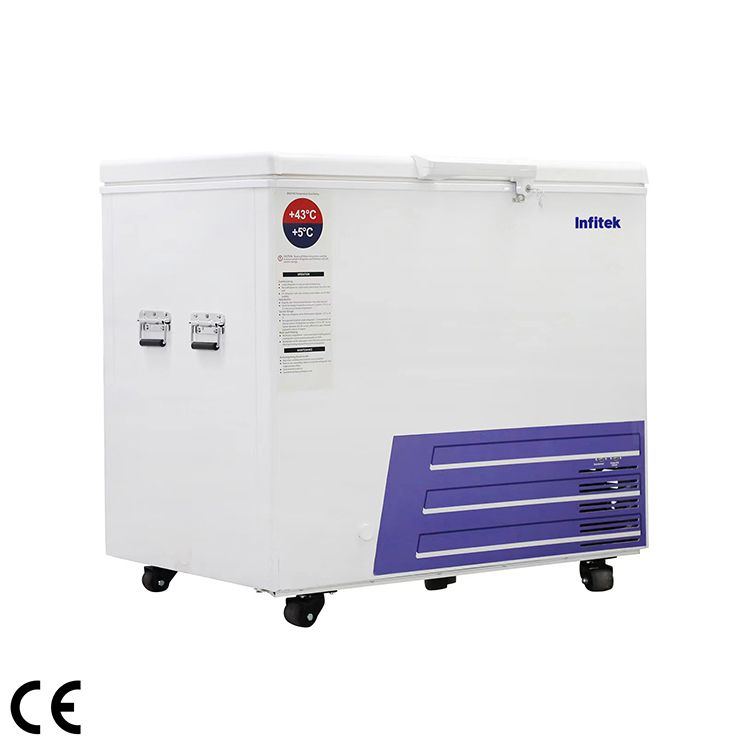

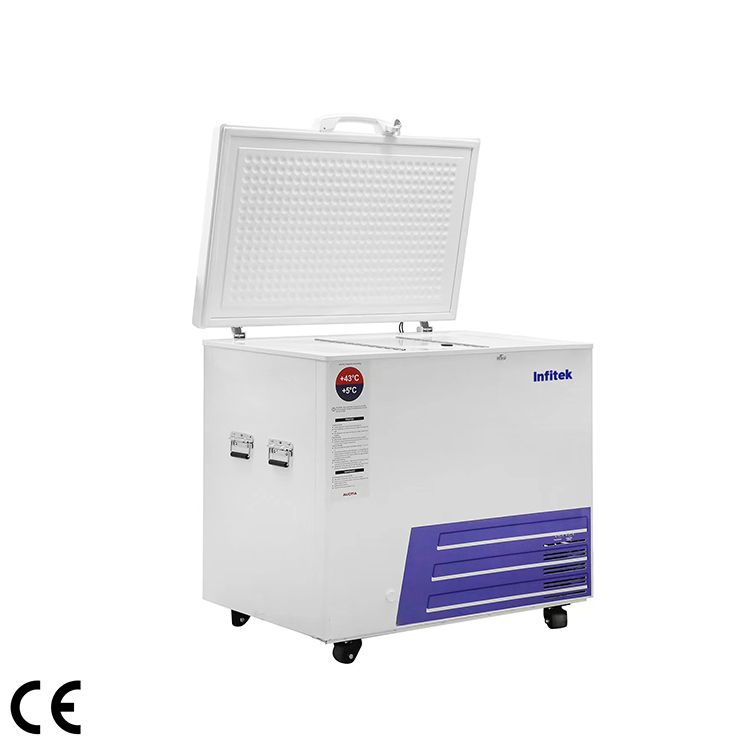

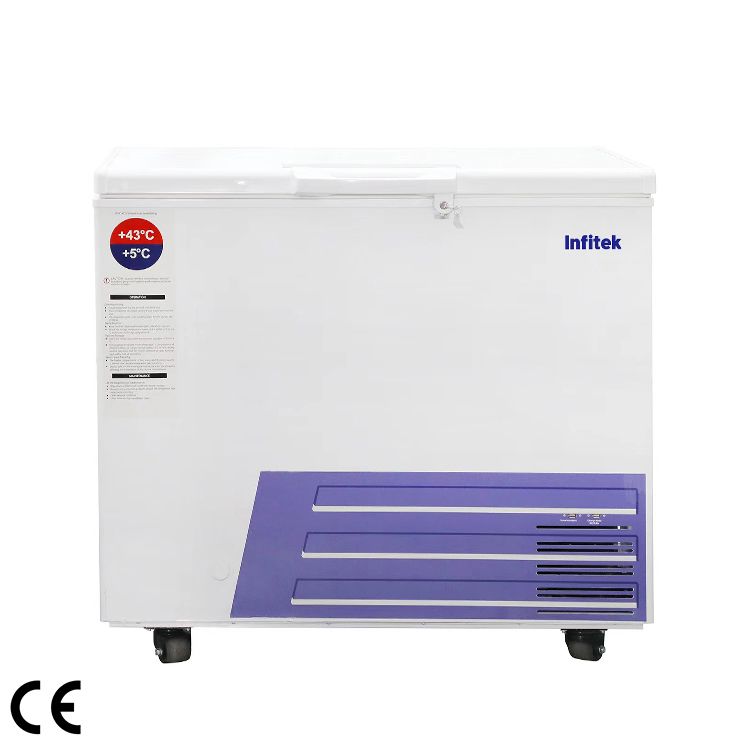

Solar Medicine Refrigerator, CRF10-S97

  1. Vaccine Working Temperature:2~8℃
  2. Freezer Working Temperature:≤-10℃
  3. Humanized design
  4. Multiple alarm functions
  5. Solar direct drive,environmental protection
  6. Wide climate design
  7. 30 days temperature record

Share the product

Description

Application
Solar vaccine refrigerator and freezer is used in vaccine storage, medicines and ice packs, suitable for hospitals, CDC, and scientific research institutions, etc.

Advantages
Solar direct drive, green and environmental protection.
Microcomputer control, solar temperature display, resolution is 0.1℃.
30 days temperature record.
Wide climate design, suitable for 5~43℃ ambient temperature.
Over 180 hours of holdover at 43℃ ambient temperature.

Safety control system
Multiple alarm functions: high and low temperature alarm, sensor malfunction alarm , low-battery alarm.
Two alarm modes: Sound buzzer alarm, digital flashing alarm.

Humanized design
Safety door lock design to prevent arbitrary opening.
USB charging function.
Aluminum inner tank design, a drainage hole at the bottom, easy to clean.
With baskets, easy to use.
Low noise.

Product characteristic curve

solar refrigerator1
solar refrigerator2

Specifications

Model CRF10-S97






Technical Data

Type Chest Type
Vaccine Gross Capacity 59L
Vaccine Storage Capacity 48L
Freezer Gross Capacity 38L
Holdover Time 180h
Water-pack Freezing Capacity 2kg/24h
Water-pack Storage Capacity 10kg
Cooling Type Direct Cooling
Door Foaming Door
Refrigerant R290




Temperature Control

Vaccine Working Temperature 2~8℃
Freezer Working Temperature ≤-10℃
Ambient Temperature 5℃~43℃
Controller Microprocessor
Temperature setting Accuracy 0.1
Display LED Digital Display


Electrical Data

Voltage DC 18-28V
Power 190W
Current 8A
Power Consumption (Stable Running) 1.7kW·h/24h
Power Consumption (Cool Down Test) 2kW·h/24h
Dimensions Exterior Dimension(W*D*H) 1050*750*975mm
Package Dimension(W*D*H) 1127*781*1075mm
Weight Net Weight 100kg
Gross Weight 130kg




Functions

High /Low Alarm Function Yes
Sensor Error Alarm Yes
Low Battery Alarm Yes
Freeze-Protection Classification A
Data Interface USB
Charging Interface 5V
Accessories Vaccine Basket Qty. 2
