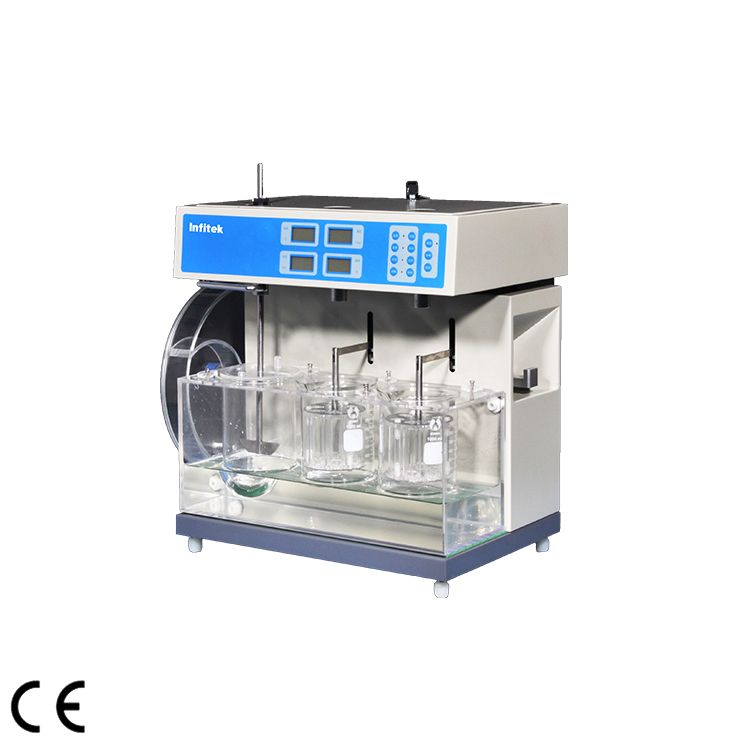

Intelligent Four-function Tablet Tester, TABT-4

  • Dissolving quantity: 3PCS
  • Temperature control range: (20~40)℃±0.3℃
  • Speed adjustable range: (20~200)rpm±2rpm

Share the product


Intelligent four-function tablet tester is used to test the hardness, friability, disintegration time limit and dissolution rate; it’s a very ideal multi-purpose drug test instrument.


  • Smart, automatic control, automatic detection, automatic diagnosis and automatic alarm.
  • Magnetic water pump circulating water flow uniform heat system is adopted, bath temperature is uniform.
  • Automatic temperature control and high temperature control precision.
  • Automatic time control and automatic timing shutdown.
  • Parameters can be preset arbitrarily; preset value and real-time value can be displayed by time division.
  • The three dissolution cups and three rods are in a single row; the head part can be turned over manually, it’s steady and flexible.
  • Imported SUS316L stainless steel is adopted for dissolution rotation baskets and paddle rods, etc.
  • Two-path disintegration operates at the same time, automatic timing shutdown.
  • Automatic control of friability and high control precision for cylinder rotation speed and number of turns.
  • Hardness high-precision pressure sensor, digital display of hardness value.
  • Continuous measurement of tablet hardness value, manual tablet feeding, motor control and automatic compression.
  • Automatic display, automatic latching, automatic reset and automatic cyclic test


Dissolving quantity 3PCS
Temperature control range (20~40)℃±0.3℃
Speed adjustable range  (20~200)rpm±2rpm
Timing range  (1~900)min±0.5min
Swing of paddle rod  ±0.5mm
Swing of rotation basket  ±1.0mm
Number of baskets 2
Reciprocation frequency (30~32)times/min
Reciprocation stroke  (55±2)mm
Number of cylinders 1
Cylinder size inner diameter 286mm, depth39mm
Sliding height  156mm
Cylinder speed  (25±1)times/min
Number of cylinder turns  (100±1)turns
Hardness range  (2~199)N±1N
Diameter range  ( 3~40)mm
Power supply   220V/50Hz/600W
Overall dimensions  (57×52×47)cm3
