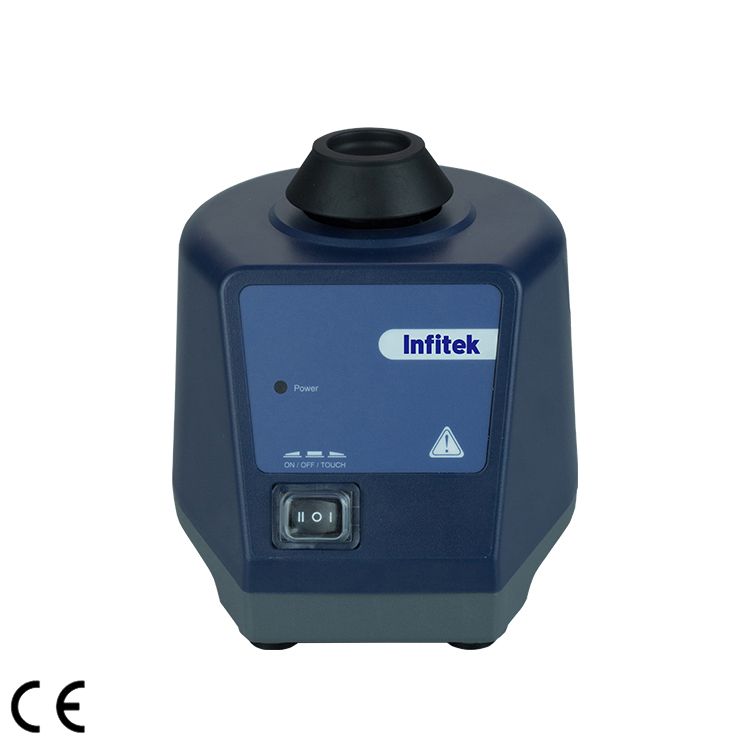

Vortex Mixer, Fixed Speed, VMX-F

  1. Speed range: 2500rpm
  2. Run type: Continuous

Share the product

Categories: ,


Vortex Mixer

The Vortex Mixers are ideal instruments for mixing liquid components in tubes, resuspension of cells, using an eccentric mechanism. They are widely used in biological and chemical analysis applications.

VMX-F Vortex Mixer Features:
1.Touch operation or continuous mode
2.Fixed Speed 3000rpm
3.Used for various mixing applications with optional adapters
4.Specially designed vacuum suction feet for body stability
5.Robust aluminum-cast construction


Model VMX-F (Fixed speed)
Voltage 110-120V/220-230V,50/60Hz
Power 60W
Mixing motion Orbital
Orbital diameter 4mm
Motor type Shaded pole motor
Motor rating input 58W
Motor rating output 10W
Speed range 3000rpm
Run type Continuous
Dimension[W×H×D] 127×130×160mm
Weight 3.5kg
Permissible ambient temperature 5-40℃
Permissible relative humidity 80%RH
Protection class IP21
