- Temperature Range(℃）:Ambient+5~90
- Temperature display accuracy:0.1℃ or 0.01℃
- Display Resolution(mm3):0.1
- Pump Flow L/min:6
- Top Opening Dimen(mm):Φ150

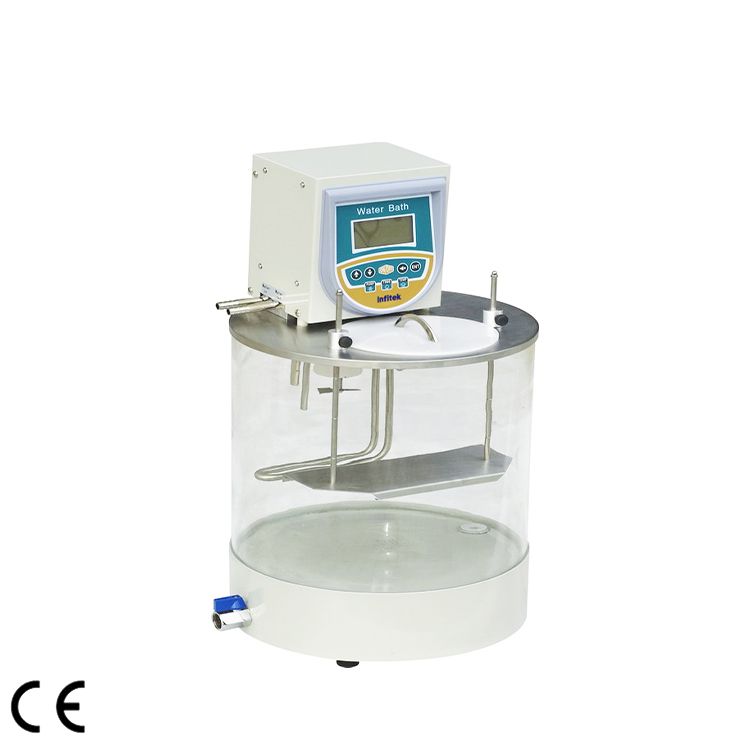

Water Bath, CTB-30
Description
CTB series constant temperature water bath is equipped with a microprocessor intelligent control system.With circulating pump, it can let the heated liquid flow off from the tank and thus establish a second constant-temperature field.
Applications
It is widely used in research institutes, universities, corporate quality control departments and industrial sectors relating to petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing and chemical analysis etc. It can provide for users a working environment where cold or heat was controlled accordingly. As a result, the temperature is kept evenly.
Features
1.Optional volatility ±0.05℃, ±0.1℃.
2.Two-color (red and green) LED display with dual window.
3.Available is a large-screen LCD display.It is quick to set the
4.temperature by touching the soft keys and easy to operate.
5.The Micro-Computer can amend deviation of temperature measurements.
6.Temperature display accuracy 0.1℃ or 0.01℃.
7.Fitted with a ultra-temperature alarm system.
Specifications
| Model | CTB-30 |
| TemperatureRange ℃ | Ambient+5~90 |
| Temperature Stability℃ | ±0.1 |
| DisplayResolution(mm3) | 0.1 |
| Inner Tank size(mm3) | Φ300×300 |
| Depth(mm) | 300 |
| Pump Flow(L/min） | 6 L |
| Top Opening Dimen(mm) | Φ150 |
| Drain | Yes |
| NW(kg) | 20 |
| Heating Power | 2000W |
