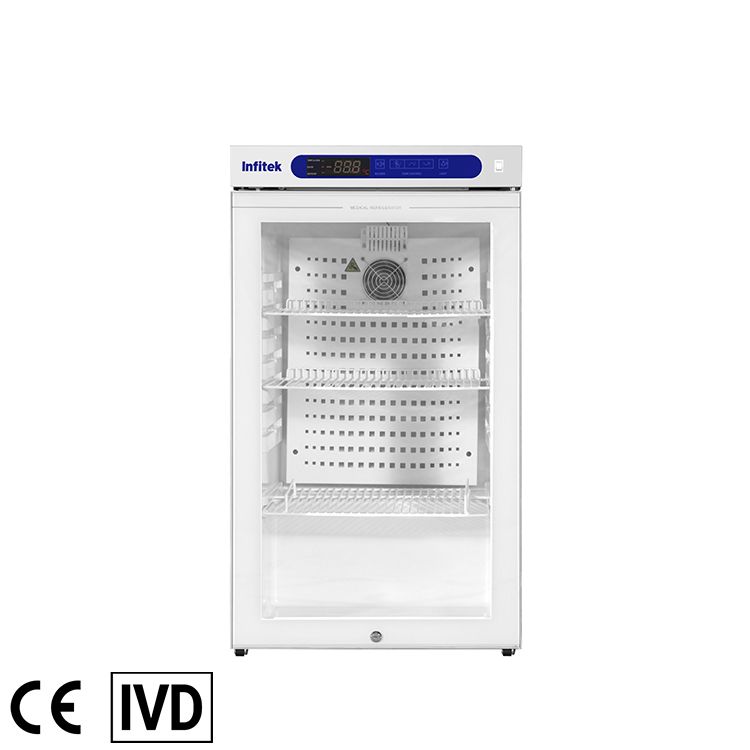

2-8℃ Single Door Medical/Pharmaceutical/Vaccine Refrigerator, PR5-100

  1. Capacity: 100L
  2. Cooling method: Forced Air Cooling System
  3. Defrost: Auto
  4. Refrigerant: R600a
  5. Sensor Type: NTC
  6. Temperature controller: Microprocessor

Share the product


The Infitek 2-8℃ Single Door Vaccine/Medical/Pharmaceutical Refrigerator maintains optimal storage temperatures for vaccines and medical supplies, perfect for pharmacies, labs, and healthcare facilities.

Reliability and Key Features

  • High efficiency specially compressor with known field proven reliability.
  • Permanently lubricated cooling fan for safety and longevity.
  • Forced-air cooling with optimized air distribution system designed.
  • To achieve maximum temperature uniformity and stability.
  • Optimized refrigeration system design for more effective cooling and speedy recovery.
  • Temperature variation within ±3℃.
  • Adjustable temperature range 2-8℃.
  • Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
  • Large digital display screen.

Characteristic Function

  • Safety door lock design to avoid door ajar.
  • Big digital screen display for easy observation.
  • Optional testing hole.
  • Adjustable shelves.
  • Inner light design for a clear display.


  • Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
  • Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Forced Air-cooling System

  • Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to assure no-frost inside.

Ergonomic Design

  • Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
  • Safety lock to prevent unauthorized access.
  • Caster design and leveling legs LED Interior light.

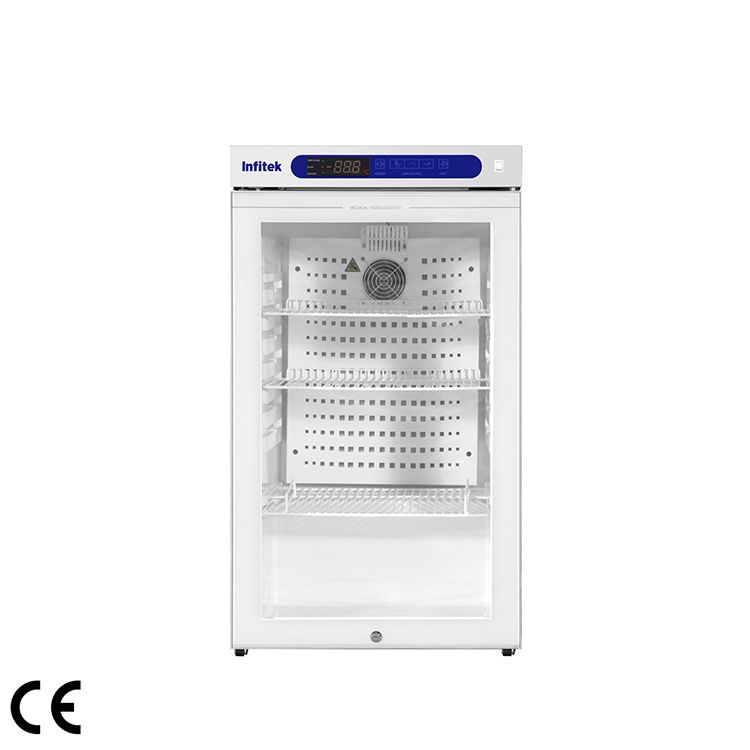

Vaccine Refrigerator
Model PR5-100
Capacity (L) 100
Dimension (W*D*H) Internal (mm) 385*356*737
External (mm) 505*510*875
Temperature Range (℃) at RT.10~32℃ 2~8(Optional 2~10 ; 2~14)
Sensor NTC
Controller Microprocessor
Cooling system Refrigerant R600a (CFC Free )
Defrost Auto
China  Compressor qty 1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature /
Abnormal voltage /
Power failure backup system(alarm) 10h
Door ajar Standard
Material Internal HIPS
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port /
Casters Standard
Chart recorder /
Temperature data logger Optional
Remote alarm port /
Test hole (Qty) / Diameter (mm) /
Shelves / Drawers (Qty) Shelves/3
Sound Emission (dB) 50
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 80W
N.W./G.W. (Kg) 35/38
Shipping Dimension  (W*D*H) (mm) 580*580*1010
