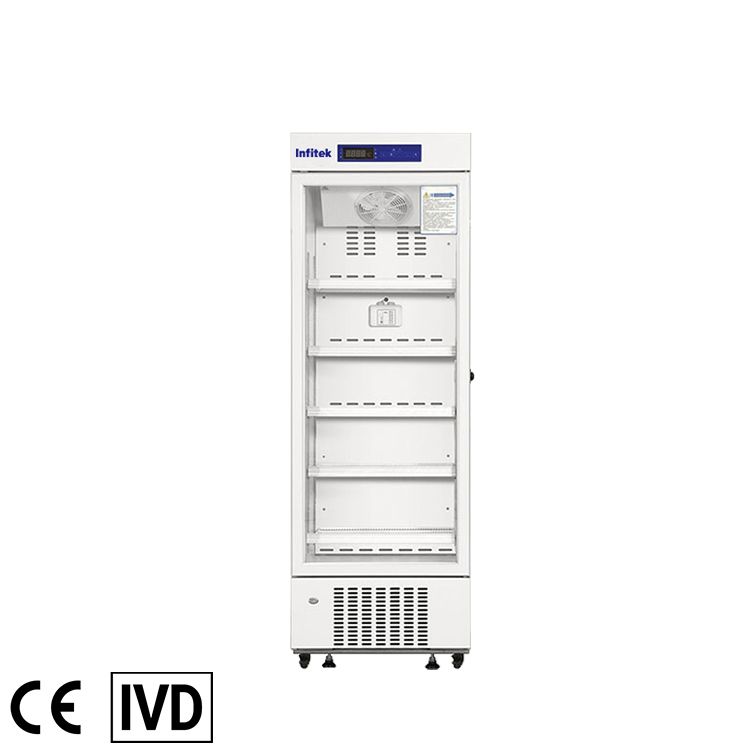

Single Door Pharmacy Refrigerator, PR5-320

Pharmacy Refrigerators are designed with the unique needs of the pharmacy environment in mind and safely store vaccines, drugs, reagents, specimens, etc.

  1. Capacity: 316L
  2. Cooling Method: Forced Air Cooling System
  3. Defrost: Auto
  4. Refrigerant: R290
  5. Sensor Type: NTC
  6. Temperature Controller: Microprocessor

Share the product

Description

DESCRIPTION

DESCRIPTION

Pharmacy Refrigerators are designed with the unique needs of the pharmacy environment in mind and safely store vaccines, drugs, reagents, etc.

Key Features
Forced-air cooling with an optimized air distribution system designed.
Advanced forced cooling system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no frost inside.
To achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Adjustable temperature range 2-8℃ ,optional 2~10°C and 2~14°C

Reliability
Safety door lock design to avoid door ajar.
Digital display for easy viewing
Adjustable shelves.
Inner light design for a clear display.
The microprocessor controls digital display and temperature adjustment with an increment of 0.1℃.
High efficiency especially compressor with known field-proven reliability.
Permanently lubricated cooling fan for safety and longevity.

Safety
Equipped with a complete temperature alarm system featuring an audible buzzer and visible flashing light.
Capable of alerting failures due to high and low-temperature sensor errors, door ajar, power failure and low battery.

Optional
USB and Data logger

Application
It can be used to store medicines and reagents to meet the temperature requirements required by the sample.

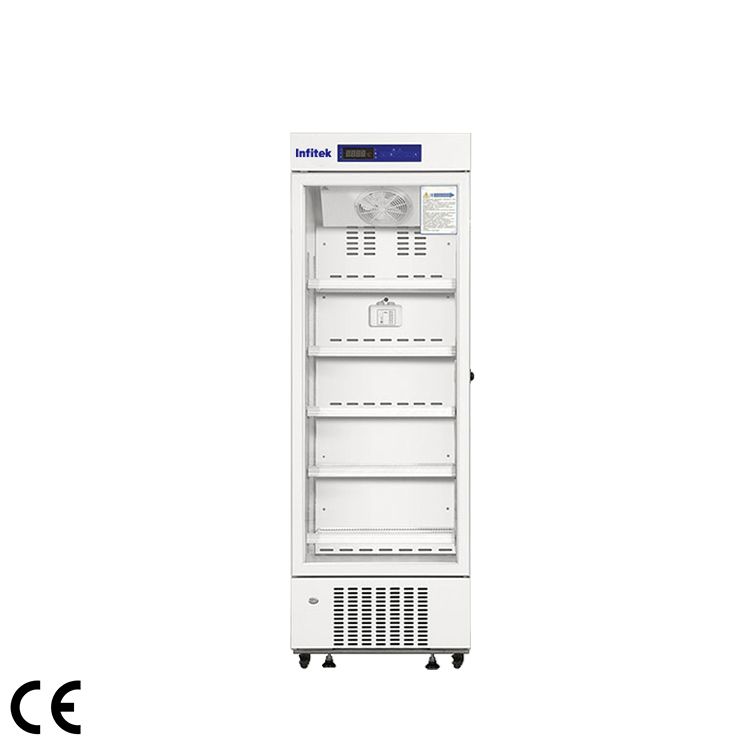

Single Door Pharmacy Refrigerator, PR5-320

Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.

Single Door Pharmacy Refrigerator PR5 320(3)

Caster design and leveling legs LED interior light.

Single Door Pharmacy Refrigerator PR5 320(4)

Permanently lubricated cooling fan for safety and longevity.

SPECIFICATIONS

SPECIFICATIONS

Model PR5-320
Capacity (L) 316
Dimension (W*D*H) Internal (mm) 540*425*1380
External (mm) 660*555*1915
Temperature Range (℃) at RT.10~32℃ 2~8(Optional 2~10 ; 2~14)
Sensor NTC
Controller Microprocessor
Cooling system Refrigerant R290 (CFC Free )
Defrost Auto
China            compressor qty 1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature /
Abnormal voltage /
Power failure backup system(alarm) 8h
Door ajar Standard
Material Internal Electro-galvanized steel with antimicrobial powder coating
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port Optional
Casters Standard
Chart recorder /
Data logger Optional
Remote alarm port Standard
Test hole (Qty) / Diameter (mm) 1/25
Shelves / Drawers (Qty) Shelves/5
Sound Emission (dB) 50
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 240
N.W./G.W. (Kg) 92.5/100
Shipping Dimension  (W*D*H) (mm) 710*680*1960

Specifications

Model PR5-320
Capacity (L) 316
Dimension (W*D*H) Internal (mm) 540*425*1380
External (mm) 640×554×1925
Temperature Range (℃) at RT.10~32℃ 2~8(Optional 2~10 ; 2~14)
Sensor NTC
Controller Microprocessor
Cooling system Refrigerant R290 (CFC Free )
Defrost Auto
China            compressor qty 1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature /
Abnormal voltage /
Power failure backup system(alarm) 8h
Door ajar Standard
Material Internal Electro-galvanized steel with antimicrobial powder coating
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port Optional
Casters Standard
Chart recorder /
Temperature data logger Optional
Remote alarm port Standard
Test hole (Qty) / Diameter (mm) 1/25
Shelves / Drawers (Qty) Shelves/5
Sound Emission (dB) 50
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 286
N.W./G.W. (Kg) 101/112
Shipping Dimension  (W*D*H) (mm) 780*700*2070
