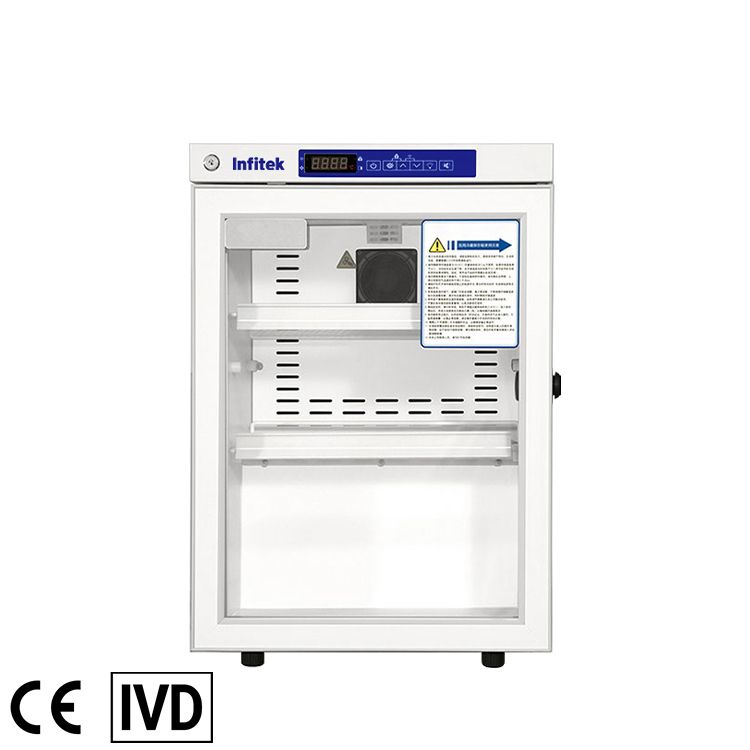

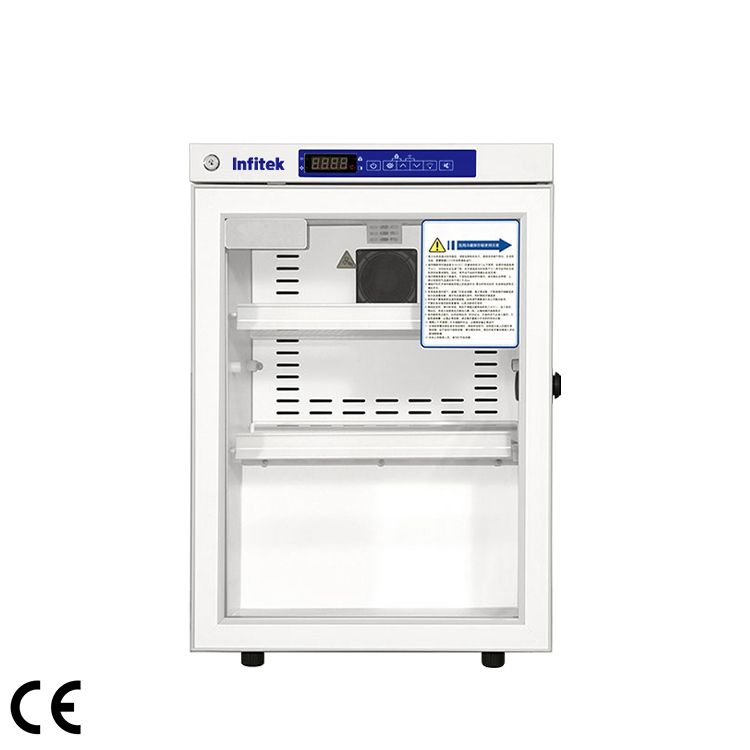

2~8℃ Single Door Pharmaceutical Refrigerator, PR5-60

  1. Capacity: 60L
  2. Cooling Method: Forced Air Cooling System
  3. Defrost: Auto
  4. Refrigerant: R600a
  5. Sensor Type: NTC
  6. Temperature Controller: Microprocessor

Share the product

Description

DESCRIPTION

DESCRIPTION

Reliability and Key Features
High efficiency specially compressor with known field proven reliability.
Permanently lubricated cooling fan for safety and longevity.
Forced-air cooling with optimized air distribution system designed.
To achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Temperature variation within ±3℃.
Adjustable temperature range 2-8℃.
Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
Large digital display screen.

Characteristic Function
Safety door lock design to avoid door ajar.
Big digital screen display for easy observation.
Optional testing hole.
Adjustable shelves.
Inner light design for a clear display.

Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Forced Air-cooling System
Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no-frost inside.

Ergonomic Design
Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
Safety lock to prevent unauthorized access.
Caster design and leveling legs LED interior light.

multi level and adjustable shelf height

Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.

SPECIFICATIONS

SPECIFICATIONS

Model PR5-60
Capacity (L) 60
Dimension (W*D*H) Internal (mm) 410*315*560
External (mm) 490×440×710
Temperature Range (℃) at RT.10~32℃ 2~8(Optional 2~10 ; 2~14)
Sensor NTC
Controller Microprocessor
Cooling system Refrigerant R600a (CFC Free )
Defrost Auto
China            compressor qty 1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature /
Abnormal voltage /
Power failure backup system(alarm) 8h
Door ajar Standard
Material Internal Electro-galvanized steel with antimicrobial powder coating
External Electro-galvanized steel with antimicrobial powder coating
Accessories USB port /
Casters /
Chart recorder /
Temperature data logger Optional
Remote alarm port Standard
Test hole (Qty) / Diameter (mm) 1/25
Shelves / Drawers (Qty) Shelves/2
Sound Emission (dB) 50
Electricity Voltage/Frequency AC110/220V±10%, 50/60Hz
Consumption (W) 75
N.W./G.W. (Kg) 33/37
Shipping Dimension  (W*D*H) (mm) 550*520*760
