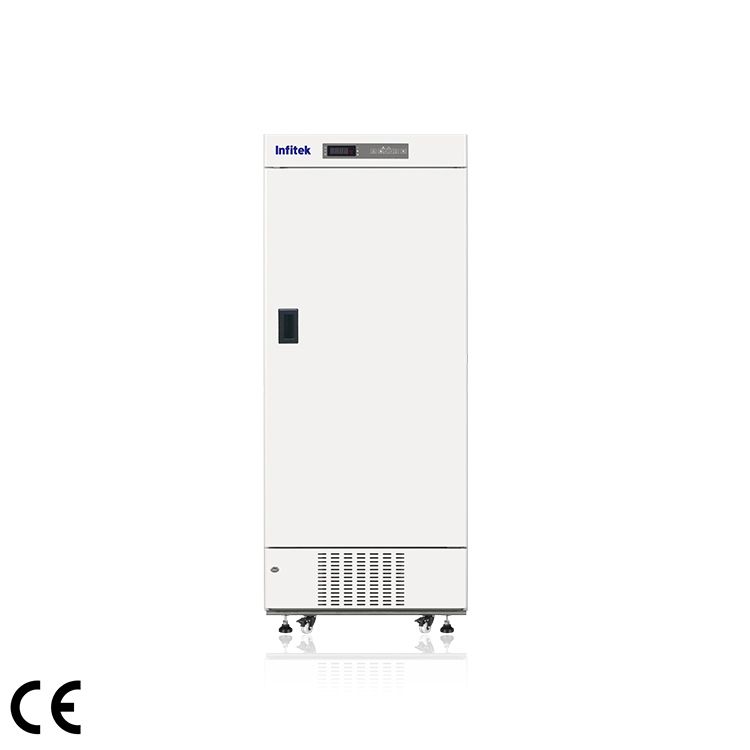

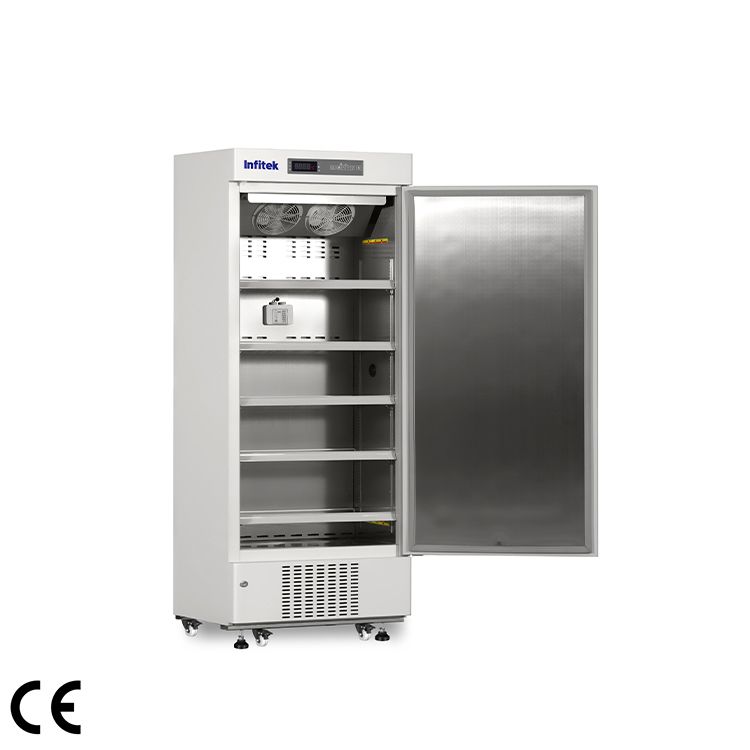

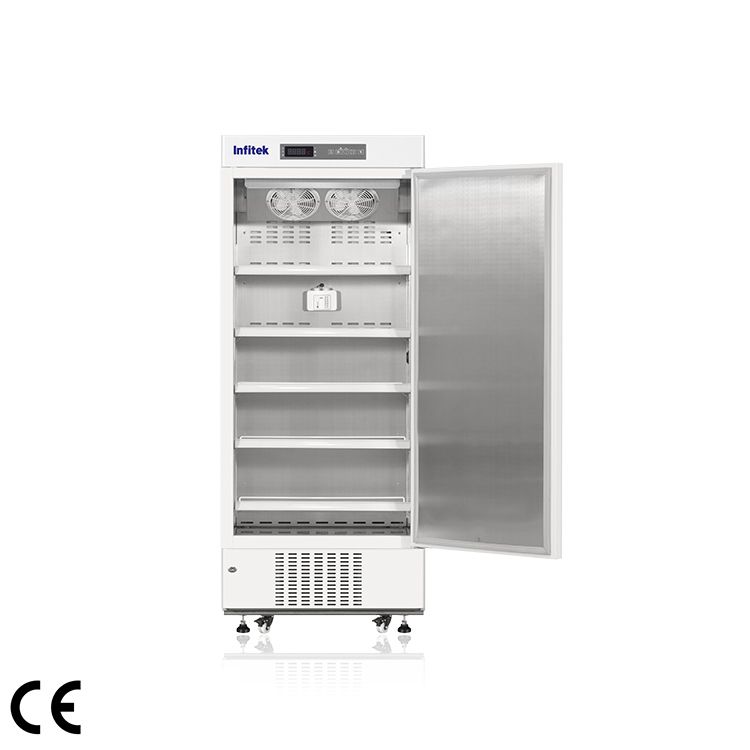

Explosion Proof Refrigerator, PR5-416EX

The Explosion-Proof guarantees the safe storage of volatile substances in hazardous settings.

  1. Capacity: 416L
  2. Temperature Range: 2~8℃
  3. Refrigerant: R290a
  4. Digital display
  5. Anti-explosion compressor and controller system

Share the product

Description

The Infitek Explosion-Proof Refrigerator ensures safe storage of volatile substances in hazardous environments.

Application
It is specially designed to store medicines, vaccines, reagents and bio-medical products with anti explosion function.

Key Features
Anti-explosion compressor and controller system to protect inner storage more safely.
Specially designed forced-air cooling system, ensure frost-free cabinet and good temperature uniformity.
Accurate temperature controller, ensure the inside temperature within 2~8°C and accuracy 0.1 °C.
Suggested ambient temperature: 10~32°C.
4 casters for easy moving and fixation.

Reliability
Wide available voltage range: 187V~242V.
Foamed door with for better heat protection
Color spray steel plate inner chamber for friendly using and easy cleaning.
5 adjustable steel wire shelves for easy storing.
Special designed service-free drainage system, ensures no water in the cabinet.
Auto on/off LED light with manual switch on control panel.

Safety
Safety door lock and controller setting password to prevent unauthorized access.
Build-in back-up battery to display temperature and to operate audible and visual alarm system for up to 8 hours without AC power.
Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
Visual and audible alarm system: High/low temperature, power failure, sensor failure, door ajar
Power failure protection: turn on delay of the cooling system after power failure.
Controller error protection: the cooling system will remember the normal working cycle and keep working depending on this memory when controller or two sensor failed.
Keyboard lock, password protection to avoid set parameter randomly.

Optional
Temperature recorder

Specifications

Explosion-Proof Refrigerator
Model PR5-416EX
Capacity (L) 416
Dimension (W*D*H) Internal (mm) 685*429*1380
External (mm) 785*552*1927
Temperature Range (℃) 2~8
Sensor PT100
Controller Microprocessor
Cooling system Refrigerant R290a
Defrost Frost free
Compressor qty. 1
Display Digital display
Audible&Visible Alarm High/Low temperature Standard
High ambient temperature Standard
Abnormal voltage Standard
Power failure backup system(alarm) Standard
Door ajar Standard
Material Internal SUS
External Powder coated steel
Accessories USB port Standard
Casters Standard
Chart recorder /
Data logger Optional
Remote alarm port Standard
Test hole (Qty) / Diameter (mm) 1/25
Shelves / Drawers (Qty) Shelves / 5
Sound Emission (dB) 45dB
Electricity Voltage/Frequency(V/Hz) 220/50
Consumption (W) 290
N.W./G.W. (Kg) 150/165
Shipping Dimension  (W*D*H) (mm) 880*640*2100
