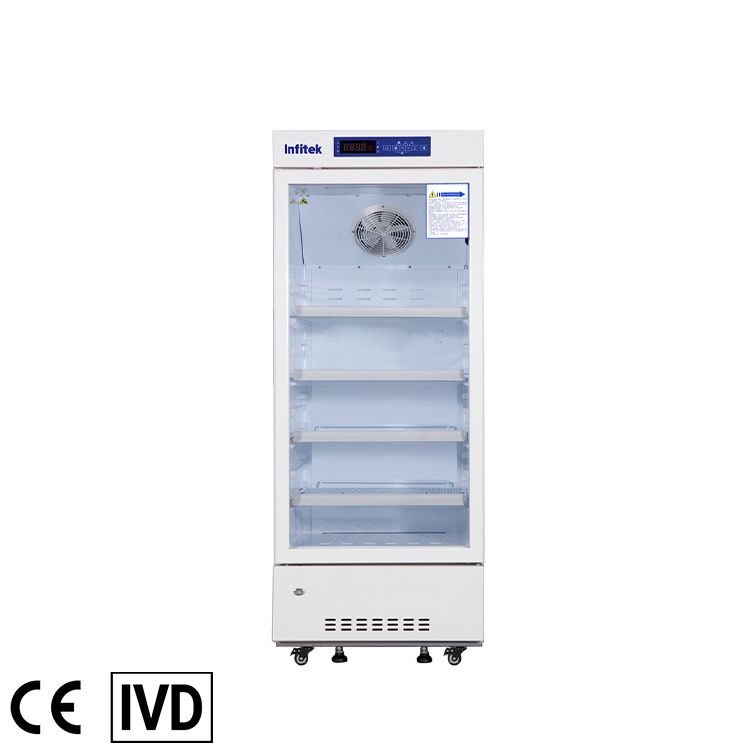

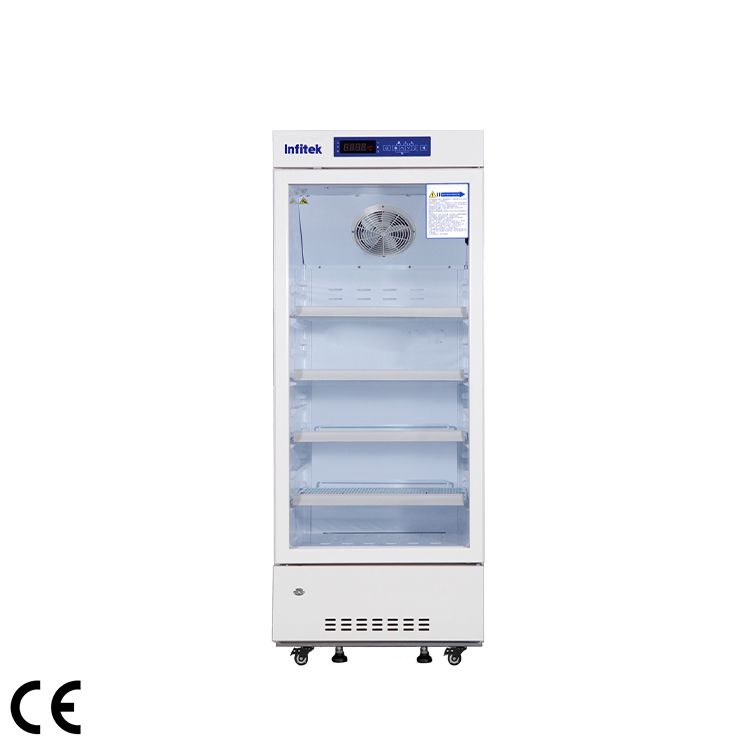

Single Door Pharmacy Refrigerator, PR5-250

  1. Capacity: 226L
  2. Temperature range(℃): 2~8℃
  3. Cooling method: Forced Air Cooling System
  4. Defrost: Auto
  5. Refrigerant: R600a
  6. Sensor Type: NTC
  7. Temperature controller: Microprocessor

Share the product


Pharmacy Refrigerators are designed with the unique needs of the pharmacy environment in mind and safely store vaccines, drugs, reagents, specimens, etc.

Reliability and Key Features

High efficiency specially compressor with known field proven reliability.
Permanently lubricated cooling fan for safety and longevity.
Forced-air cooling with optimized air distribution system designed.
To achieve maximum temperature uniformity and stability.
Optimized refrigeration system design for more effective cooling and speedy recovery.
Temperature variation within ±3℃.
Adjustable temperature range 2-8℃.
Microprocessor control digital display, and temperature adjustment with an increment of 0.1℃.
Large digital display screen.

Characteristic Function
Safety door lock design to avoid door ajar.
Big digital screen display for easy observation.
Optional testing hole.
Adjustable shelves.
Inner light design for a clear display.

Safety of Pharmacy Refrigerators
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light.
Capable of alerting failures due to high and low temperature sensor error, door ajar, power failure and low battery.

Forced Air-cooling System
Advanced forced cooing system to keep inside temperature stable and uniform. Finned evaporator with special cycle design of forced air cooling system to ensure no-frost inside.

Ergonomic Design
Optimized space utilization design with multi-level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
Safety lock to prevent unauthorized access.
Caster design and leveling legs LED interior light.


Model PR5-250
Specifications Shelf/drawer Shelves/4
Cooling method Forced Air Cooling System
Defrost Auto
Refrigerant R600a
Power consumption(kWh/24h) 1.6
Noise(db) 50
Ambient temperature(℃) 10~32℃
Temperature range(℃) 2~8℃
Cooling system Compressor brand/QTY China Brand/1
Sensor Type NTC
Temperature controller Microprocessor
Display Digital display
Power Voltage/frequency(V/Hz) 220/50Hz
Power(W) 140W
Current(A) 1A
Material Inside material Color sprayed steel
Outside material Color sprayed steel
Insulation PURF
Size Capacity(L/cu.ft) 226/8.33
NW./GW.(kg) 73/76
Exterior size(W×D×H)(mm) 625×594×1707
Interior size(W×D×H)(mm) 534×406×1150
Package size(W×D×H)(mm) 707×676×1745
CBM 0.91
20GP/40GP/40HQ 24/51/51
Alarm High/low temperature Y
Power failure Y
Thermostat failure Y
Backup battery failure alarm /
Condenser fault alarm /
Ambient Temperatures /
Voltage abnormality alarm /
Door ajar Y
System abnormal alarm /
Power failure backup system(alarm) 8h
Accessories Foot Y
Castor Y
Outer door/Type 1/Glass door /Low-E
Door Lock 1
Test hole QTY/diameter 1/25mm
Lamp LED
USB port Optional
Temperature recorder Optional  Datalooger
Remote alarm port Y
RS232/485 port Optional
