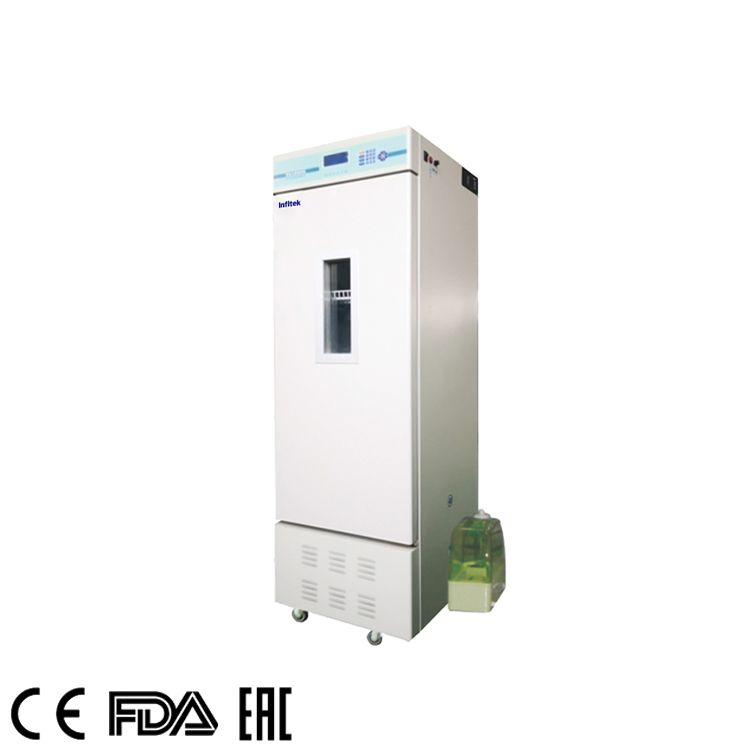

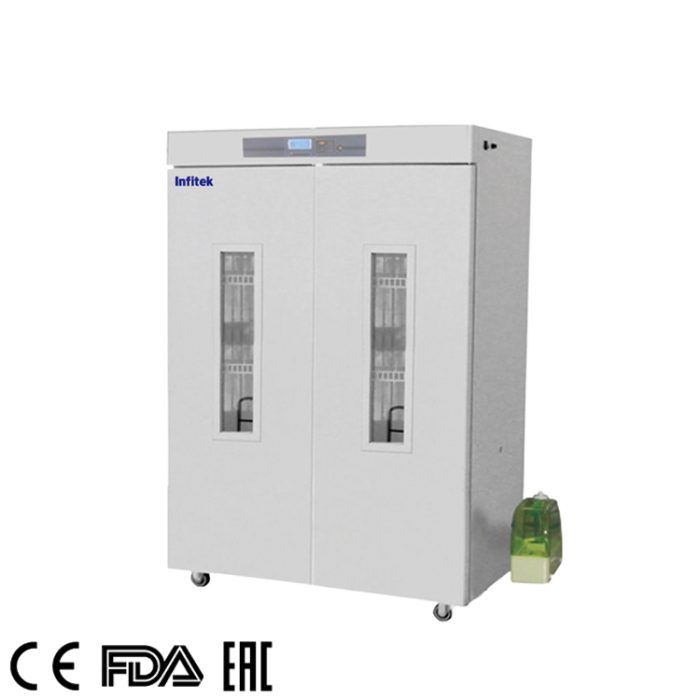

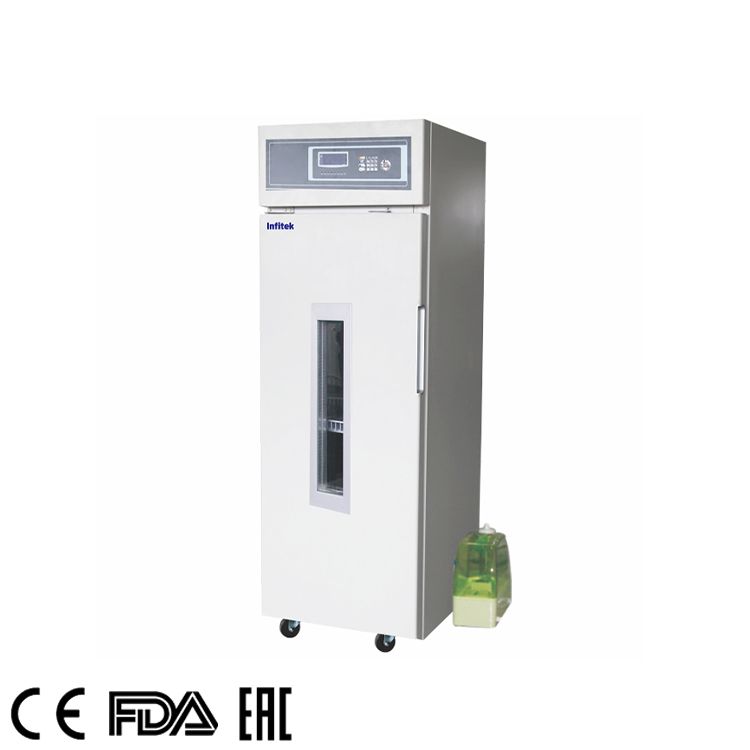

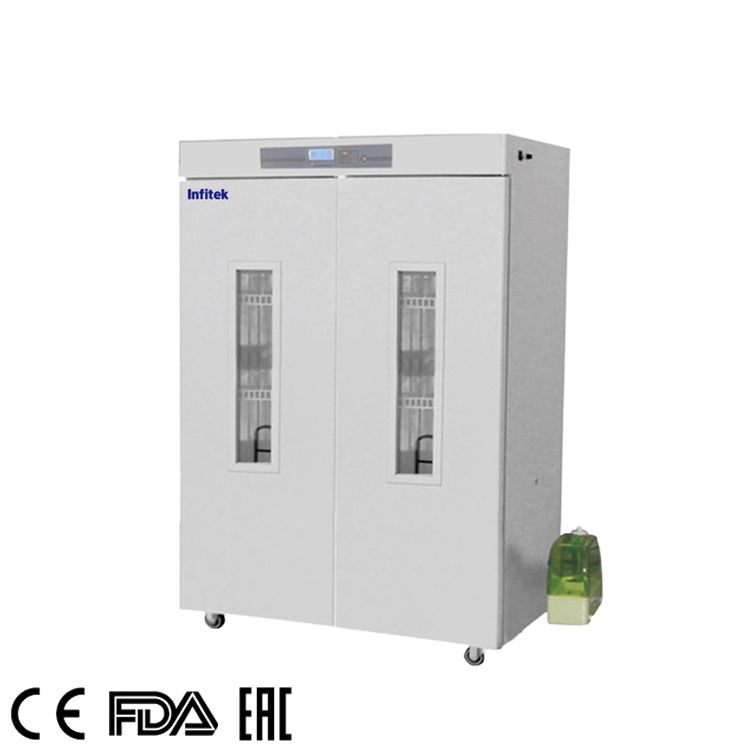

Artificial Climate Chamber, ICB-CC-Y Series

  1. Optional volume: 268L, 310L, 500L, 1000L
  2. Temperature range&fluctuation:0-50°C; ±0.5℃
  3. Humidity range &fluctuation:50-95%RH;±7%RH
  4. Compressor delay protection time:About 3 min
  5. Can increase the illuminance according to customer requirements

Share the product



This series of products can be applied to various fields such as seed germination and development, plant group cultivation and planting, small animal hatching, insect and small animal reproduction, drug antioxidant experiments, and article environmental experiments; they are especially suitable for research in the fields of bioengineering, medical research, agriculture, aquaculture, animal husbandry, etc.

  • LCD screen display, simple operation, accurate control, easy to view at night.
  • The interior features a stainless steel design.
  • The program can be controlled by gradient such as time, temperature and illumination.
  • Over-temperature and sensor abnormality protection to ensure the equipment and sample safety.
  • With sterilization function, set the sterilization time, and automatically turn off the sterilization function at the end of the sterilization time.
  • It has the functions of power-down memory and automatic compensation for power-down time. After power failure, the original working state can be continued when the machine is turned on again.
  • Adopts LED light source, suitable for plant growth, low energy consumption, low heat. Save
  • Inside the incubator is a grid structure, which can be adjusted according to the length of the sample.


Model ICB-CC268Y ICB-CC310Y ICB-CC500Y ICB-CC1000Y
Capacity(L) 268L 310L 500L 1000L
Circulation Mode Forced  convection
Dimension(W*D*H) Internal (mm) 480*480*1040 480*480*1290 690*533*1375 1110*578*1375
External (mm) 580*630*1755 580*630*1895 810*703*1864 1230*708*1865
Temperature Range (℃) 0~50
Fluctuation (℃) ±0.5
Resolution (℃) ±0.1
Uniformity (℃) ±0.1
Sensor PT100
Humidity Range 50-95%RH
Stability ±7%RH
Illumination(Lx) 0~8000 (can be customized) 0~12000 (can be customized)
Illumination Control 10-level relative illuminance control
Controller PID
Display LCD
Timer 0~24h * 99 segments
Material Internal Stainless steel
External Sheet metal spraying
Shelves 2 2 3 6
Refrigerant R134a (CFC free)
Defrosting Mode Automatic
Safety Device Visible& Audible over temperature alarm
Electricity Voltage/Frequency 220±22V, 50±0.5HZ
Consumption (W) 400 600 600 700
N.W./G.W. (kg) 78/125 110/135 138/158 166/200
Shipping Dimension (W*D*H) (mm) 710*670*1930 670*705*2060 950*780*2020 1340*780*2020
Optional Spare shelf
