- Digital displayed automatic type
- Chamber volume: 35L, 50L, 75L, 100L
- Sterilization temperature: 116~134ºC
- Design pressure: 0.25 Mpa
- Automatic protection function

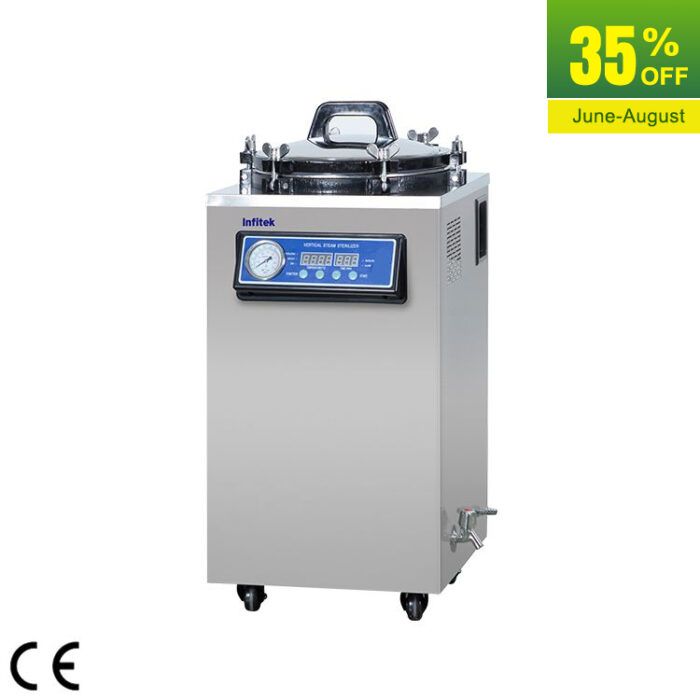

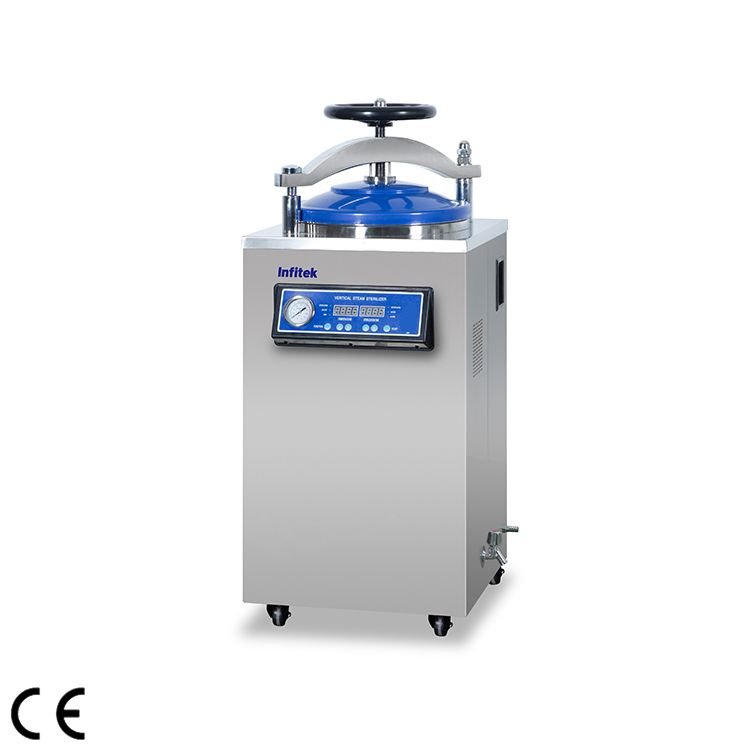

Autoclave, Class N ,Vertical Type, STV-AI Series
Description
- Hand wheel translation and quick opening structure,digital displayed automatic type
- High quality stainless steel material
- Microcomputer automatic control, arbitrary setting sterilization parameters.
- Safety interlocking device
- Digital display and Touch buttons
- Standard test interface
- Self-expanding seal
- With automatic protection function: over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
- With stainless steel bucket or basket
- The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect.
- Buzzer reminder after sterilization, automatic stop.
- Automatic discharge of cold air, automatic steam exhaust after sterilization.
Specifications
| Model | STV-A35I | STV-A50I | STV-A75I | STV-A100I |
| Volume | 35L | 50L | 75L | 100L |
| Power | 2.5kW | 3.5kW | 4.5kW | 4.5kW |
| Voltage | AC 220/110V,50/60Hz | |||
| Design pressure | 0.25MPa | |||
| Design temperature | 139℃ | |||
| Rated working pressure | 0.22MPa | |||
| Rated working temperature | 134℃ | |||
| Sterilization temperature | 116℃~134℃ | |||
| Sterilization time setting range | 4~120 min | |||
| Chamber volume | Ø350*400 | Ø350*525 | Ø400*625 | Ø450*650 |
| Bucket dimension | Ø330*320 | Ø330*480 | Ø380*540 | Ø430*550 |
| Basket dimension（optional） | Ø320*350 | Ø320*240*2 | Ø360*280*2 | Ø410*300*2 |
| Outer dimension | 480*480*1000 | 480*480*1120 | 525*525*1190 | 555*555*1250 |
| Package Dimension(W*D*H)(mm) | 580*630*1130 | 940*590*1260 | 630*680*1350 | 690*640*1400 |
| N.W. / G.W. (kg) | 58/90 | 85/93 | 138 | 100/125 |
