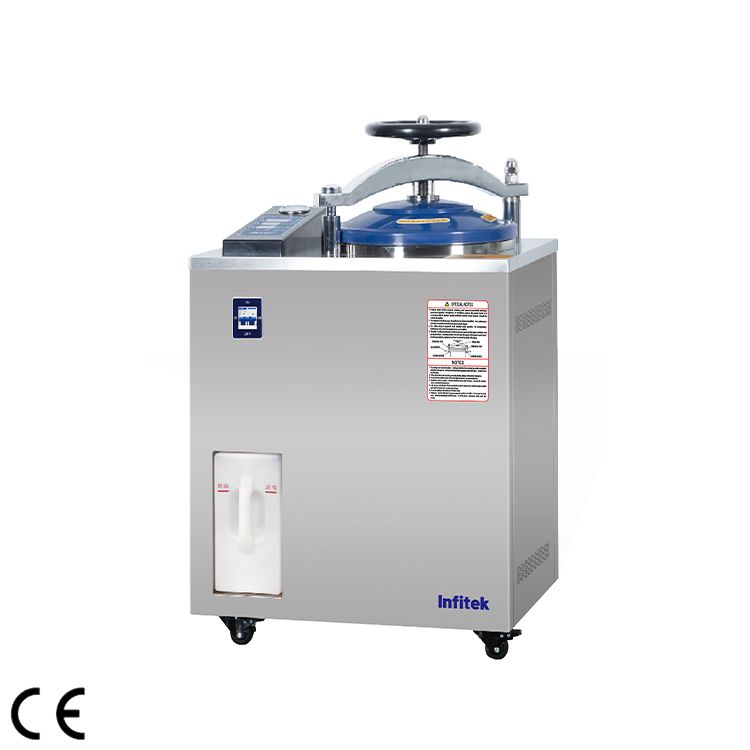

Autoclave, Class N ,Vertical Type, STV-AII Series

  1. Multifunctional Automatic Internal Cycle With Drying
  2. Chamber volume: 35L, 50L, 75L, 100L
  3. Sterilization temperature: 116~134ºC
  4. Design pressure: 0.25 Mpa

Share the product

Description

  • Hand wheel translation and quick opening structure
  • Multi-functional automatic internal cycle with drying
  • Internal steam cycle
  • High quality stainless steel material
  • Microcomputer automatic control,arbitrary setting sterilization parameters
  • Safety interlocking device
  • Digital display and Touch buttons
  • Standard test interface
  • Self-expanding seal
  • With automatic protection function:over temperature protection; over pressure self discharge protection ; low water level protection; anti dry burning.
  • With stainless steel bucket or basket
  • The unique three-time temperature rise and fall program achieves higher steam saturation and significantly improves the sterilization effect.
  • Buzzer reminder after sterilization, automatic stop.
  • Automatic discharge of cold air, automatic steam exhaust after sterilization.
  • Optional external printer
  • Optional automatic water inlet function

Specifications

Model STV-A35II STV-A50II STV-A75II STV-A100II
Volume 35L 50L 75L 100L
Power 3.5kW 3.5kW 4.5kW 4.5kW
Voltage AC 220V, 50HZ
Design pressure 0.25 Mpa
Design temperature 139℃
Rated working pressure 0.22Mpa
Rated working temperature 134℃
Sterilization temperature 116℃~134℃
Temp accuracy ±1℃
Sterilization time setting range 4~120 min
Drying time setting range 0~240min
Chamber volume Ø350×400 Ø350×525 Ø400×625 Ø450×650
Bucket dimension Ø330×320 Ø330×460 Ø380×560 Ø420×540
Basket dimension(optional) Ø320×350 Ø320×240×2 Ø360×280×2 Ø410×300×2
Outer dimension 698×498×940 630×500×1110 725×525×1170 788×588×1255
Package Dimension(W*D*H)(mm) 760*610*1260 800*620*1260 840*610*1310 870*650*1380
N.W. / G.W. (kg) 110/143 112/145 114/166 129/179
