- Measuring range: Refractive index nD: 1.30000-1.70000, Brix (BX): 0-100%
- Temperature Correction Function
- Storage System
- Configure the communication interface

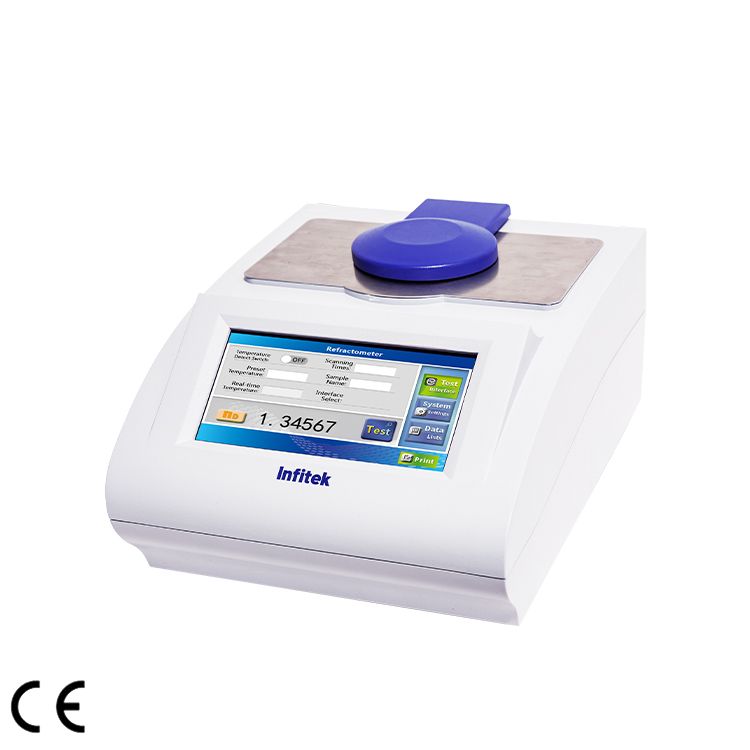

Full-Automatic ABBE Digital Refractometer, RFT-A731, RFT-A733
Description
- Adopt high-resolution CCD detection system, automatic measurement, fast test speed, good repeatability, and temperature correction function to avoid human error.
- Color LCD touch screen, friendly man-machine interface, intuitive and easy to read, large-capacity storage system, measurement data can be saved and traced.
- Configure the communication interface, which can be connected to the computer and U disk, which is convenient for user data storage, export and backup.
- The measuring prism is corrosion-resistant, scratch-resistant, easy to clean and durable.
- The measurement liquid level is small, saving the sample, just take 0.5ml of sampling, non-destructive measurement, and the sample can be recovered.
- The instrument structure has no mechanical moving parts, adopts LED light source, and has a service life of more than 100,000 hours.
- Built-in 8 industry standard parameters, namely F42 fructose syrup, F55 fructose syrup concentration, glucose concentration, sucrose concentration, solid content (fruit juice, vegetables, canned products, soft drinks), honey water content, nD20 and user-defined measurement units.
- Meet the relevant requirements of Chinese national standards GB/T12143-2008, GB/T18963-2012 and GB/T21730-2008.
Specifications
Parameters/Model | RFT-A731 | RFT-A733 |
Measuring range | Refractive index nD: 1.30000-1.70000 Brix (BX): 0-100% |
|
Measuring resolution | Refractive index nD: ±0.00001 Dissolved solids Brix: ±0.01% |
|
Measurement precision | Refractive index nD: ±0.00001 Dissolved solids Brix: ±0.01% |
|
Accuracy | Refractive index nD: ±0.0002
Dissolved solids Brix: ±0.1% |
|
Built-in measurement mode | 8 types | |
Temperature | Temperature display range: 0-90℃ | |
Temperature control method | —— | Semiconductors (Peltier) |
Thermostatical control range | —— | 10-60℃ |
Temperature control accuracy | —— | ±0.1℃ |
Interface | RS232/USB/U Disk | |
Printer | Dot matrix printer CK NT-T24S (optional) | |
Display | 7-inch color touch screen | |
Prism material | High hardness glass | |
N.W.(kg) | 9 | |
Instrument Dimension (W*D*H)(mm) | 510*350*240 |
