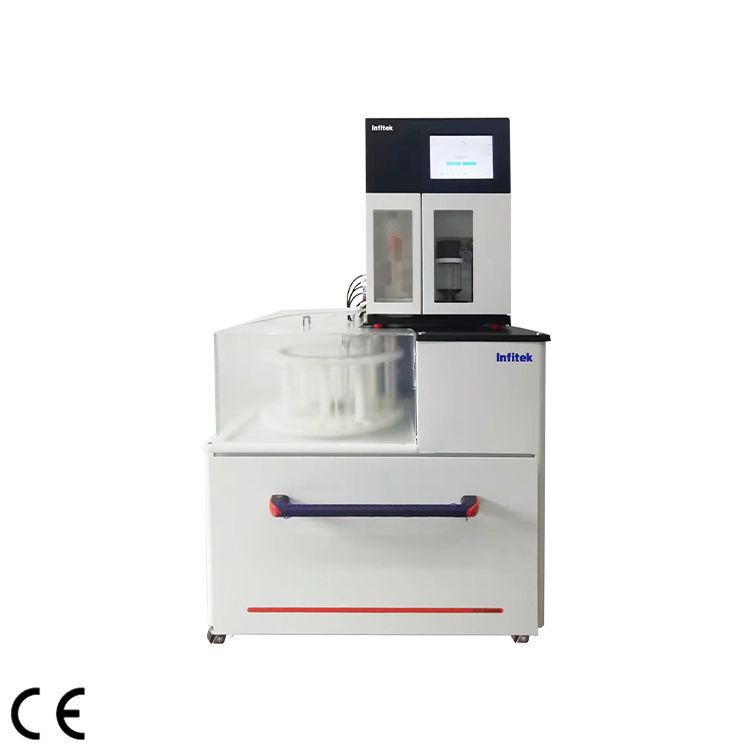

Automatic Kjeldahl Protein Nitrogen Analyzer, KJA-1160, KJA-1124

  • Measuring range: 0.1mg ~240mg N
  • Analysis time: 3~8min/sample
  • Reproducibility  Average value relative error ±0.5%
  • Recovery: ≧99.5%

Share the product



1.Automation. Fully automatic distillation, titration, calculation, printing, waste disposal, fault self-test and can be paired with 24 positions auto sampler for true unattended operation, making the whole experiment process simple and efficient.
2.Compliance with FDA 21CFR Part.11 and GMP, it has the function of authorization management, account management,experiment data traceable password-aging and editing protection,etc.
3.High accuracy. Burette accuracy can be adjusted from 0.2 to 1μL/Step

With side-distillation titration and variable-speed titration technology, reducing experiment time by one-third
• New Android operating system, easy to use, powerful, with 10 inch high-definition color touch screen, real-time control of the entire experimental process
• With batch testing function, it makes the batch sample experiment operation simple and convenient, reducing test time
• Monitoring the condensate effluent temperature in real time to ensure complete condensation of the sample, ensuring the test results are
accurate and reliable
• Privilege grading function, which can realize data traceability management and meet the requirements of GMP and 21CFR Part11
• The titration module is used to titrate the receiving liquid, the result is more accurate, and the precision is higher.
• The titration graph displays the online monitoring of the entire experimental process in real time, and the experimental method can be
adjusted in real time to improve the test accuracy and efficiency.
• With up to 24 positions auto sampler, the K1124 auto sampler does not require a separate power supply and is directly connected to the K1160
fully automatic Kjeldahl analyzer. The entire system is more energy efficient.
• 24-bit injection port, the cleaning position is separated from the test position, completely eliminating the possibility of cross-contamination
during distillation
• Testing report can be customized and output by pdf or print.
• All sample weight weigh by balance can be output directly into K1160 for analysis(specified model).
• Color sensor can be adjusted by RGB model, compliance with AOAC,ISO,EPA,USP etc.

• New metal condensing unit, ultra high efficiency for condensing,saving up to 50% water.
• 24 position auto sampler with fully program processing, no manual guard, saving human resource cost.
• Distillation and titration in real time, variable speed titration technology, reducing experiment time up to 30%.

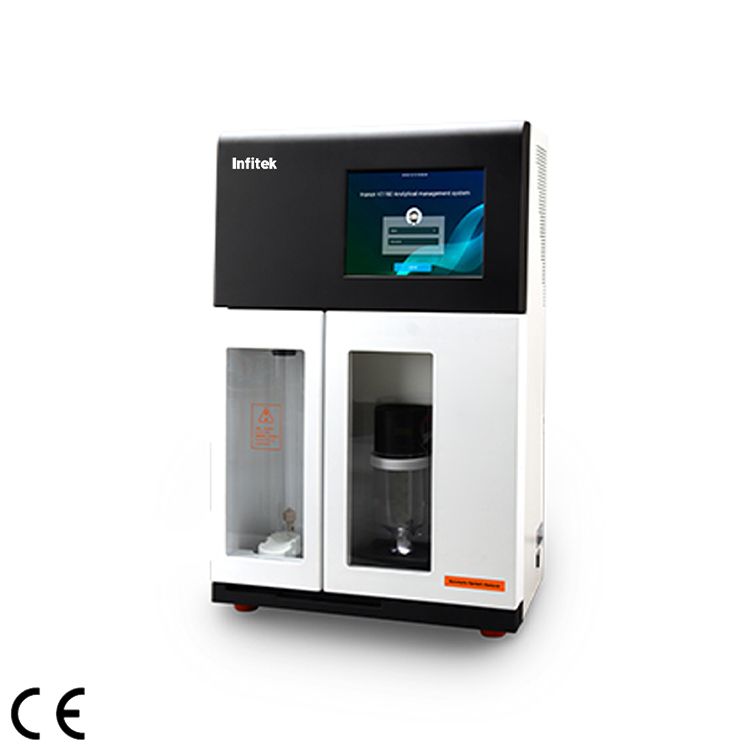

KJA-1160 Kjeldahl Protein Analyzer
Measuring range 0.1mg ~240mg N
Analysis time 3~8min/sample
Reproducibility Average value relative error ±0.5%
Recovery ≧99.5%
Burette accuracy 1.0μL/step optional:0.2μL/step and 0.4μL/step
Capacity solid≦5g/sample, liquid≦20mL/sample
Water consumption in the distillation process 0.5L/min
Data storage capacity 1 million groups
Power supply 220VAC±10%, 50Hz
Power 2KW
Net weight 38Kg
Dimension 460mm×360mm×725mm

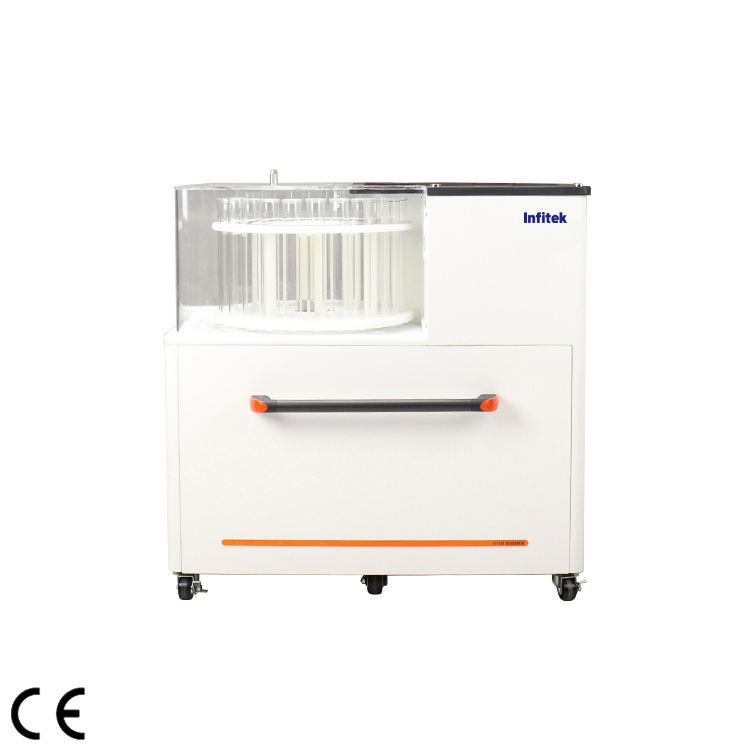

KJA-1124 Auto Sampler
Capacity 24 samples per batch
Rotor speed ≥0.04r/s
Sampling speed ≥40mm/s
Tank capacity 4x15L
Connection CAN
Voltage 24V DC
Rated Power 40W
Dimension(L×W×H) 920mmX625mmX908mm
Weight 80Kg
