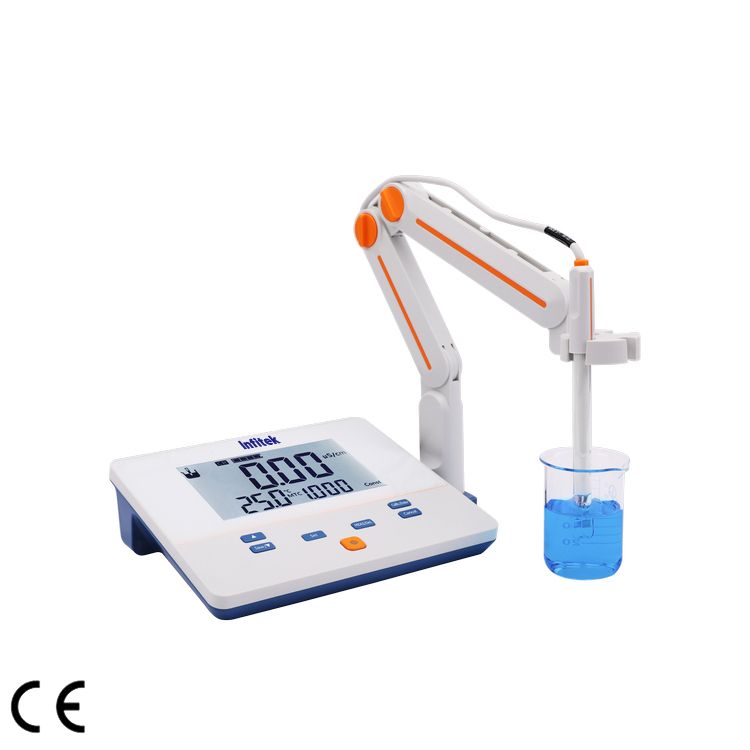

Benchtop Conductivity Meter, CON-B200E

  1. Intelligent operation system
  2. Automatic/Manual temperature compensation
  3. IP54 waterproof.
  4. Settable cell constant

Share the product


The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.

6-inch high resolution LCD display screen.
Multi-reading feature allows auto-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data Storage 50 sets for each parameter.
Reset feature automatically resumes all settings back to factory default options.
IP54 waterproof.
1 point calibration with standard recognition.
Cell constant is settable


Model CON-B200E
Conductivity Range 0.00 μS/cm to 200 mS/cm
Resolution 0.01 μS/cm minimum, various with range selection
Accuracy ±1.0% FS
Reference Temperature 25 ºC
Calibration Points Up to 1
Standard Recognition 84μS/cm, 1413μS/cm, 12.88mS/cm
TDS Range 0.00mg/L~100g/L
Resolution 0.01mg/L minimum, various with range selection
Accuracy ±1.0% FS
Temperature Range -5.0 to 110 ºC, 23.0 to 230 ºF
Unit ºC
Resolution 0.1
Accuracy ±0.2
Measurement Reading Mode Auto Read, Continuous
Reading Prompts Reading, Stable, Locked
Temp. Compensation ATC, MTC
Data management Data Storage 50 results each
Inputs Conductivity with Temp. Probe 5-pin aviation connector
Display options Backlight Yes
Auto Shutdown 300, 600, 1200, 1800, 3600 sec., off
IP Rating IP54
General Electricity AC Adapter, 100-240V AC input, DC9V output
Dimensions 242×195×68 mm
Weight 900g
