- Multi-reading feature
- 5.7 inch LCD screen
- IP54 waterproof
- Support for USB and RS-232 communication

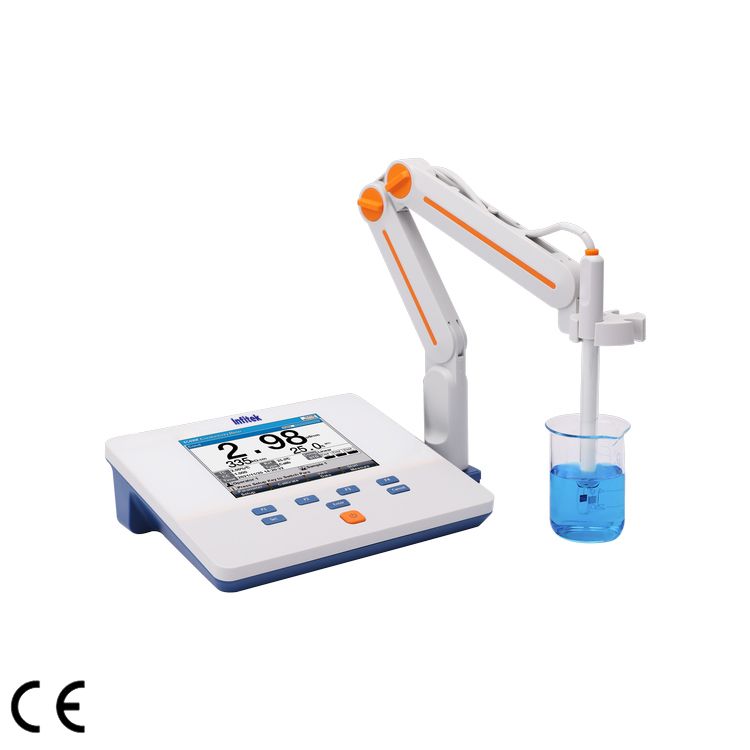

Benchtop Conductivity Meter, CON-B400F
Description
The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.
Advantages
- 7 inches high resolution LCD display.
- Multi-reading feature allows auto-read, timed-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data storage for 500 sets (GLP-compliant).
- Support for USB and RS-232 communication.
- Reset feature automatically resumes all settings back to factory default options.
- IP54 waterproof.
- 1-3 points calibration with standard recognition.
- Settable parameters, including cell constant, temperature compensation coefficient and TDS factor.
- Temperature compensation type (none, linear, pure water).
Specifications
| Model | CON-B400F | |
| Conductivity | Range | 0.000 μS/cm to 1000 mS/cm |
| Resolution | 0.001 μS/cm minimum,
various with range selection |
|
| Accuracy | ±0.5% FS | |
| Reference Temperature | 20, 25 ºC | |
| Calibration Points | Up to 3 | |
| Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
| Resistivity | Range | 5.00 Ω·cm~100.00 MΩ·cm |
| Resolution | 0.01 Ω·cm minimum | |
| Accuracy | ±0.5% FS | |
| TDS | Range | 0.00ppm~1000ppt |
| Resolution | 0.001 ppm minimum, various with range selection | |
| Accuracy | ±0.5% FS | |
| Salinity | Range | 0.0~80.0 ppt |
| Resolution | 0.1 ppt | |
| Accuracy | ±1 ppt | |
| Temperature | Range | -10 to 135 ºC, 14 to 275 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Accuracy | ±0.1 | |
| Measurement | Reading Mode | Auto Read (Fast, Medium, Slow), Timed, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 500 results each |
| GLP Features | Yes | |
| Conductivity with Temp. Probe | 5-pin aviation connector | |
| Outputs | USB | USB 2.0 flash memory device, PC |
| RS 232 | printer | |
| Display options | Backlight | Yes |
| Auto Shutdown | 1~60 min, off | |
| IP Rating | IP54 | |
| Date and Time | Yes | |
| General | Electricity | AC Adapter, 100-240V AC input, DC9V output |
| Dimensions | 242×195×68 mm | |
| Package Dimension (W*D*H) | 360*300*240mm | |
| N.W. / G.W. | 900g / 2.6 kg | |
