- Multi-reading feature
- IP65 waterproof
- Settable cell constant
- Automatic/manual temperature compensation

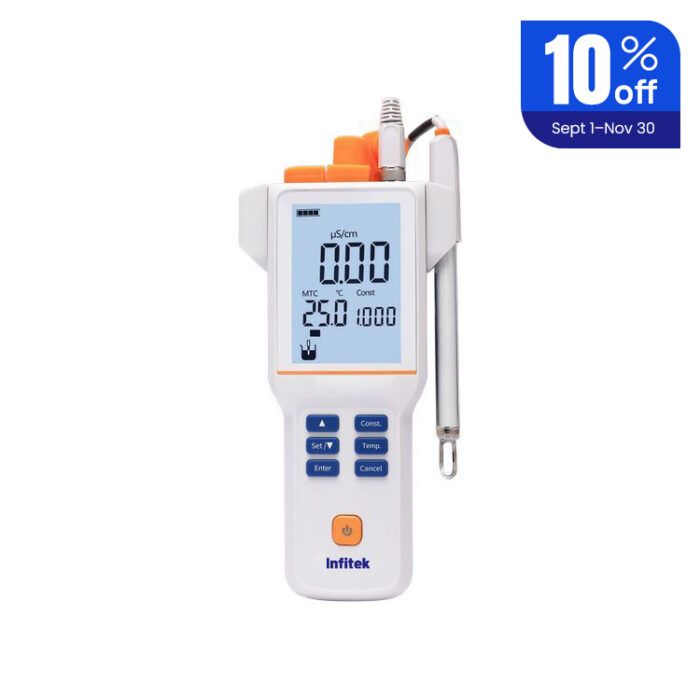

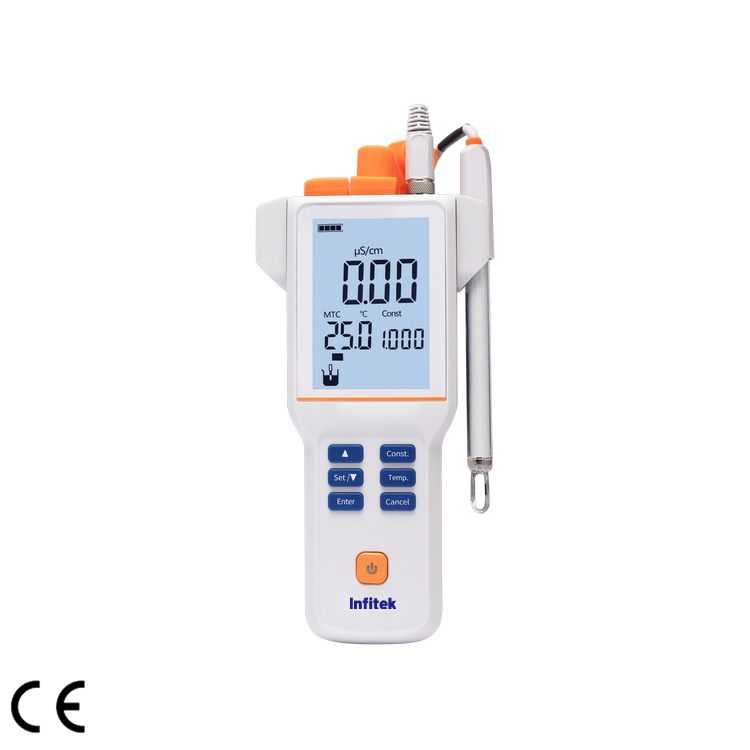

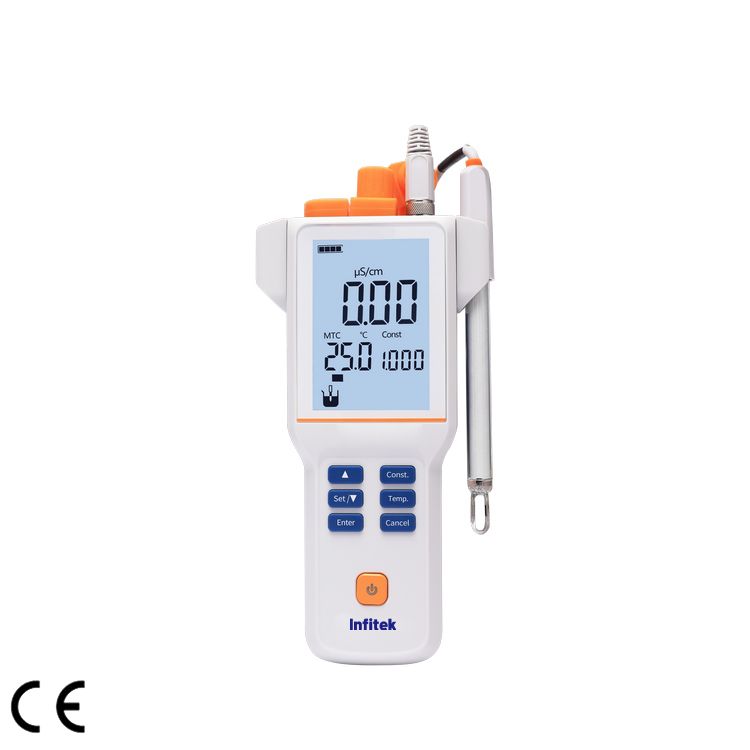

Portable Conductivity Meter, CON-P210E
Description
The conductivity meter is a water quality analysis instrument developed for high-end water quality management and automatic control of medical multi-effect distilled water systems, boiler bottom water, condensate water, and heat exchange systems operating in higher temperature environment.
Advantages
3.5-inch LCD display screen.
Multi-reading feature allows auto-read and continuous-read.
Automatic/Manual temperature compensation ensures accurate results.
Auto-hold feature senses and locks the measurement endpoint.
Data capacity of up to 200 sets for each parameter.
Auto-power off feature effectively extends the battery service life.
Reset feature automatically resumes all settings back to factory default options.
IP65 waterproof.
1 point calibration with standard recognition.
Cell constant is settable
Automatic/manual temperature compensation ensures accurate results.
Specifications
| Model | CON-P210E | |
| Conductivity | Range | 0.00 μS/cm to 200 mS/cm |
| Resolution | 0.01 μS/cm minimum,
various with range selection |
|
| Accuracy | ±1.0% FS | |
| Reference Temperature | 25 ºC | |
| Calibration Points | Up to 1 | |
| Standard Recognition | 84μS/cm, 1413μS/cm, 12.88mS/cm | |
| TDS | Range | 0.00mg/L~300g/L |
| Resolution | 0.01mg/L minimum, various with range selection | |
| Accuracy | ±1.0%FS | |
| Temperature | Range | -5 to 110 ºC, 23 to 230 ºF |
| Unit | ºC, ºF | |
| Resolution | 0.1 | |
| Relative Accuracy | ±0.2 | |
| Measurement | Reading Mode | Auto Read, Continuous |
| Reading Prompts | Reading, Stable, Locked | |
| Temp. Compensation | ATC, MTC | |
| Data management | Data Storage | 200 results each |
| Inputs | Conductivity with Temp. Probe | 5-pin aviation connector |
| Display options | Backlight | Yes |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | |
| IP Rating | IP65 | |
| General | Electricity | Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output |
| Dimensions | 80×255×35 mm | |
| Weight | 400g | |
| Package Dimension (W*D*H) | 320*310*160mm | |
| N.W./G.W. | 0.4kg/1.4kg | |
