- Conductivity Range: 0~20.00mS/cm, four kinds of measuring range can be switched
- Conductivity Resolution: 0.01μS/cm, 0.1μS/cm, 1μS/cm
- Conductivity Accuracy: ±1% F.S.
- Calibration Points: 1 to 3 points
- Conductivity/TDS/Salinity/Temperature

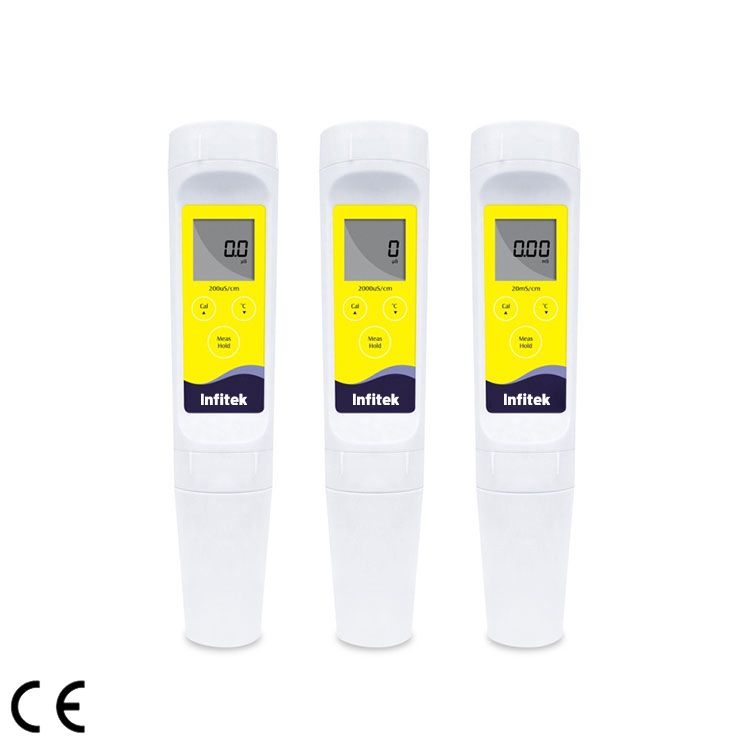

Pocket Conductivity Tester, CON-P20,CON-P30,CON-P40
Description
CON-P20,30,40 Features
1.Multi-range conductivity tester contains the TDS and salinity measurement modes
2.1 to 3 points calibration with automatic recognition for conductivity standards
3.Automatic temperature compensation ensures accurate readings over the entire range
4.Auto-Read function senses and locks the measurement endpoint
5.Setup menu allows setting the number of calibration points, TDS conversion factor,
temperature unit, auto-power off, etc.
6.Reset function automatically resumes all settings back to the factory defaults
Measurement Parameters
7.CON-P20: Conductivity, temperature
8.CON-P30: Conductivity, TDS, temperature
Specifications
| Model | CON-P20 | CON-P30 | CON-P40 | |
| Conductivity | Range | 0~20.00,200.0,2000µS/cm,20.00mS/cm | ||
| Resolution | 0.01,0.1,1 | |||
| Accuracy | ±1% F.S. | |||
| Calibration Points | 1 to3 points | |||
| Calibration Solutions | 84µS/cm,1413µS/cm,12.88mS/cm | |||
| TDS | Range | — | 0-10.00,100.0,1000ppm,20.00ppt | |
| Resolution | — | 0.01,0.1,1 | ||
| Accuracy | — | ±1%F.S. | ||
| TDS Factor | — | 0.1~1.0(default 0.5) | ||
| Salinity | Range | — | — | 0.00-10.00ppt |
| Resolution | — | — | 0.01ppt | |
| Accuracy | 一 | — | ±1%F.S. | |
| Temperature | Range | 0-60°C/32~140°F | ||
| Resolution | 0.1°C/0.1°F | |||
| Accuracy | ±1°C/±1.8°F | |||
| Offset Calibration | 1 point, reading ±10°C | |||
| Other Specifications | Temperature Compensation | 0~60°C, automatic | ||
| Temperature Coefficient | 2%/°C | |||
| Reference Temperature | 25°C | |||
| Cell Constant | K=1 | |||
| Hold Function | Manual or auto-endpoint | |||
| Auto-Off | 8 minutes after last key pressed | |||
| Operating Temperature | 0~50°C | |||
| Display | Dual-line LCD (21×21mm) | |||
| Power Requirements | 2×1.5V AAA batteries | |||
| Battery Life | Approximately 200 hours of continuous use | |||
| Dimensions | 185(L)×40(Dia.)mm | |||
| Weight | 100g | |||
