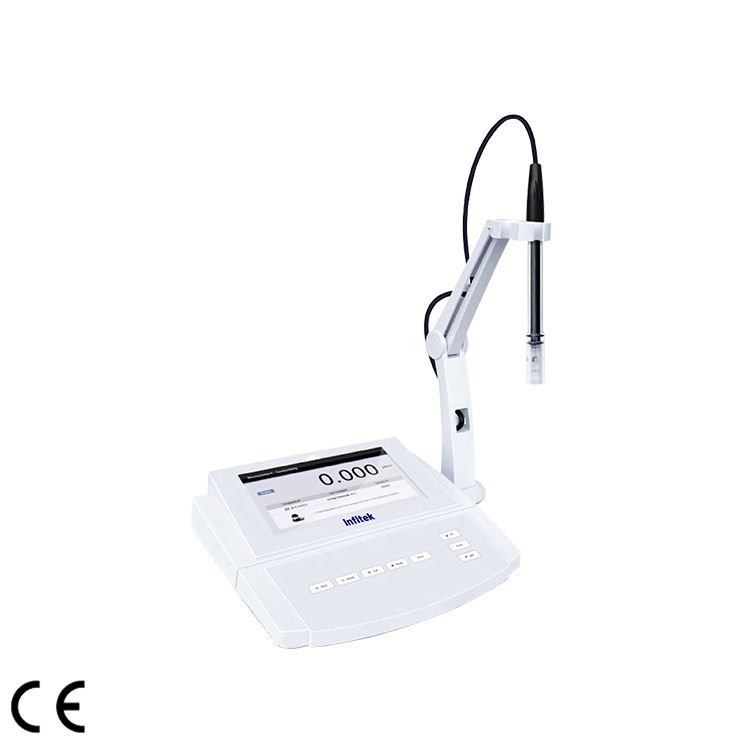

Benchtop Conductivity/TDS/Salinity/Resistivity Meter, BEP-M150

  • Measurement Parameters: Conductivity, TDS, salinity, resistivity, temperature
  • Accuracy: ±0.5% F.S; ±1% F.S.
  • 1 to 3 points calibration
  • Automatic temperature compensation

Share the product

Category:

Description

DESCRIPTION

DESCRIPTION

Measurement Parameters
• BEP-M150: Conductivity, TDS, salinity, resistivity, conductivity ash, temperature
• BEP-M151: Conductivity, TDS, salinity, resistivity, temperature

Features
• 1 to 3 points calibration with automatic recognition for conductivity standards
• Selectable cell constant for matching the connected conductivity electrode or recalling the calibration factor
• Selectable reference temperature, TDS conversion factor, linear/non-linear/pure water compensations, seawater and practical salinity measurement modes
• Automatic temperature compensation ensures accurate readings over the entire range
• Auto-Read function senses and locks the measurement endpoint
• Timed Interval Readings sends the measurement data to a PC or printer
• Limit Alarm automatically alerts when reading exceeds the specified range
• Calibration due alarm prompts user to calibrate the meter regularly
• Calibration report provides the detailed information for checking the meter and sensor
• Password protection prevents the unauthorized calibration and settings
• Expanded memory stores or recalls up to 1000 data sets

Benchtop Conductivity TDS Salinity Conductivity Ash Meter pH meter      Benchtop Conductivity TDS Salinity Conductivity Ash Meter pH meter

Optional Conductivity Electrodes
• CON-0.1: Suitable for measuring the low conductivity liquids (<10µS/cm)
• CON-1 : Suitable for general purpose applications
• CON-10 : Suitable for measuring the high conductivity liquids (>20mS/cm)

Ordering Information
• BEP-M150/151-S: Meter, CON-1 conductivity electrode, temperature probe, conductivity standard solutions, electrode holder and power adapter
• BEP-M150/151-DL: Meter, CON-0.1 and CON-1 conductivity electrodes, temperature probe, conductivity standard solutions, electrode holder, power adapter
• BEP-M150/151-DH: Meter, CON-1 and CON-10 conductivity electrodes, temperature probe, conductivity standard solutions, electrode holder, power adapter

PACKING

PACKING

​

packaging packaging packging

SPECIFICATIONS

SPECIFICATIONS

Model BEP-M150
Conductivity Range 0.01~20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm •
Resolution 0.001, 0.01, 0.1, 1 •
Accuracy ±0.5% F.S. •
Calibration Points 1 to 3 points •
Calibration Solutions 10µS/cm, 84µS/cm, 1413µS/cm, 12.88mS/cm, 111.8mS/cm •
TDS Range 0~10.00, 100.0, 1000mg/L, 10.00, 200.0g/L •
Resolution 0.01, 0.1, 1 •
Accuracy ±1% F.S. •
TDS Factor 0.1-1.0(default 0.5) •
Salinity Range 0.00~80.00ppt, 0.00~42.00psu, 0.00~8.00% •
Resolution 0.01,0.1,1 •
Accuracy ±1% F.S. •
Resistivity Range 0.00~30.00MΩ •
Resolution 0.01,0.1,1 •
Accuracy ±1% F.S. •
Conductivity Ash Range 0-100% •
Resolution 0.01,0.1,1 •
Accuracy ±1%F.S. •
Measurement Modes Refined sugar or raw sugar •
Temperature Range 0-105°C/32-221°F •
Resolution 0.1°C/0.1°F •
Accuracy ±0.5°C/±0.9°F •
Offset Calibration 1 point, reading ±10°C •
Other Specifications Temperature Compensation 0~100°C manual or automatic •
Temperature Coefficient Linear (0.0~10.0%/°C), non-linear, pure water •
Reference Temperature 20/25°C •
Cell Constant 2-pole electrodes (K=0.1, 1, 10) or 4-pole electrode •
Stability Criteria Standard or high-accuracy •
Calibration Due Alarm 1 to 31 days or off •
Interval Readings 10, 30, 60 seconds, 10, 30 minutes or off •
Password Protection 4 digits •
Memory 1000 data sets •
Communication Interface USB •
Connector 6-pin mini-DIN,3.5mm jack socket •
Display 7 inches TFTLCD •
Power Requirements DC 12V power adapter •
Dimensions 240(L)×220(W)×8O(H)mm •
Weight 1.7kg •
