- pH Range: -2.00 to 18.00 pH
- pH Resolution: 0.01pH
- pH Accuracy: ±0.01 pH
- IP54 Waterproof
- 1-3 points calibration
- 50 Sets Data storage For Each Parameter
- Automatic/Manual temperature compensation
- Measurement Parameters: pH, mV, Temp.

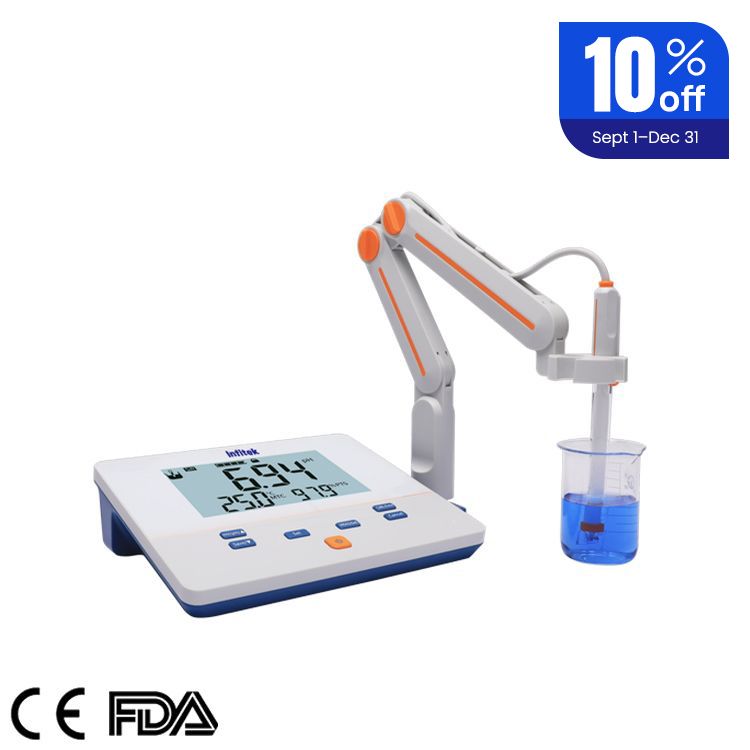

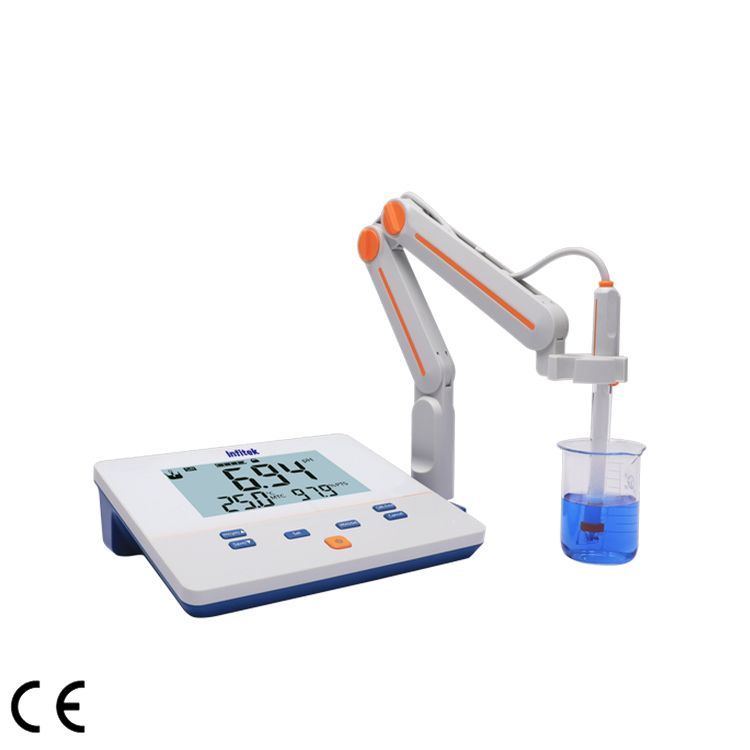

Benchtop pH Meter, PH-B200E/PH-B200EM
Description
Description
PH measurement has a wide range of applications. It is now widely used in colleges, environmental protection, medicine, food, health, geological exploration, metallurgy, marine exploration and other fields. PH measurement is required for common acid rain detection, surface water, industrial wastewater, drinking water, beverages, daily chemical products, textiles, etc.
Advantages
- 6-inch high resolution LCD display screen.
- Multi-reading feature allows auto-read and continuous-read.
- Automatic/Manual temperature compensation ensures accurate results.
- Auto-hold feature senses and locks the measurement endpoint.
- Data storage 50 sets for each parameter.
- Reset feature automatically resumes all settings back to factory default options.
- IP54 waterproof.
- 1-3 points calibration with standard recognition.
- Manual temperature compensation ensures accurate results
| Model | PH-B200EM | PH-B200E | |
| Parameters | pH/mV | pH/Temp.(mV) | |
| pH | Range | -2.00 to 18.00 pH | |
| Resolution | 0.01pH | ||
| Accuracy | ±0.01 pH | ||
| Calibration Points | Up to 3 | ||
| Standard Recognition | NIST buffers | NIST buffers (pH1.68, pH4.01, pH7.00, pH10.01 ) | |
| Temperature | Range | / | -5 to 110 ºC(23 to 230 ºF) |
| Unit | / | ºC | |
| Resolution | / | 0.1 | |
| Accuracy | / | ±0.2 | |
| mV | Range | -1999 to 1999 mV | |
| Resolution | 1 mV | ||
| Accuracy | ±0.1%FS | ||
| Measurement | Reading Mode | Auto Read, Continuous | |
| Reading Prompts | Reading, Stable, Locked | ||
| Temp. Compensation | MTC | ATC, MTC | |
| Data management | Data Storage | 50 results each | |
| Inputs | pH Electrode | BNC(Q9) | |
| Temp. Probe | / | 4-pin aviation connector | |
| Display options | Backlight | Yes | |
| Auto Shutdown | 300, 600, 1200, 1800, 3600 sec., off | off, 300 Sec, 600 Sec, 900 Sec, 1200 Sec, 1500 Sec, 1800 Sec, 2100 Sec, 2400 Sec, 2700 Sec, and 3600 Sec. |
|
| IP Rating | IP54 | ||
| General | Electricity | AC Adapter, 100-240V AC input, DC9V output | AC Adapter, 100-240V AC input, DC20V/1500mA output |
| Dimensions | W242×D195×H68 mm | ||
| Package Dimension | W360×D300×H230 mm | 370×300×240mm | |
| N.W./G.W. | 900g/2.6kg | 2.7kg/0.9kg | |
