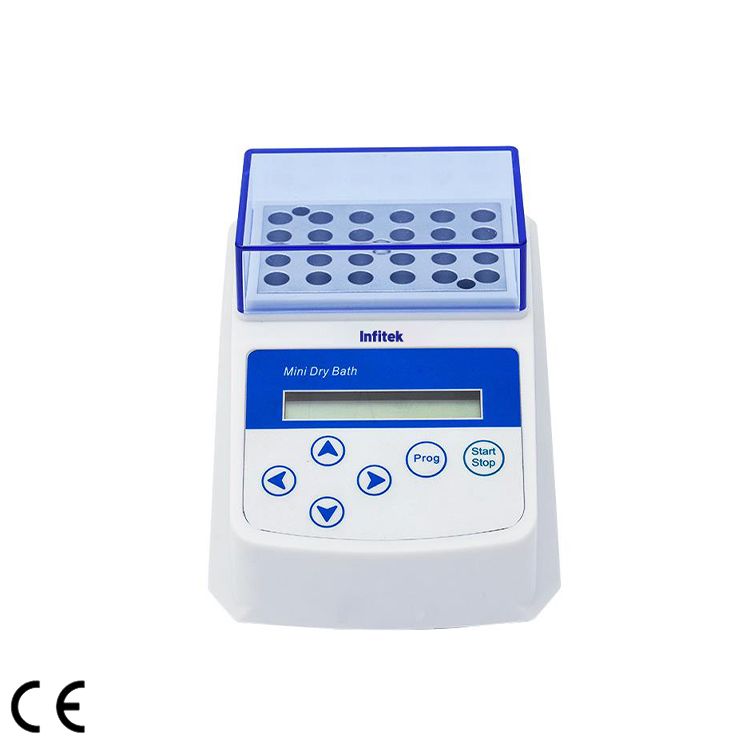

Block Heater, DBI-100V/DBI-R100V

  • Heating Up Rate(20℃~100℃ ): ≤ 15min
  • Timer: 0~99h, 0~99m, 0~99s
  • Temperature: up to 100℃

Share the product



It is controlled by PID, applied to vehicle power supply due to small palm-size and light weight. Widely used in rapid inspection kit or small labs.

  • Display with timer and temperature.
  • DC 12V, built-in over temperature protection.
  • Automatic failure detection with buzzer alarm.
  • Easy to change blocks.
  • 9 Stored programs, each contains 3 segments.


Model DBI-100V DBI-100V

(Heating lid)

Temperature Control Range RT+5℃ ~100℃ RT-30℃ ~100℃
Temperature Set Range 0℃ ~100℃ -10℃ ~100℃
Heating Up Rate(20℃~100℃ ) ≤ 15min
Temperature Control Accuracy ±0.3℃


Temperature Stability@40℃ ±0.3℃


Temperature Stability@100℃ ±0.3℃


Display Accuracy 0.1℃
Timer 0~99h, 0~99m, 0~99s
Max.Temperature 100℃
Max.Power 48W 60W 120W
Cooling Down Rate Natural cooling ≤ 30min 100-25℃
≤ 30min RT.- 20℃
Heating Lid No Yes No
Dimension(W*D*H) 110*160*96mm 110*160*136mm 110*160*136mm
N.W./G.W.  0.9 kg/1.5kg 1kg/1.7kg 1.1kg/2.1kg
Shipping Dimension(L*W*H) 290*230*210mm 290*230*210mm 290*230*210mm
