- Function: Heating, Cooling, Mixing
- Temp. control range: RT+0℃/5℃～100℃
- Optional blocks: 4-96 wells for 0.2-50ml tubes
- Three-point temperature calibration
- Programmable

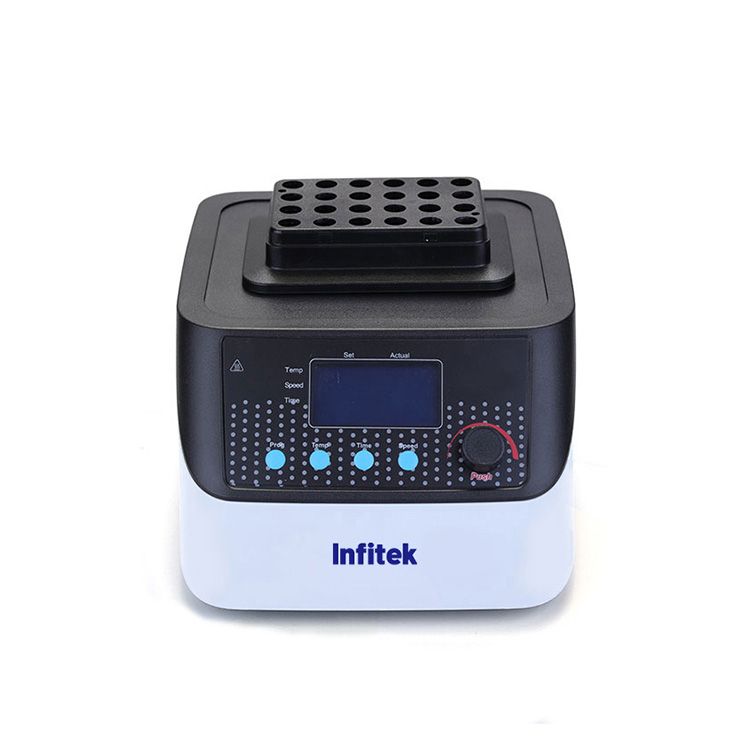

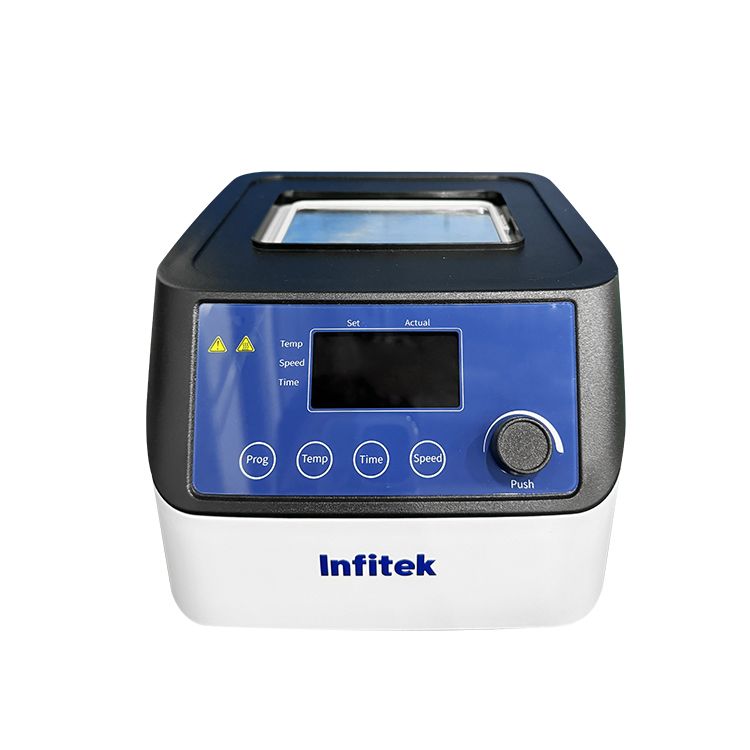

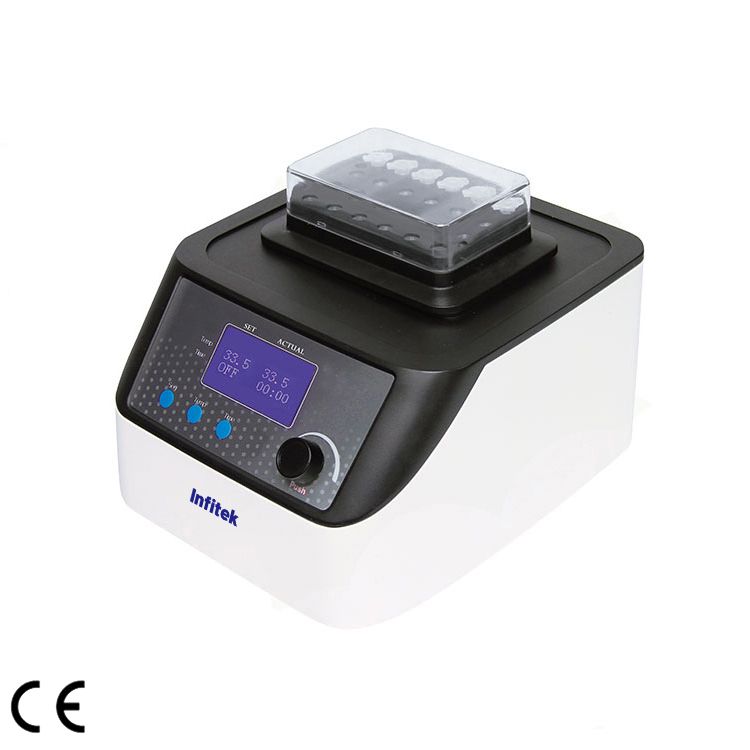

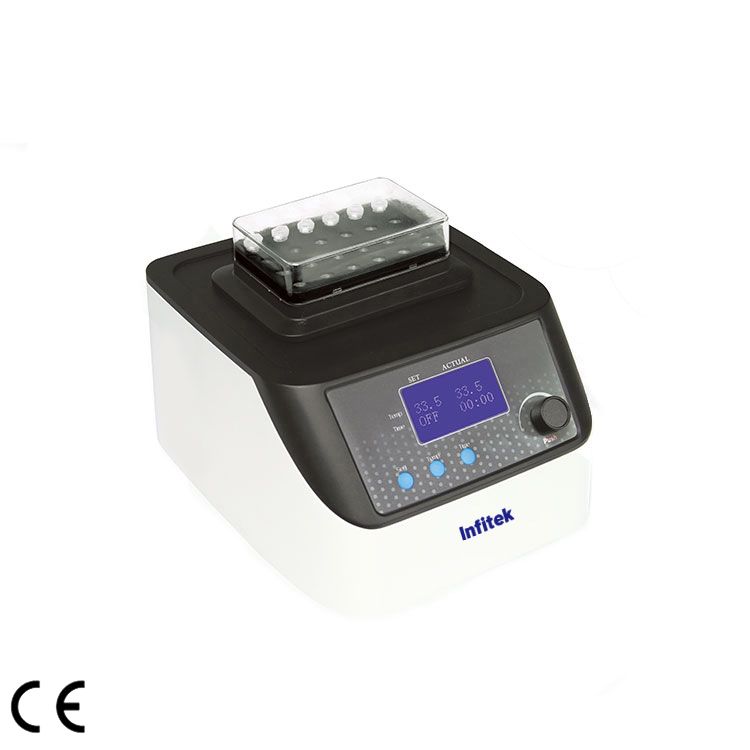

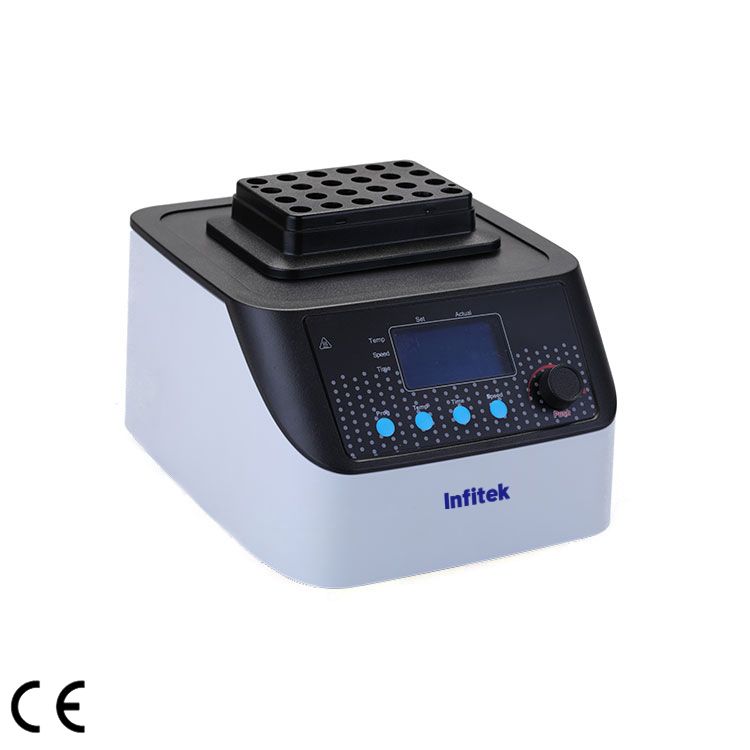

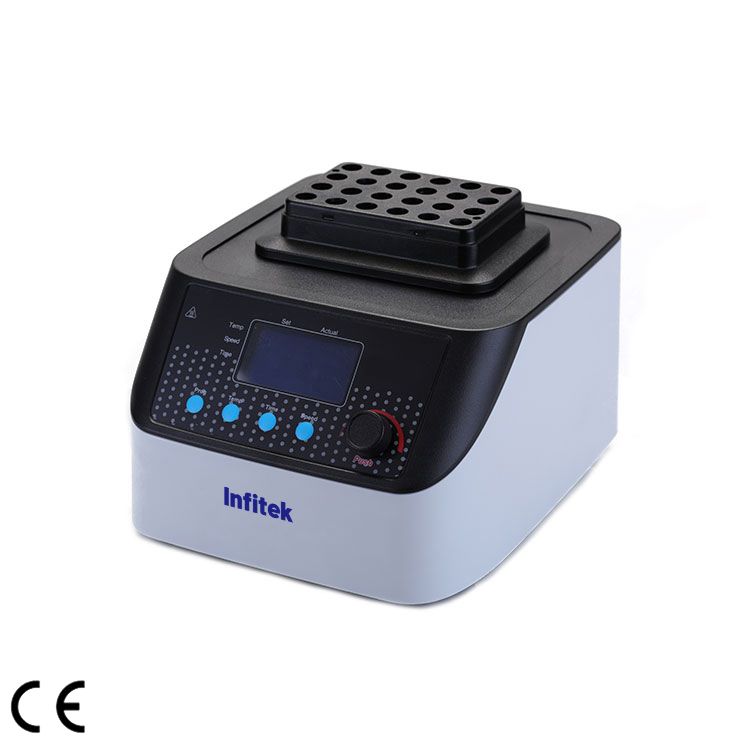

Dry Bath / Block Heater, DBI-100 Series
Description
DESCRIPTION
DESCRIPTION
- Excellent mixing result.
- Stable and wide range of speed adjustment.
- Precise temperature control for heating and cooling.
- Flexible adapter selection.
- Programmable.
- Compatible with various tubes.
- Quick interchange of blocks with magnet adhesion technology without any tools.
- Block equipped with a lid for heat preservation.
- Three-point temperature calibration.
SPECIFICATIONS
SPECIFICATIONS
| Specifications | DBI-RS100 | DBI-S100 | DBI-100III |
| Functions | Heating, cooling & mixing | Heating & mixing | Heating |
| Temperature range | Heating: room temp.-100℃ Cooling: room temp.-below room temp. 15℃ |
Heating: room temp. -100℃ | Heating: room temp.+5℃-100℃ |
| Temperature setting range specifications (℃) | 0.1~100 | 15~100 | 15~100 |
| Temperature control accuracy (@20-45℃) | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Temperature uniformity (@20-45℃) | ±0.5℃ | ±0.5℃ | ±0.5℃ |
| Max. heating rate | 5.5℃/min | 5.5℃/min | 5.5℃/min |
| Max. cooling rate | 5℃/min(100℃-room temp.) 0.5℃/min (below room temp.) |
– | – |
| Mixing frequency | 200rpm-1500rpm | 200rpm-1500rpm | – |
| Mixing orbit | 3 mm | 3 mm | – |
| Time setting range | 0~99h30min | 0~99h30min | 0~99h30min |
| Program | 9 | 9 | 9 |
| Overheating protection | 150℃ | 150℃ | 150℃ |
| Display | TFT | TFT | TFT |
| Adapter block material | aluminum | aluminum | Aluminum |
| Voltage, Frequency | 100V-240V, 50Hz/60Hz | 100V-240V, 50Hz/60Hz | 100V-240V, 50Hz/60Hz |
| Power | 200 W | 200 W | 200 W |
| Dimension (W×D×H) (without the heating block) | 200mm×235mm×120mm | 200mm×235mm×120mm | 200mm×235mm×120mm |
| Weight | 7.3 kg | 7.3 kg | 7.3 kg |
| Package Dimension (W*D*H)(mm) | 420mm×390mm×250mm |
