- Temp. Setting range: 5 gears, 25/30/37/45/60℃
- 5mL×30+10mL×8 dual purpose heating block
- Timer function support available
- Low profile – space saving design

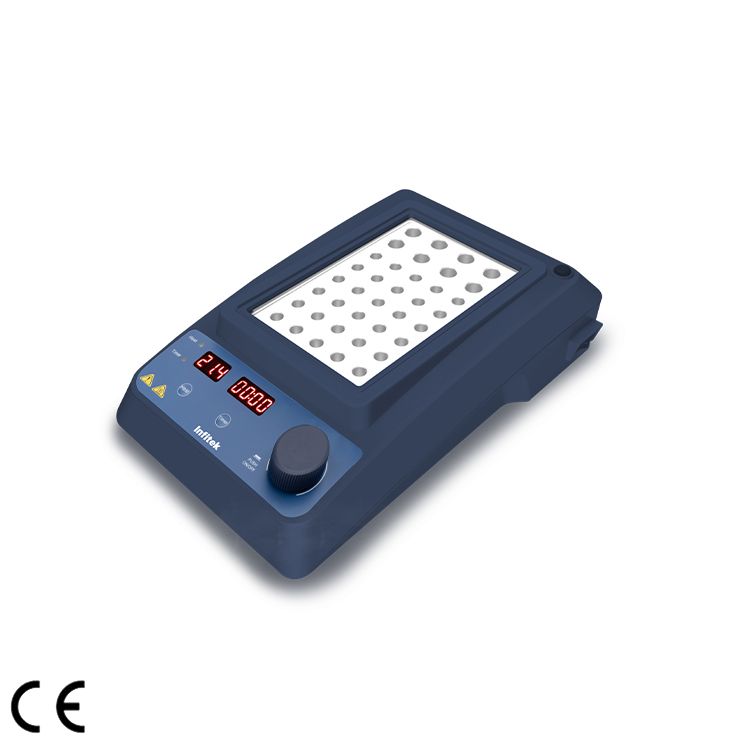

LED Digital Dry Bath / Block Heater, DBI-60
Description
1. Excellent temperature control accuracy and uniformity to protect samples and ensure precision result of tests.
2. Timer function and continuous function are available to meet different applications.
3. Fast heating rate to improve the efficient workflow.
4. Especially suitable for sample preparation of semiautomatic biochemistry analyzer.
5. 5ml and 10ml mixed heating block.
6. Overheating protection.
Specifications
| Specifications | DBI-60 |
| Heating temperature range | 5 gears: 25℃, 30℃, 37℃, 45℃, 60℃ |
| Temperature accuracy | ±0.5℃ |
| Temperature uniformity | ±0.3℃ |
| Max. heating rate | 5.5℃/min |
| Safety temperature | 80℃ |
| Time setting range | 0min-99h59min |
| Operation type | Continuous/timer operation |
| Capacity | 30×5mL+8×15mL |
| Display | LED |
| Voltage (VAC) | 200~240 |
| Frequency (Hz) | 50/60 |
| Power (W) | 160 |
| Dimensions (W×D×H) | 175mm×290mm×85mm |
| N.W. / G.W. | 2.5kg / 4.5 kg |
| Package Dimension (W*D*H) | 500*370*300mm |
| Block types | Capacity | Diameter Depth |
 |
28×5/10mL | Φ13mm/15.25mm 33mm |
