Description

1. A wide range of temperature control up to 120°C

2. Timer function support is available

3. Various types of optional blocks are available

4. Overheating protection

5. Lid for protection and heat preservation

Specifications

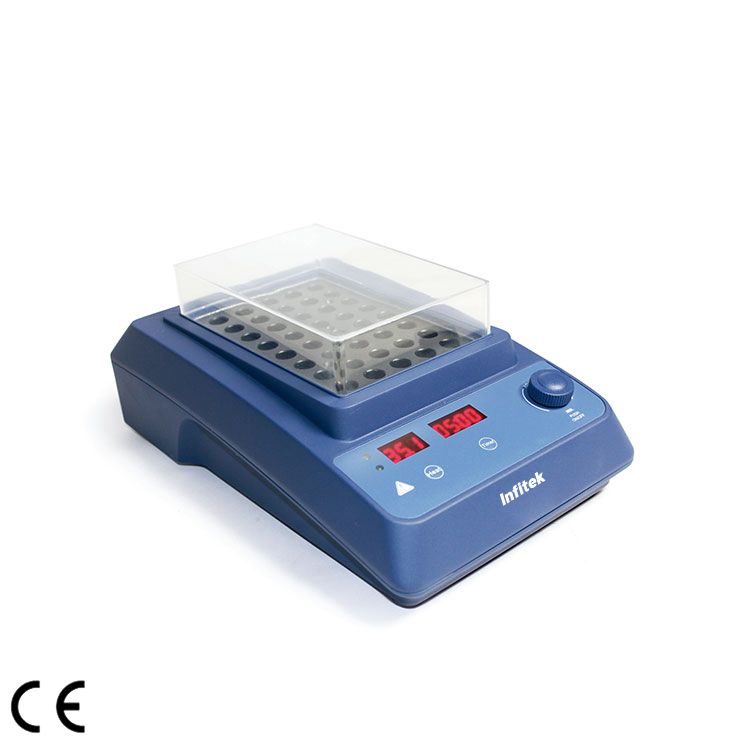

Model	DBI-120
Functions	Heating
Temperature range	Room temp.-120°C
Temperature control accuracy [at 37°C]	± 0.5°C
Temperature uniformity	± 0.5°C
Max. heating rate	5.5°C/min
Timer	0min-99h59min
Screen	LED
Overheating protection	140°C
Adapter block material	aluminum
Voltage, Frequency	100-120V/220-240V,50Hz/60Hz
Power	160W
Dimension[W×D×H ]	175 x 290 x 85mm
Weight	3kg

Optional blocks:

Cat. No.	Block types	Capacity	Diameter Depth
Standard: 18900218 Thin: 18900274		54×0.2 mL	6.4 mm 15 mm
Standard: 18900219 Thin: 18900275		40×0.5 mL	8.2 mm 26.4 mm
Standard: 18900253 (1.5 mL) 18900220 (2 mL) Thin: 18900276 (1.5 mL) 18900277 (2 mL)		40×1.5 mL 40×2 mL	11 mm 34.7 mm
Standard: 18900221		28×5/15 mL	17 mm 48 mm
Standard: 18900546		45×5 mL blood collection tube	13.5 mm 48 mm
Standard: 18900222		8×50 mL	29.8 mm 48 mm
Standard: 18900224 Thin: 18900278		18×0.2mL+18×0.5mL+18×1.5/2mL	–
Standard: 18900223 Thin: 18900279		96 or 284 well plate	–
Thin: 18900504		8 PCR strips and 96 PCR microplate	–
18900523		Two-in-one block, bead bath/water bath	–
