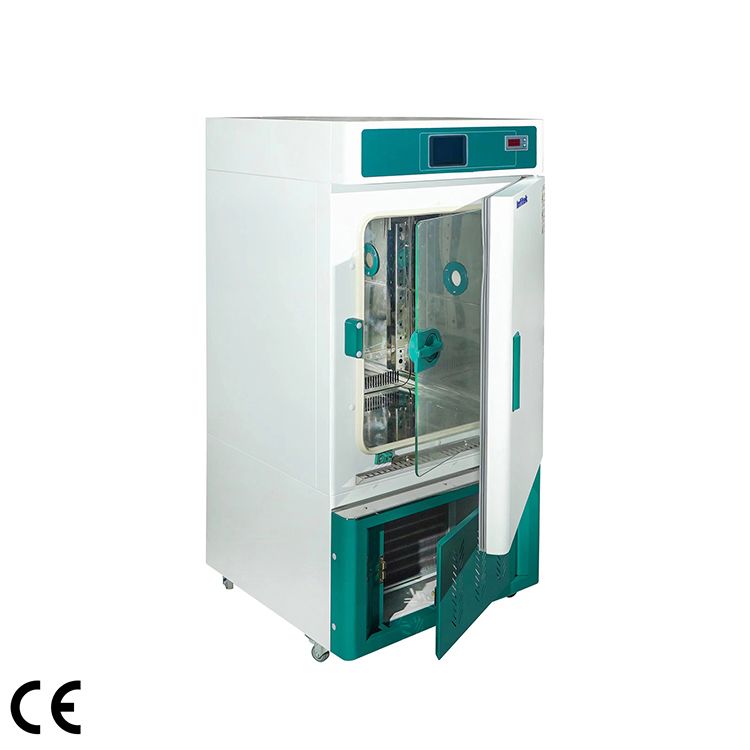

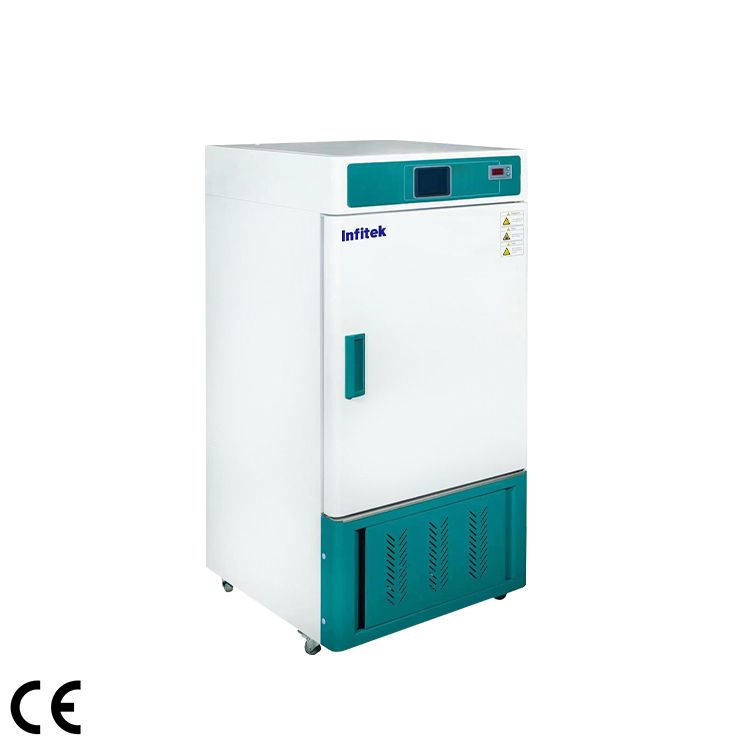

BOD Incubator, ICB-BP Series

  1. Interior Volume: 70L, 150L, 250L
  2. Temp. range: 0~65℃
  3. Inner Chamber: Mirror Sainless Steel
  4. Insulation layer: Polyurethane
  5. Compressor: Air cooled hermetic compressor

Share the product


The product is applicable to scientific research institutes, colleges and production departments engaged in environmental protection, epidemic prevention, drug testing, livestock, and aquatic products. It’s a piece of dedicated thermostatic equipment for water analysis and measurement, culture and conservation of bacteria, muscadine and microorganisms, plant cultivation, and breeding experiment.

The sealing ring of incubator adopts a new type of synthetic silicone sealing strip, which effectively prevents heat loss.
Automatically adjust the control parameters according to the ambient temperature and load to achieve the optimal heating method and reduce energy consumption.
High efficiency and energy saving compressor, stable temperature control and low power consumption.

Intelligent control
5.0 inches touch screen 30-segment program temperature microcomputer controller, repeated step movement, step running.

Internal circulation system
Bottom forced convection system.
Adopts high-quality fan and large impeller fan, has higher ventilation efficiency and better temperature uniformity.
Dedicated sheet metal processing
The shelf can be disassembled and can be freely adjusted up and down.
The inner chamber is made of high-quality mirror stainless steel, with strong corrosion resistance.
Humanized design
Double door design, the inner door is made of tempered glass for easy observation,magnetic sealing design outer door,with good sealing.
The anti-scalding design of the door handle makes it easy to open and close the door.
With over temperature control of visible& audible alarm system.
Temperature curve view, reservation start.
Standard UV germicidal lamp,digital temperature limiter.
Loop self diagnosis

Shelf, RS485 port, build-in printer, data recorder, remote control, USB data storage


Model ICB-B70P ICB-B150P ICB-B250P
Cycle Mode Forced convection
Function Temp. range 0~65℃
Temp. Resolution Ratio 0.1℃
Temp. Motion High Temp.:±0.5℃ Low Temp.:±1℃
Temp. Uniformity ±1℃
Structure Inner Chamber Mirror Sainless Steel
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Polyurethane
Heater Stainless steel heater
Power rating 0.8kW 1.0kW 1.2kW
Compressor Air cooled hermetic compressor
Cryogen R134a
Defrost structure Automatic control intelligent defrosting
Test hole 43mm
Controlled external power supply Universal socket (one)
Temp.Control mode S:Color screen LCD program P:5.0 inch touch screen
Temp. setting mode Touch button setting
Temp. display mode Measuring temperature: LCD upper screen;
Setting temperature: the lower row
Timer 0~99.9h×30 Segment
Operation function Program operation
Sensor PT100
Additional funciton S model:  LED light, Deviation correction,Menu key lock,
Power failure parameter memory;
P model additional character:  loop self diagnosis
Safety device Over temperature alarm, digital temperature limiter
Specification Inner Chamber size(W*L*H)(mm) 420*350*500 500*500*600 600*500*840
Exterior size (W*L*H)(mm) 580*610*1190 660*760*1290 760*760*1530
Packing size (W*L*H)(mm) 708*716*1368 788*866*1468 888*866*1708
Volume 70L 150L 250L
Load per rack 15kg
Shelf number 9 12 18
Shelf space 35mm
Power Supply Current rating AC220V/2.3A AC220V/3.6A AC220V/5.5A
NW/GW (kg) 69/92 86/114 100/139
Shelf 2
optional accessories Shelf, Touch screen controller, RS485 interface, Printer, Recorder,
Remote control, Wireless SMS alarm, USB data storage
