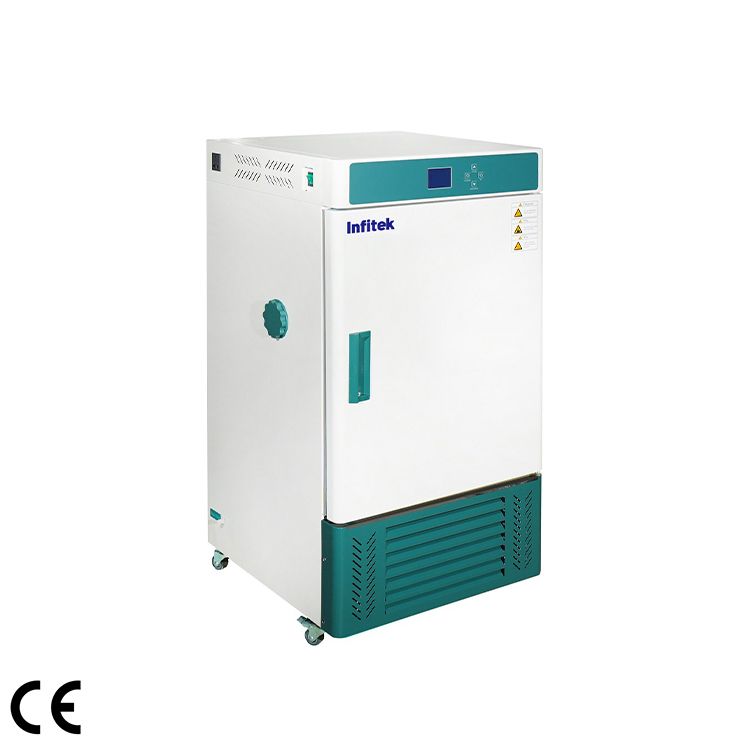

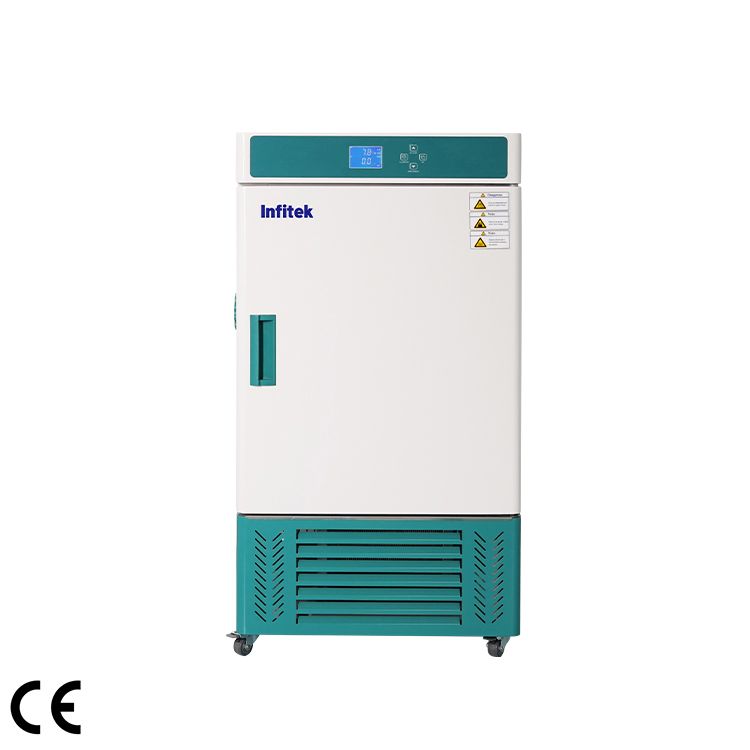

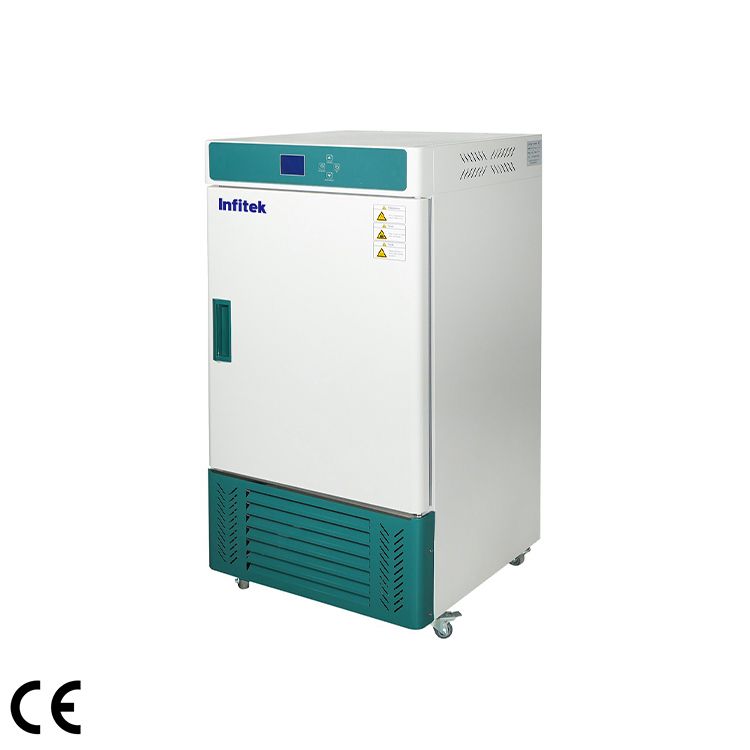

The infitek BOD Incubator precisely controls temperature and humidity for accurate BOD testing and microbial growth.
DESCRIPTION
DESCRIPTION
1.Stainless steel inner chamber, foursquare senicicle transition, convenient to clean; space between shelves is adjustable.
2.Micro-computer control system; LCD with functions of time setting, parameter memorizing and power reset recovering.
3.Fluoride-free refrigeration and gentle breeze circulation.
4.Test hole of Φ52mm at left side of container.

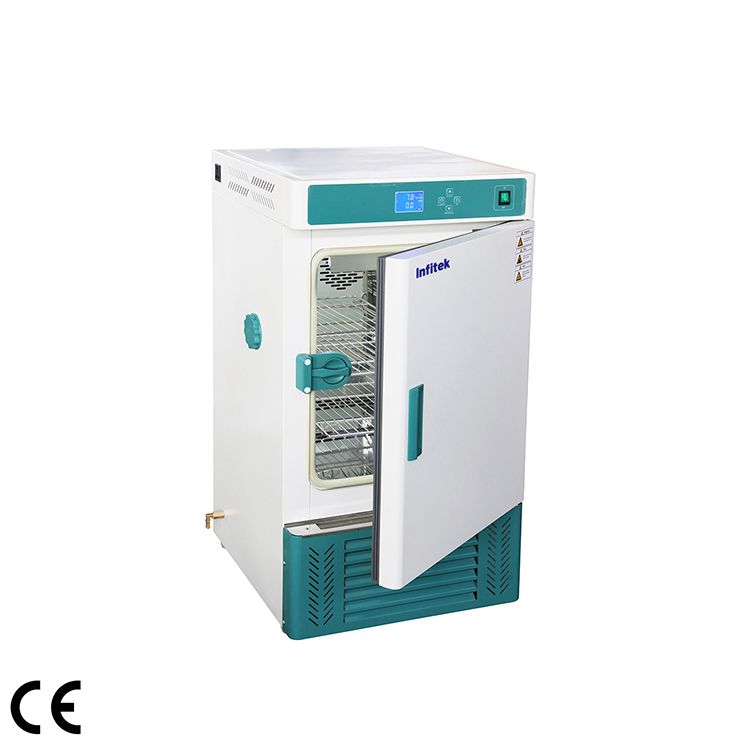

5.Double door seal; tempered glass silicon rubber seal inner door and magnetic rubber seal outer door, which are convenient to on/off; inner chamber with light for convenient observation.
Double door seal; tempered glass silicon rubber seal inner door and magnetic rubber seal outer door, which are convenient to on/off; inner chamber with light for convenient observation.
SPECIFICATIONS
SPECIFICATIONS
| Model | ICB-B70E | ICB-B150E | ICB-B250E | |
| ICB-B70 | ICB-B150 | ICB-B250 | ||
| Cycle Mode | Forced convection | |||
| Function | Temp. Range | 0～65℃ | ||
| Temp. Resolution Ratio | 0.1℃ | |||
| Temp. Motion | High Temp.: ±0.5℃ Low Temp.: ±1℃ | |||
| Temp. Uniformity | ±1.5℃ | |||
| Structure | Inner Chamber | Mirror Stainless Steel | ||
| Outside Material | Cold rolling steel electrostatic spraying exterior | |||
| Insulation Layer | Polyurethane | |||
| Heater | Stainless steel heater | |||
| Power Rating | 0.8kW | 1.0kW | 1.2kW | |
| Compressor | Air-cooled hermetic compressor | |||
| Cryogen | R134a | |||
| Defrost Structure | Automatic control intelligent defrosting | |||
| Test Hole | Inner diameter 43mm(one) | |||
| Controlled External Power Supply | Outer universal socket (one), inner waterproof socket(one) | |||
| Temp. Setting Mode | Touch button setting | |||
| Temp. Display Mode | Measuring temperature: LCD upper screen; setting temperature: the lower row | |||
| Timer | E model：0～99.9h Without E model：0～99.9h×30 segment(with timing wait function) | |||
| Operation Function | E model：Fixed value operation、timing function, auto stop. | |||
| Without E model：Program operation | ||||
| Sensor | PT100 | |||
| Additional Function | E model：LED light, Deviation correction, Menu key lock, Power failure parameter memory | |||
| Without E model: Loop self diagnosis, sensor fault alarm | ||||
| Safety Device | Over temperature alarm | |||
| Specification | Inner Chamber Size(W×L×H)(mm) | 415×350×500 | 490*400*750 | 500*500*950 |
| Exterior Size (W×L×H)(mm) | 571×591×1051 | 646*641*1301 | 656*741*1501 | |
| Packing Size (W×L×H)(mm) | 676×680×1235 | 751*730*1490 | 761*830*1690 | |
| Volume | 70L | 150L | 250L | |
| Load per rack | 15kg | |||
| Shelf Number | 5 | 9 | 12 | |
| Shelf Space | 60mm | |||
| Power Supply Current Rating | AC220V/2.3A | AC220V/3.6A | AC220V/5.5A | |
| NW/GW (kg） | 69/92 | 86/114 | 100/139 | |
| Accessory | Shelf | 2 | ||
| Shelf Frame | 4 | |||
| Optional Accessories | Shelf, touch screen controller, RS485 interface, printer, remote control, USB data storage | |||
