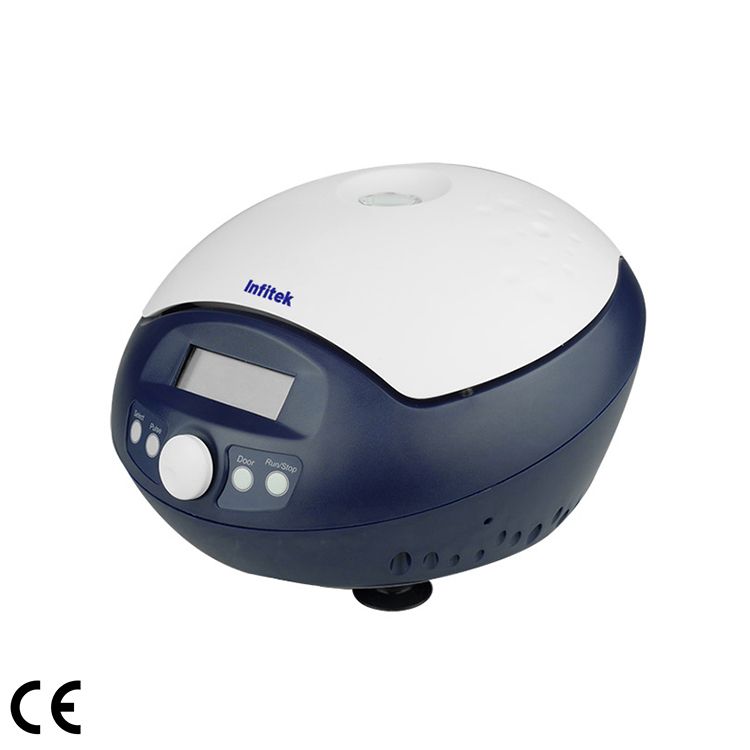

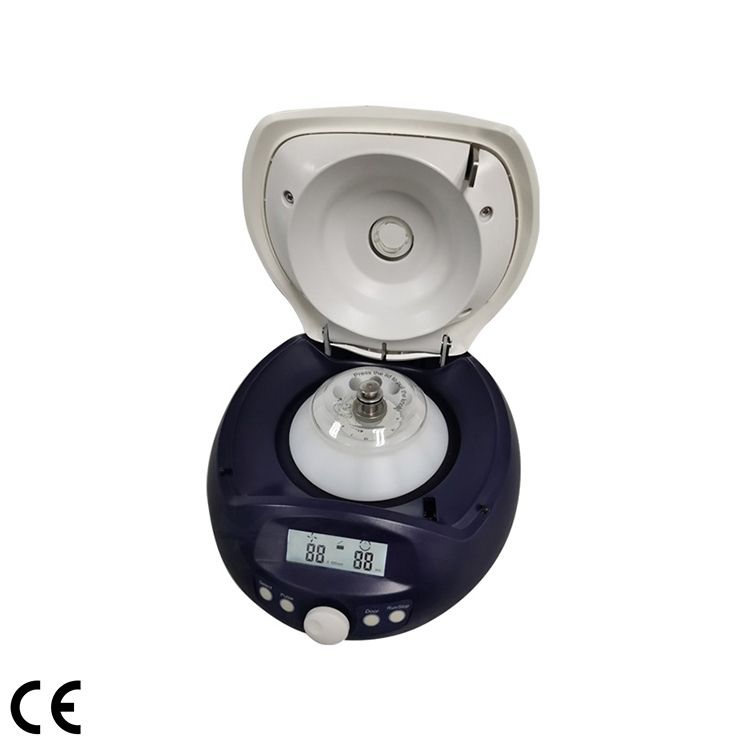

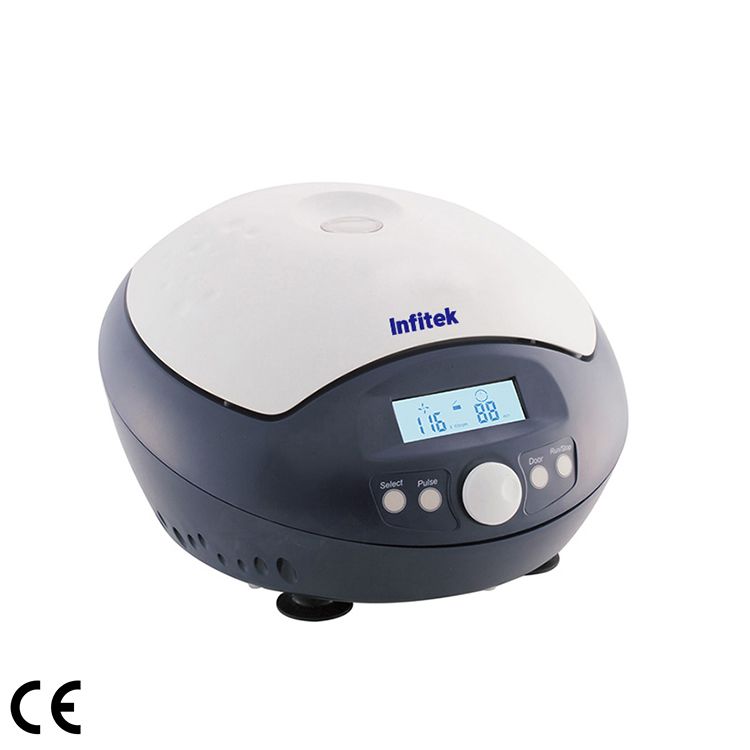

Mini Centrifuge, High Speed, CFG-Mini15D

  • Max. Speed: 15000rpm
  • Max. RCF: 15100×g
  • Rotor Capacity: 0.2mL/0.5mL/1.5mL/2mL×12

Share the product


  • Speed up to 15000rpm (15100×g)
  • Brush-less DC motor drive quickly to the target speed
  • Quiet working, Low noise ≤54dB
  • CFG-Mini15D is proven by IEC/EN 61010-1
  • CFG-Mini15D passed the rigorous explosion-proof test according to IEC/ E/V 61010-2-20.


Specifications CFG-Mini15D
Max. Speed 15000rpm(500-15000rpm), increment: 100rpm
Max. RCF 15100×g, increment: 100×g
Speed Accuracy ±20rpm
Rotor Capacity 0.2mL/0.5mL/1.5mL/2mL×12
Run Time 30sec-99min/Continuous
Acceleration/Braking time 11s↑/9s↓
Driving Motor Brushless DC motor
Safety Devices Door interlock, Over-speed detection, Over-temperature detection, Automatic internal diagnosis
Power Single-phase, AC100V-240V, 50Hz/60Hz, 3A 100W
Noise level ≤54dB
Dimension[D×W×H] 255mm×245mm×140mm
Weight 6kg
Other functions Speed/RCF switch, Short-time run function, sound-alert function

Available rotors

Cat. No.19400010

for CFG-Mini15D only

Max. speed: 15000rpm

Max. RCF: 15100×g

Rotor capacity: 2mL/1.5mL×12,0.2mL×12,0.5mL×12

Rotor material: High strength plastic

Available rotor adapters: A02P2, A05P2

Available adapters

Cat. No.19500001

0.2mL rotor adapter

24 pcs/pk

Cat. No.19500002

0.5mL rotor adapter

24 pcs/pk
