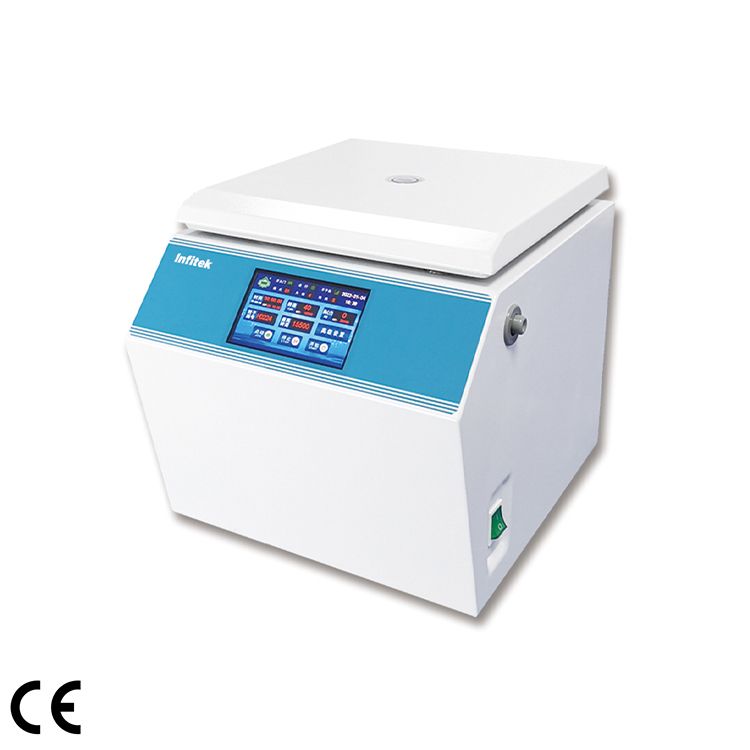

High Speed Centrifuge, CFG-18.5JP

  • Max Speed: 18800rpm
  • Max RCF: 26870xg
  • Max Capacity: 10mlx12

Share the product

Description

Description

The centrifuge adopts microcomputer control, large-screen color LCD display, and full touch-screen operation interface to directly set the working program, RCF, speed, time, acceleration and deceleration, and rotor model.

Features

  1. Brushless AC variable frequency motor drive and special drive module ensure the reliability of the circuit.
  2. Double door cover lock system, starting means locking, ensuring safe operation.
  3. Provides 20 kinds of working program storage, users can freely program and call theirworking parameters, which is easy to use and improves work efficiency.
  4. Two timing functions: at set rpm and start timing, and the jog is short spin function.
  5. Differential centrifugation: Five differential centrifugation programs are reserved, and users can set them according to their needs.
  6. Double-layer steel structure and stainless steel centrifugal chamber to avoid corrosion.
  7. Automatic balance and imbalance protection. When an error or imbalance occurs, an audible alarm signal will be issued and the centrifuge will automatically stop running.
  8. Easily adjust speed, RCF, time and temperature during operation without
  9. Braking function that can effectively prevent samples from being resuspended and protect sensitive samples.
  10. Multi-stagedamping design ensures the best sample centrifugation effect.
  11. Countdown function: Countdown in seconds and display remaining working time in real time.
  12. Automatically recognizes the magnetic rotor, no need to manually set the rotor model, and has overspeed protection.
  13. The rotor can be autoclaved at 121°C for more than 2 hours. Airtight angle rotor with high biological safety.

Specifications

Model CFG-18.5JP
Max.Speed 18800rpm
Max.RCF 26870xg
Max.Capacity 10mlx12
Speed Accuracy ±10rpm
Timing Range 1s~99h59min59s/Jog (short spin)
Sound Emission ≤58dB
Electricity AC 220V, 50Hz, 10A
Power 400W
Dimension(W*D*H) 426*322*340mm
N.W./G.W. 28kg/31kg
Package Dimension(W*D*H) 490*430*480mm

Rotor Configuration

Rotor Capacity Max. Speed Max.RCF
H0.136 Blood Capillary

L75mmx36 tube

12000rpm 16904xg
H0.232 0.2mlx4x8tube 13500rpm 14059xg
H0.264 0.2mlx8x8tube 13000rpm 14926xg
H0.512 0.5mlx12 18800rpm 18967xg
H0.524 0.5mlx24 18800rpm 26870xg
H0.548 0.5mlx48 13000rpm 14737xg
H0212 1.5/2.2mlx12 18800rpm 26870xg
H0224 1.5/2.2mlx24 15800rpm 24365xg
H0312 3mlx12

Vacuum test tube

8000rpm 4866xg
H0512 5mlx12 16000rpm 19462xg
H0712 5mlx12

Vacuum test tube

8000rpm 7119xg
H1012 10mlx12 13500rpm 17645xg
H0612 5mlx12

Cryogenic vials

13000rpm 16155xg
