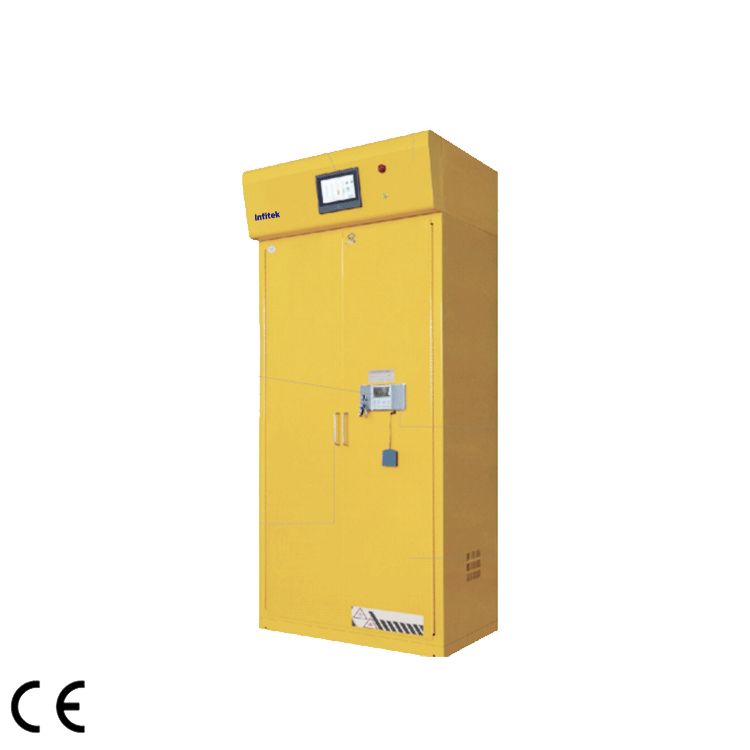

Fireproof and Gas-Purifying Chemical Safety Cabinet, SSC-F910Y, F910B

1、The turbine motor draws the air from the outside of cabinet.

2、The air brings the hazardous vapour into the filtration system

3、Choose a proper high efficient filter according to the chemicals

4、The hazardous air goes though molecular filter become fresh air

5、Touch screen control system:Temperature,humidity, density and other data are displayed on one screen

6、Fan and filter system automatically works

7、when it detects a certain density pollution.

8、Electric power：complies with GB10409 2001,5.5

9、Double locks should be controlled by two people

10、Fireproof material is between the two walls.

11、Electronic lock system with LCD screen, which is compliance with GAVT73 standard.

12、Electronic lock is compliance with GB 10409 20015.4

13、ALL connecting screws and handle are 304 material

14、The internal liner of flammable poison storage cabinet(up,down,ef,right liner) are all made of porcelain white PP(Polypropylene) board, and there is adjustable intake vent in the right side of cabinet,which has stainless adjustable valve. A landfill cavity can hold sand thicker than 120mm on the right bottom of the cabinet(liquid leakage sump),which is used to bury metallic sodium. Phosphorus(white phosphorus) and other flammable items,apron and cabinet body should be connected as one part. There are 4 pieces Φ50mm nylon wheels set on the bottom of cabinet, easy to move the cabinet , and 2 pieces adjustment lever on the front wheels, for adjusting the level of flammable pensions storage cabinet.

15、There are 3 pieces 3 layers stain style PP removable shelves,which are made of imported anti-corrosive white PP material, and there is 10mm vent in the shelf.

16、Hinge: the hinge should be piano hinge,which ensures the door can be opened 180 degree. There are expansive seals between the body and door of the cabinet, and seals conform to the requirement of GB 16807-2009(There should be installed the environmental thermal expansive seal between the cabinet door and cabinet. The seal can be partially expanded when the temperature is 150-180°. The seals all expand when the temperature reached 750° ,expansion ratio is 1:5,ensuring the safety of stored medicine)

17、Temperature and humidity alarm device:It should be installed a temperature and humidity control,to monitor the relative temperature and humidity in the cabinet,digital display settings and measured values, and it will alarm immediately once the temperature and humidity exceed the setting measures values. Silent turbine fan draws chemical vapors from bottles into filter system with high absorption capacity, No static,no spark and super silence motor. Various tape filters can realize 99.99% high efficiently filtering.
