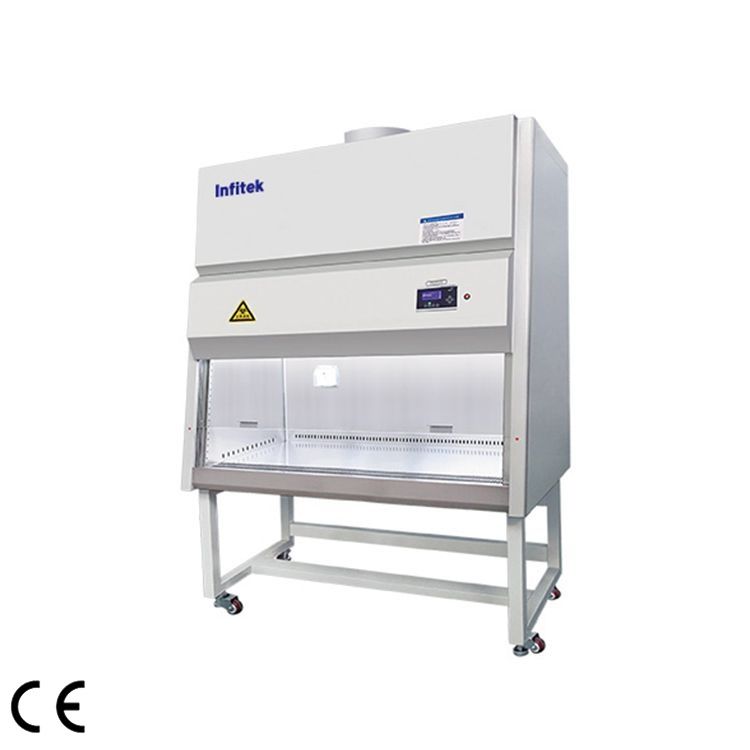

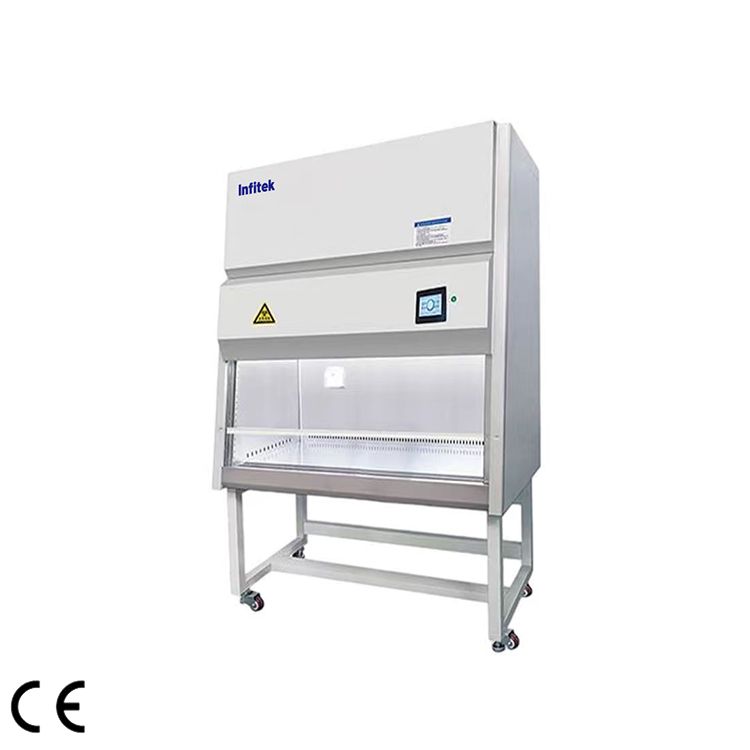

Class II Type B2 Biosafety Cabinets, BSC-IIB2-5J

  • Classification: Class II Type B2
  • Cleanliness level: ISO level 4
  • Filters: ULPA(U15)*2pcs
  • Air flow mode: 100% discharge, 0 internal circulation
  • Vertical laminar negative pressure model
  • Working zone size: 1600*520*640mm

Share the product

Description

BSC biosafety cabinets are biological safety isolation equipment used in biological safety laboratories or other laboratories to protect personnel, tested samples and the environment. It can meet the operation of pathogenic body with risk level of 1, 2 and 3.

High-Quality & Ergonomic Construction

  • The outer box is made of high-quality cold-rolled steel plate with electrostatic spraying;
  • The three sides of the operation area are made of stainless steel integrated structure;
  • Internal washable parts are treated with 10mm large rounded corners, which is easy to clean;
  • 10° inclined design, making the operator more comfortable;
  • The exhaust air is filtered by a high-efficiency filter to protect the environment from pollution;

Energy-efficient

  • Class II type B2 biological safety cabinet;
  • Vertical laminar negative pressure model, air flow mode: 100% discharge, 0 internal circulation.

High security

  • Negative pressure design ensures the safety of operators;
  • Integrated sliding safety door positioning, easy to operate;
  • Equipped with filter blocking alarm, blower overload alarm, working window opening limit alarm system;
  • The exhaust air is filtered by a high-efficiency filter to protect the environment from pollution;

Energy-efficient

  • Class II type B2 biological safety cabinet;
  • Vertical laminar negative pressure model, return air 30%/100% filtration discharge;

High security

  • Negative pressure design ensures the safety of operators;
  • Integrated sliding safety door positioning, easy to operate;
  • Equipped with filter blocking alarm, blower overload alarm, working window opening limit alarm system;

Specifications

Model BSC-IIB2-5J
Classification Class II Type B2
Cleanliness level ISO level 4
External Dimensions(W*D*H)(mm) 1765*760*2200
Working Zone Dimensions(W*D*H)(mm) 1600*520*640
Maximum Opening(mm) 470
Work Surface Height(mm) 730
Base Height(mm) 630
Filtration efficiency ≥99.9995%,@0.12μm
Filters ULPA(U15)*2pcs
Downflow air velocity(m/s) 0.25~0.40
Inflow air velocity(m/s) ≥0.5
Sound emission ≤67dBA
Vibration peak ≤5μm
Biological safety personnel protection a.The total number of colonies in the impact sampler:≤10CFU/time
b.Total colony count of the slot sampler:≤5CFU/time
Product protection 1-8CFU/ml(repeat 3times,5min/time)total number of colonies:≤5CFU/time
Cross contamination protection 1-8CFU/ml(repeat 3times,5min/time) total number of colonies:≤5CFU/time
Illumination ≥1000Lux
LED lamp 25W*2pcs
UV lamp 40W*1pc
Applicable number of people 1-3
Wind direction Top in,top out
Supply and exhaust pipe diameter(mm) Φ250
Standard Accessories UV lamp*1pc
LED lamp*2pcs
Waterproof socket*1pc
Filter:ULPA(U15)*2pcs
Exhaust duct-5meters*1pc
Optional Accessories Water valve, Air valve, Armrest, RS232 interface, Waterproof socket
Electricity AC220V, 50/60Hz; 1.5kW
Shipping Weight(kg) about 360
Shipping Dimensions(W*D*H)(mm) 1.1860*880*1800
2.600*500*600
