- Capacity: 26L, 50L,80L, 150L, 190L, 240L
- Temperature Range: RT.+5~55℃
- Humidity Range: ≥90%
- CO2 Range: 0~20%

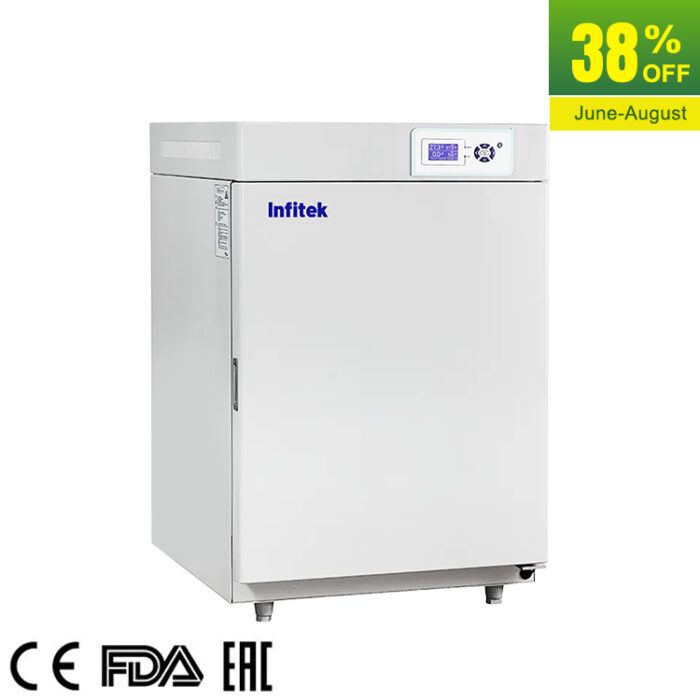

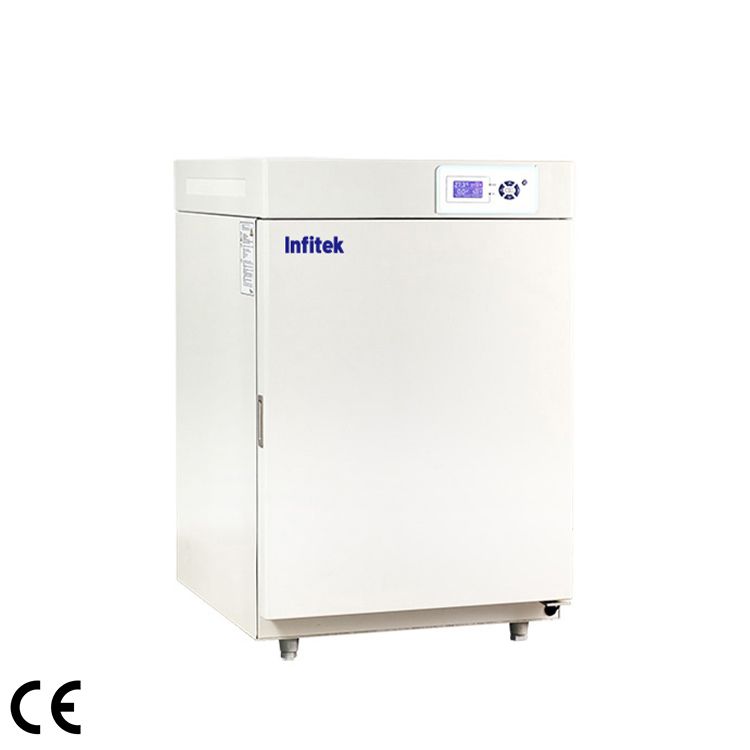

CO2 Incubator, ICB-CO2-H Series, ICB-CO2-W Series
Description
Application
CO2 Incubator is widely used in modern medicine, biology, chemistry and agriculture science for the culture of biological cells, tissues and bacterial.
Features
Faster CO2 concentration restoration speed
If the door needs to be opened frequently during the experiment, infrared sensors are the best choice.
The infrared (IR) sensor has the characteristics of fast monitoring of carbon dioxide gas and is not affected by fluctuations in external temperature and humidity.
Internal circulation system
Adopts high-quality fan, higher ventilation efficiency and better temperature uniformity.
The circulation fan speed can be automatically controlled.
High cleanliness level
The door temperature controller can effectively prevent condensation on the glass door of the incubator and prevent the possibility of microbial contamination caused by condensation water from the glass door.
The CO2 air inlet is equipped with a high-efficiency microbial filter. For particles with a diameter of 0.3μm or greater, the filtration efficiency is as high as 99.99%, effectively filtering bacteria and dust particles in CO2 gas.
With UV sterilization system that can regularly disinfect the inside of chamber.
Humanized design
Two-layer stacking makes full use of laboratory space.
Microcomputer LCD controller, precise and reliable control.
The stainless steel chamber and shelves have semi-circular arc transitions at the four corners, and the shelves brackets can be freely assembled and removed for easy cleaning.
Safety
Independent temperature limit alarm system to ensure safe operation of the experiment.
Low temperature, high temperature and over-temperature alarms.
Alarm for long door opening time.
Specifications
Model | ICB-CO2-50H ICB-CO2-80H | ICB-CO2-150H ICB-CO2-190H | ICB-CO2-240H | ICB-CO2-30W ICB-CO2-80W | ICB-CO2-150W | |
Capacity(L) | 50/80 | 150/190 | 240 | 26/80 | 150 | |
Circulation Mode | Forced convection | |||||
Dimension
(W*D*H) |
Internal (mm) | 400*350*350
400*450*500 |
480*530*610
520*530*690 |
600*630*670 | 290*290*310
400*400*500 |
500*500*650 |
External (mm) | 580*450*730
590*657*870 |
670*710*950
708*710*1030 |
788*837*940 | 440*410*544
550*520*764 |
650*615*914 | |
Temperature | Range (℃) | RT.+5~55 | ||||
Fluctuation (℃) | ±0.2 | ±0.1 | ||||
Resolution (℃) | ±0.1 | |||||
Uniformity (℃) | ±0.3°C | |||||
Recovery | (Door open 30s, recovery to 37℃ ≤ 8min | |||||
Humidity | Range | ≥90% | ||||
Method | Natural vaporization | |||||
CO2 | Range | 0~20% | ||||
Resolution | +0.1% | |||||
Sensor | IR sensor | |||||
Recovery | (Door open 30s, recovery to 5%)≤3min | |||||
Heating Method | Air-jacketed, PID Control | Water-jacketed, PID Control | ||||
Display | LCD | |||||
Material | Internal | 304 Stainless steel | ||||
External | Cold rolled steel | |||||
Shelves(Standard / Max ) | 2/4 | 3/6 | 3/6 | 2/4 | 3/6 | |
Test Hole (mm) | φ25 | |||||
Safety Device | Low temperature, high temperature and over-temperature alarms,
Alarm for long door opening time |
|||||
Sterilization Method | UV Sterilization | |||||
Electricity | Voltage/
Frequency |
AC 220/110V, 50/60Hz | ||||
Consumption (W) | 450/500 | 750 | 950 | 250/680 | 950 | |
N.W./G.W. (kg) | 59/80
64/96 |
83/126
85/134 |
95/148 | 50/65
55/90 |
68/125 | |
Package Dimension (W*D*H)(mm) | 720*670*930
760*720*1060 |
830*840*1250 | 930*910*1220 | 580*560*810 700*670*1010 | 830*780*1070 | |
Optional | 1. HEPA high efficiency filter
2. Humidity display system 3. Printer (Nested) |
