- Capacity(L): 128L
- Temperature range(℃): -150°C~-40°C
- Advanced Cooling System: High performance compressor, reasonable refrigeration layout, more stable refrigerant, faster cooling
- Stable and high precise temperature control: Accuracy up to 0.1℃; Can run smoothly at the lowest temperature for a long time
- Convenient after-sales service: 2 years warranty

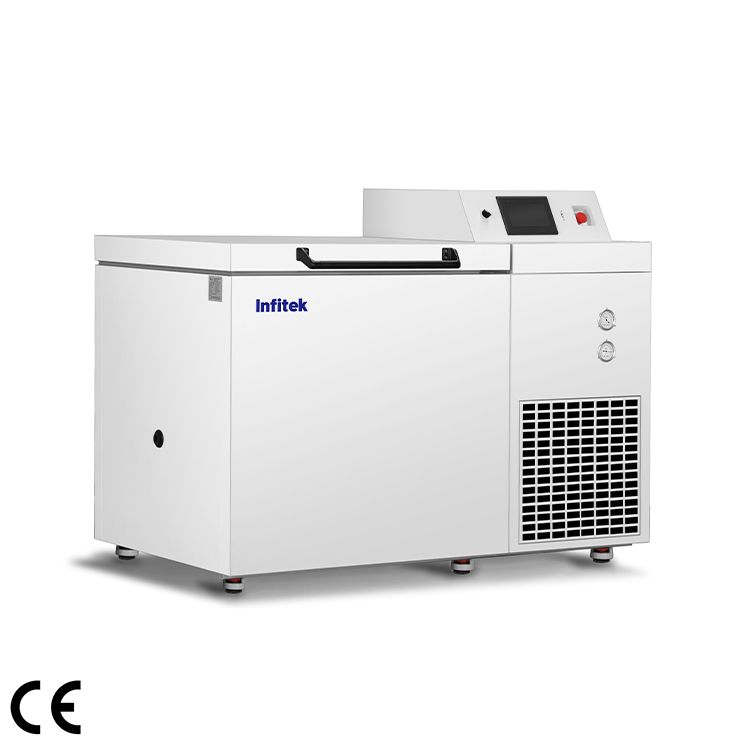

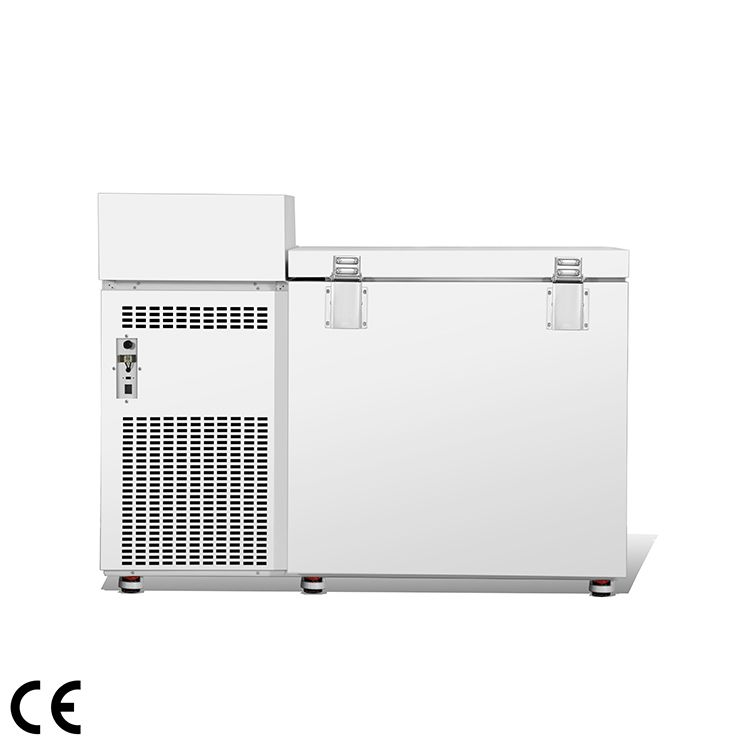

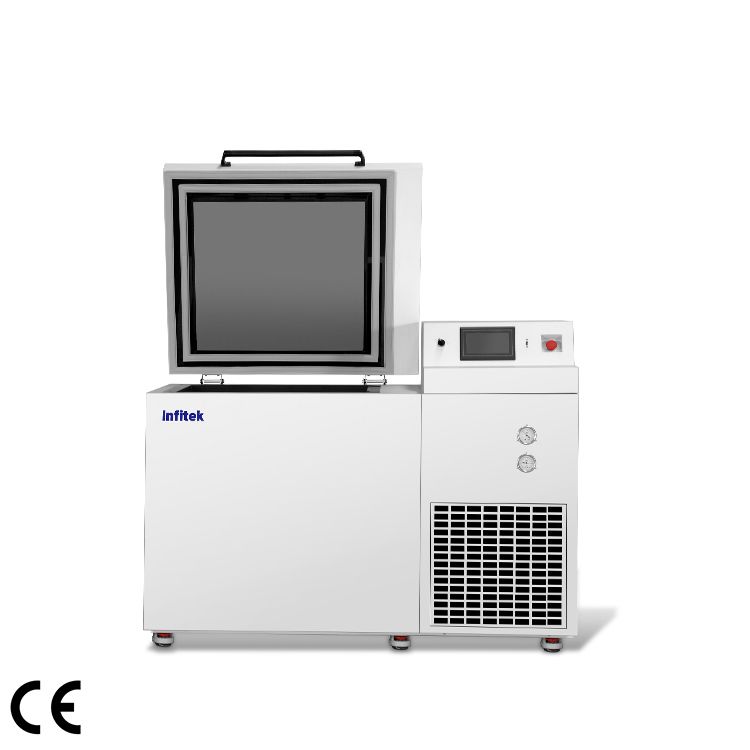

Cryogenic Freezer, -150℃, ULF150-H130
Description
Safety
- Malfunction alarms including high and lowtemperature, power failure, sensor error, clean-filter, and condenser clean, abnormal voltage, low battery thermostat failure.
- Capable of producing two types of alarm outputs,audible buzzer and visible flashing light.
- Door open feature Standardand USB port for temperature date downloading Standard on upright models.
- Remote alarm contacts.
Application
- It is suitable for low temperature test of special materials and preservation of plasma, biological materials, vaccines, reagents, biological products, chemical reagents, strains, biological samples, etc.
Reliability
- 7 inches touch screen to display currenttemp, history temp, all alarm records and data.
- Standardwith USB port to download alarm and temp data.
- Non-flammable HC refrigerant to guarantee users’ safe.
- Emergency stop to protect operator.
Key Features
- Microprocessor-controlled system designed with 1°C increment.
- Settable high temperature and low temperature
- Rapid cooling in 6 hours.
Energy Conservation
- Unique door seal design for the minimumloss of cold temperature during a door opening.
- 200 mm thickness without CFC insulation tominimize cabinet heat gain and to improve temperature stability.
| Model | ULF150-H130 | |
| Capacity | 128L | |
| Dimension (W*D*H) | Internal | 500*450*578mm |
| External | 1560*957*1178mm | |
| Temperature | Range at RT.10~32℃ | -40~-150℃ |
| Sensor | PT100 | |
| Controller | Microprocessor | |
| Cooling System | Refrigerant | Mixed-gas (CFC Free) |
| Defrost | Manual | |
| Compressor (Qty) | TECUMSEH/1 | |
| Display | LCD display | |
| Audible&Visible Alarm | High/Low temperature | Standard |
| High ambient temperature | Standard | |
| Sensor error | Standard | |
| Abnormal voltage | Standard | |
| Low battery | / | |
| Power failure backup system(alarm) | / | |
| Door ajar | / | |
| Material | Internal | Stainless steel, grade 304 |
| External | Electro-galvanized steel with antimicrobial powder coating | |
| Accessories | USB port | Standard |
| Temperature data logger | Optional | |
| Remote alarm port | Standard | |
|
|
|
|
| Test hole (Qty) / Diameter | 1/25mm | |
| Shelves / Drawers (Qty) | / | |
| Sound Emission | 50dB | |
| Electricity | Voltage/Frequency | AC220V, 50Hz |
| Consumption | 3125W | |
| N.W./G.W. | 245/360kg | |
| Shipping Dimension (W*D*H) | 1650*980*1380mm | |
| Category | Title | File type/size | Download |
| Brochure | Brochure – Refrigerator & Freezer | PDF(3 MB) | download |
