- To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
- Number of capillary: 1 , 3
- Linear heating-up rate: 0.1℃~20℃/min

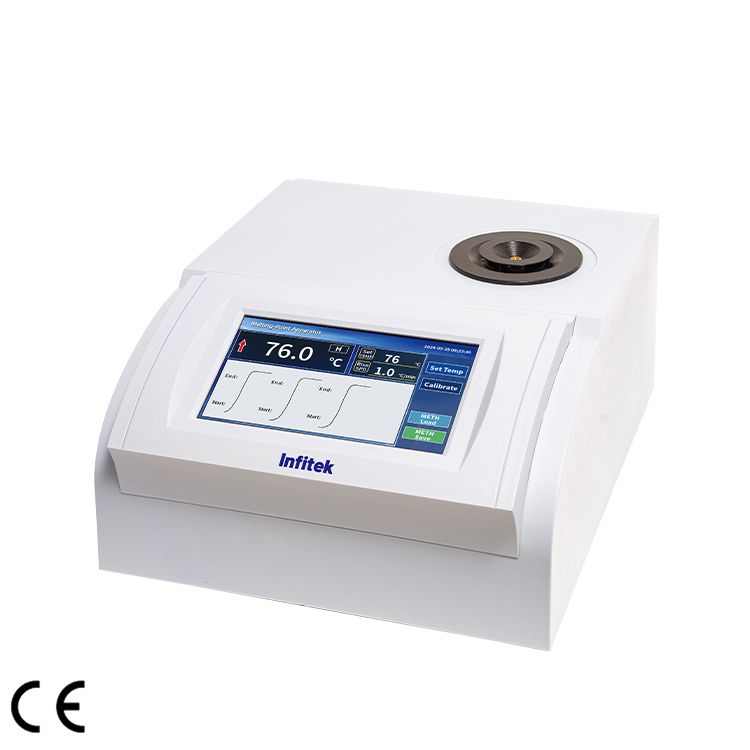

Digital Melting Point Apparatus, MTP-2C/MTP-2A/MTP-2
Description
- To be used in production of medicines, dye-stuffs, perfumes and other organic crystal substances.
- Use PID & PWM to control the temperature.
- Automatically records the melting curve.
- Calculate average value of initial and final melting points automatically.
- Equipped with clock function.
- Can connect to a computer for data transferring.
- Touch Screen.
| Parameters/Model | MTP-2C | MTP-2A | MTP-1C | MTP-1B | MTP-2 |
| Measuring range | RT~360℃ | RT~300℃ | RT～400℃ | RT～320℃ | RT～300℃ |
| Measuring mode | Auto | ||||
| Measuring methods | 8 | ||||
| Resolution | 0.1℃ | ||||
| Linear heating-up rate | 0.1℃/min~20℃/min | ||||
| Accuracy | ≤200℃:±0.4℃;>200℃:±0.7℃ | ||||
| Repeatability | 0.3℃(heating rate:1.0℃/min) | ||||
| Linear heating rate error | ±10% | ||||
| Number of capillary | 3 | 1 | |||
| Capillary dimensions | Outer diameter:φ1.4mm Inner diameter:φ1.0mm Length:90mm | ||||
| Height of sample | 3mm | ||||
| Data storage | 1000 set | / | 1000 set | / | / |
| Display | 7 inch touch LCD | ||||
| Printer(Thermal) | Standard accessory | / | Optional accessory | Optional accessory | / |
| Interface | RS232,USB | ||||
| Power supply | 100~240VAC,50/60Hz,100W | ||||
| Package Dimension | 580mm×445mm×320mm | 500mm×445mm×330mm | |||
| Weight(Gross) | 13kg | 11kg | |||
