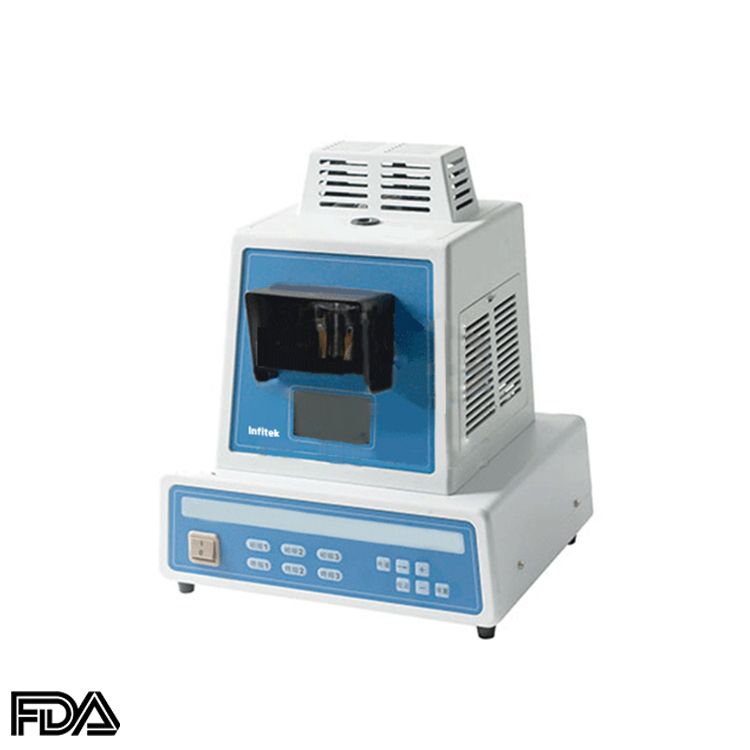

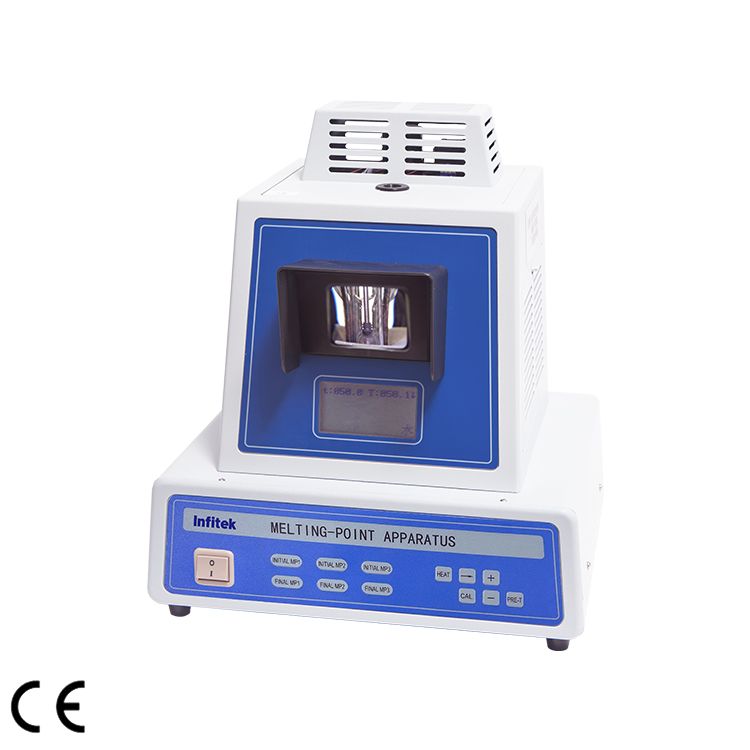

Visual Melting-point Apparatus, MTP-VL

  • Measurement range: R.T.~280℃
  • Number of capillary: 3
  • Heating-conducting medium:Silicon oil
  • Measurement methods: Visual

Share the product


  • To be used to measure the melting point of medicines, dye-stuffsand perfumes and other organic crystal substances to determine their purity.
  • Measurement method is in conformity with the standard of pharmacopoeia.
  • Measuring three samples at the same time and calculate averagevalue of initial and final melting points automatically.


Parameters/Model MTP-VL
Melting-point measurement range R.T.~280℃
Heating-conducting medium Silicon oil
Minimum digital display 0.1℃
Linear heating-up rate 0.5, 1.0, 1.5, 3.0℃/min
Accuracy ≤200℃: ±0.4℃; >200℃: ±0.7
Repeatability (Standard Deviation) 0.3℃ (heating rate: 1.0 ℃/min)
Size of the capillary Φ1.4mm (outside diameter); Φ1.0mm (inside diameter); Length: 120mm
Number of capillary 3
Loading height of the sample 3mm
Interface RS232
Display LCD
Weight (Gross) 13kg
Package Dimension (W*D*H) 410mm×400mm×550mm
