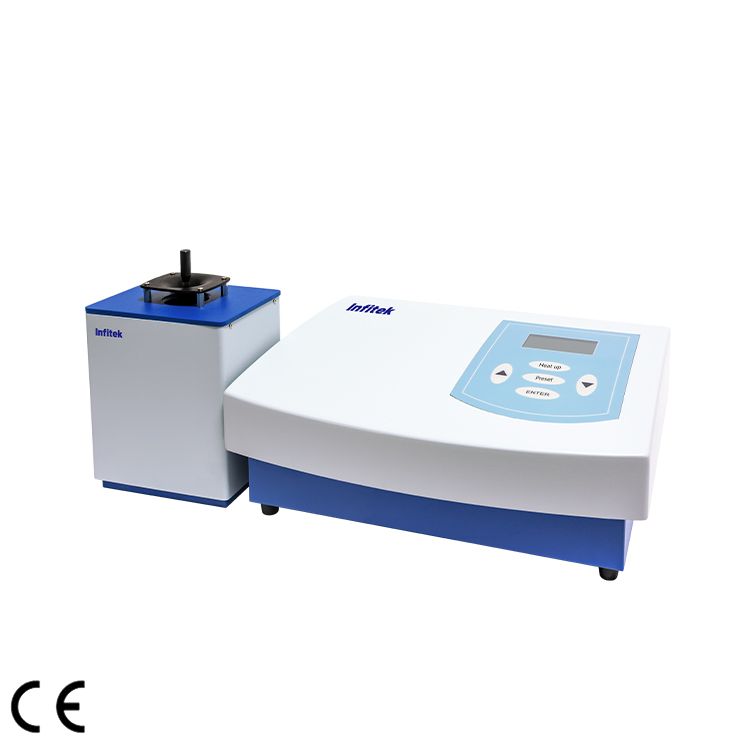

Dropping-point and softening-point apparatus, MTP-DP1

  • Measuring range: R.T.~300℃
  • Minimum digital display: 0.1℃
  • Heating rates: 0.2 – 5.0 ℃/min
  • Measurement methods: Automatic

Share the product


1.Designed according to ASTM D3461-97

2.Measure concentration polymerization degree, refractoriness of amorphousbody highly polymerized compound

3.Photoelectric test, temperature program control, LCD display, high precisionand stable performance

4.Widely used to component control and quality test of tar, asphalt, paraffin,resin, fats, rosin, lubricant, Vaseline, medical ointment, ointment, suppository, edible and grease


Model MTP-DP1
Measuring range Room temperature~300℃
Minimum digital display 0.1℃
Linear heating rates 0.2, 0.5, 1.0, 1.5, 2.0, 3.0, 4.0, 5.0 ℃/min
Furnace temperature ≤200℃±0.5℃; >200℃ ±1℃
The dimension of cup Φ9.9mm (inside diameter), R4.6 ±0.1mm (bottom radius)
Hole size Φ2.80mm (dropping-point), Φ6.35mm (softening-point), Φ5.00mm (user choose)
Ball Lead ball (Φ3mm, 3.2±0.1g, according to ASTM)
Steel ball (3.8”, according to GB2728-1988; 5/6” user choose)
Weight (Gross) 11kg
Overall Dimensions 720mm×370mm×280mm
