- Measurement Range: Room temperature – 400℃
- Number of Capillary: 5, 3
- Measurement Mode: Automatic, Visual (Replay monitoring)
- Compliant with the relevant requirements of the National Pharmacopoeia, GMP, GLP, and FDA/21CFR Part 11

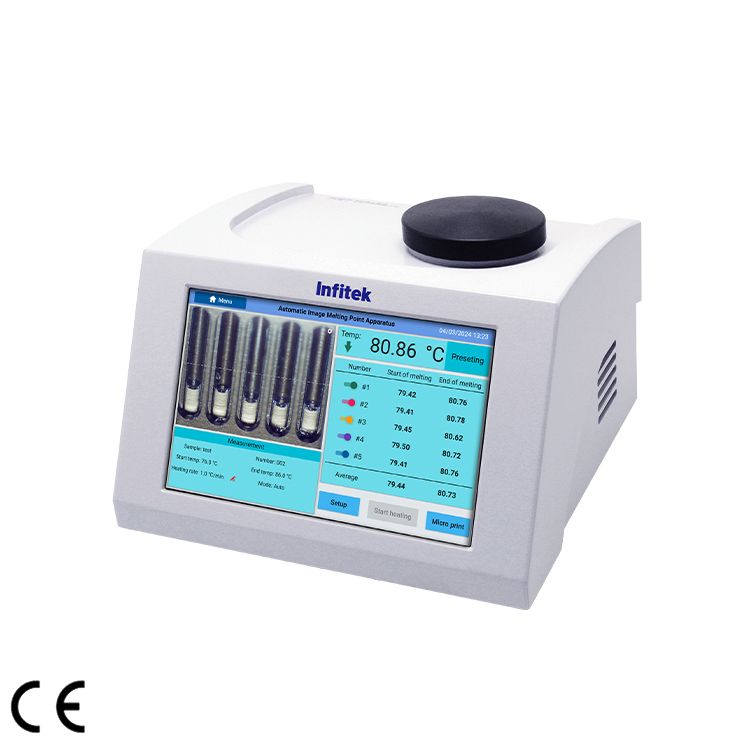

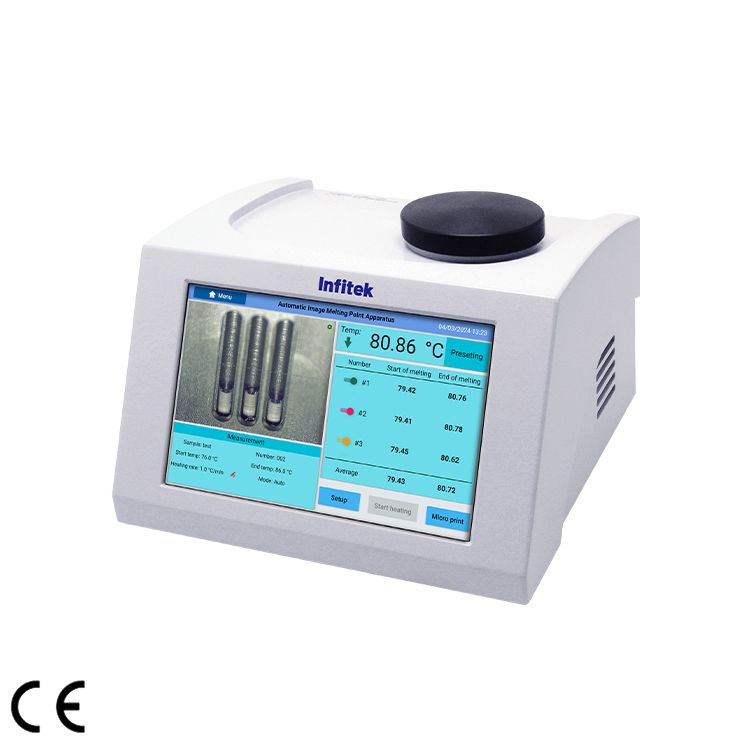

Melting Point Apparatus, MTP-650, MTP-630
Description
- Image processing and analysis, with video recording and playback.
- Android operating system with a large touchscreen.
- Equipped with multi-point calibration function, observing with automatic mode or visual mode.
- Improved accuracy and reliability of melting point measurements.
- It can measure special samples that appear dark or opaque after melting, as well as samples that decompose during heating.
- Compliant with the relevant requirements of the National Pharmacopoeia, GMP, GLP, and FDA/21CFR Part 11.
Specifications
| Model | MTP-650 | MTP-630 |
| Measurement Range | Room temperature – 400℃ | |
| Measurement Mode | Auto/Visual | |
| Pre-stored Measurement Methods | 600 | 400 |
| Number of Users | 300 | 200 |
| Audit Trail | Optional | Optional |
| Electronic Signature | Yes | Yes |
| Resolution | 0.01℃ | |
| Linear Heating Rate | 0.1℃/min~20℃/min | |
| Accuracy | ≤ 200℃±0.3℃; > 200℃±0.5℃ | |
| Repeatability | 0.3℃ (heating rate: 1.0℃/min) | |
| Linear Heating Rate Error | ±5% | |
| Number of Capillary | 5 | 3 |
| Capillary Dimensions | Outer diameter: φ1.4mm; Inner diameter: φ1.0mm;
Length: 90mm; |
|
| Height of Sample | 3mm | |
| Operating System | Android | |
| Data Storage | 128 G | |
| Display | 10.1-inch touchscreen | |
| Interface | 1×RS 232, 3×USB, 1×RJ-45, Wi-Fi | |
| Power Supply | 100V~240VAC, 50Hz/60Hz, 150W | |
| Package Dimension | 495*493*350 mm | |
| Gross Weight | 5kg | |
| Category | Title | File type/size | Download |
| Brochure | Brochure-Melting Point Apparatus | PDF(340 KB) | download |
